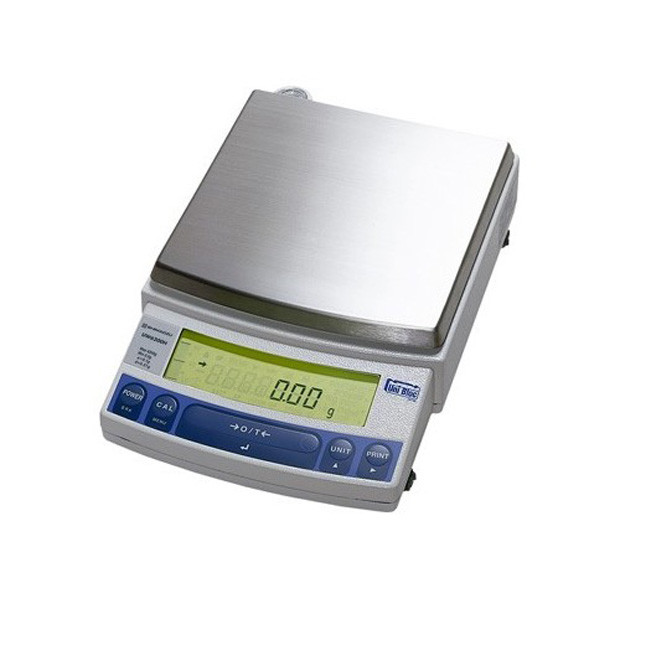

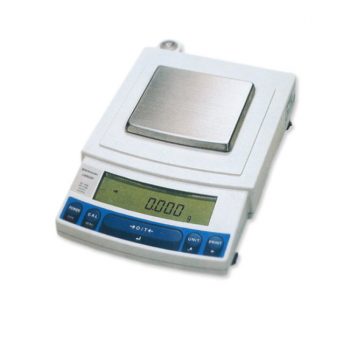

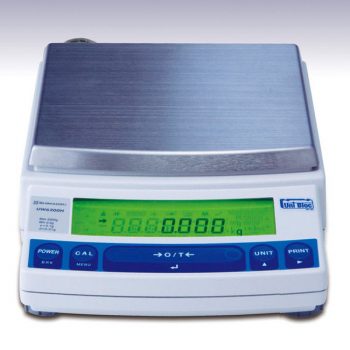

Precision Balance Shimadzu UW/UX Series resolution achieves a minimum display accuracy of 1 mg for 1,020 g.
The large pan easily accommodates samples extending beyond the pan. A built-in weigh-below hook allows weighing even unusually over-sized items.
Features:
- Precision Scale
- Direct touch-key calibration
- GPL/GMP/ISO calibration record
- Standard Below-Weigh Hook option
- Function: TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more
- Counting function with storing sample details
- Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom conversion more than 20 unit in all
- Shimadzu UniBloc sensor technology
- Windows-Direct Communication Function; Very easy that Only a cable is needed to send weighing data to a computer
- Continuous data output function
- LCD display with adjustable contrast and illumination
- Analog Bar Graph Display
- Comparator (Pass/Fail Judgment) with Buzzer Support
- RS232C interface
- Power: AC adaptor (DC12V, 1A )
The new line of Shimadzu top-loading balances are engineered with the innovative UniBloc mechanism which brings superior impact resistance unrivaled quick response, excellent stability and durability at the same time. Powerful features support any imaginable weighing application. UW Series comes with motor-driven built-in calibration weight and fully-automatic calibration functions.
The standard animal-weighing mode allows accurate weighing of moving animals. It also gets the balance ready for the next animal without having to clean the pan each time. An optional animal bucket is available.
The ultra-fast response reduces operator stress and shortens work time. UniBloc technology significantly enhances stability and durability, ensuring reliable weighing results over repeated operations. If a weighing record is required, the standard auto print function can automatically output data each time a weighed sample is placed on the balance. In addition, all settings and functions can be controlled from a computer for compatibility with automated production-line operation.
The stainless-steel pan can be easily removed for washing. The metal housing is resistant to organic solvents. A clear, molded in-use cover is standard.
- Precision Scale
- Available capacities: 4.2 Kg, 6.2 Kg, 8.2 Kg
- Automatic Span Calibration
- GLP/GMP/ISO Calibration Record
- Data Management
- Windows Direct function
- Fast response
- Excellent Durability
- Automatic Touch Key calibration (For UW Models)
- Unit conversion
- Piece Counting function
- Check weighing function

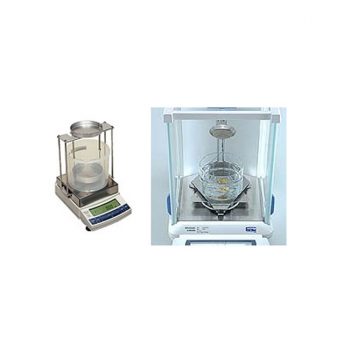

- Specific gravity measurement
- Weigh below hook
- Analog display modes
- LCD with backlight
| Model | UX4200H | UX6200H | UX8200S | |
| Capacity x Readability | 4200 gm
0.01 gm (10 mg) |
6200 gm
0.01 gm (10 mg) |
8200 gm
0.1 gm (100 mg) |
|
| Repeatability | 0.01g | 0.01g | 0.08 | |
| Linearity | ±0.02g | ±0.02g | ±0.1g | |
| Response Time | 1.5 – 2.5 Seconds | 0.7-1.2 Seconds | ||
| Ambient Temperature | 5°C – 40°C 30-85% (No Condensation) | |||
| Temperature Coefficient Sensitivity (ppm/C) | ±3 | ±5 | ||
| Keys | Power, CAL, Zero / Tare, Print, Menu/Enter | |||
| Functions | WindowsDirect GLP/GMP/ISO conformance, Analog display, % display, PCS, User unit, Animal weighing, Specific gravity measurement S/W, Checkweighing | |||
| Display & Size | LCD With Back light Display | |||
| Weight Units | g,mg, kg, ct, ozt, dwt, GN, HK tael, SG tael, TW tael, MTl,m,0,B,S,Ks,Tmom,lb,oz | |||
| Data output | RS232C | |||
| Weight calibration | External | |||
| Power | DC, 10 to 15.5V, 500mA | |||
| Pan Size | 170 x 180 mm | |||
| Pan Dimensions (mm) | 190W×317D×78H | |||
| Product Weight (approx.) | 2.9 Kg | |||
| Warranty | 1 Year | |||
