The Shimadzu BW-K/BX-K Precision Platform balances have been engineered with the innovative UniBloc mechanism, first introduced in 1989. Powerful features support any imaginable weighing application. The BW-K Series includes internal calibration weight.
Features:
- Precision Scale
- Check-weighing and Fill-in functions
- Function: TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more
- Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom conversion more than 20 unit in all
- Shimadzu UniBloc sensor technology
- Windows-Direct Communication Function; Very easy that Only a cable is needed to send weighing data to a computer
- Continuous data output function
- Alpha-numeric menu LCD display with adjustable contrast and illumination
- Tray: Stainless Steel 345 x 250 mm
- RS232C interface
- Power: AC adaptor (DC12V, 1A )
Weighted data can be directly typed into any Windows application without the need for any interface software. If you would like to use Windows Direct with Windows 7, Windows Vista, or USB port, please contact our distributors.
Compact UniBloc sensor lowered the platform, making it easy to load heavy samples. Calibration record with date and time meeting the requirements of the international standards can be readily produced.
- Precision Scale
- Available capacities: 12 & 32 Kg
- Windows Direct function
- Superior durability
- Guaranteed sensitivity
- Selectable weighing modes
- Built-in calibration weight (BW-K Series only)
- Analog display modes
- Full range
- Fill-in
- Check weighing

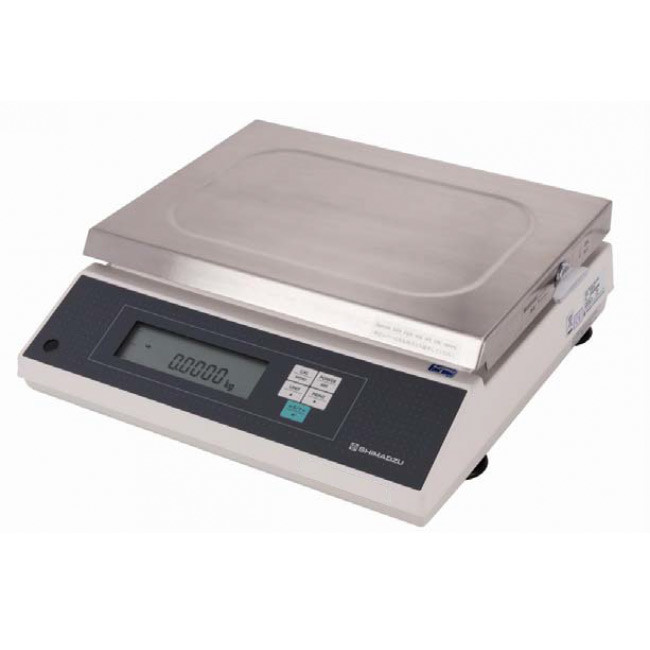

The Shimadzu BX Precision Weighing Scale balances UniBloc sensor mechanism for high capacity weighing. It comes as a heavy duty weighing scale with a very high accuracy and protected by a rugged metal body. Petra ME is precision balances supplier in Dubai and distributor for all types of weighing machines in UAE
| Model | BX12KH | BX32KH | ||
| Capacity x Readability | 12 Kg
0.1 gm |
32 Kg
0.1 gm |
||
| Repeatability | ≤ 0.1 g | ≤ 0.12 g | ||
| Linearity | ±0.2 g | ± 0.2 g | ||
| Response Time | 2.0–2.5 sec | 2.0–2.5 sec | ||
| Ambient Temperature | + 5°C – +40°C | |||
| Temperature Coefficient Sensitivity (ppm/C) | ±3 | ±3 | ||
| Keys | Power, CAL, Zero / Tare, Print, Menu | |||
| Functions | Windows Direct, Clock function, Printout for ISO/GLP/GMP | |||
| Display & Size | LCD With Back light Display | |||
| Weight Units | g, kg, ct, mom, %, pcs, Lb, Oz, Ozt, tl, dwt, GN, t, d | |||
| Data output | RS232, RS I/O | |||
| Weight calibration | External | |||
| Power | DC, 10 to 15.5V, 500mA | |||
| Pan Size | 345(W) × 250(H) | |||
| Pan Dimensions (mm) | 360(W) × 125(D) × 125(H) | |||
| Product Weight (approx.) | 16.5 Kg | 10.5 Kg | ||
