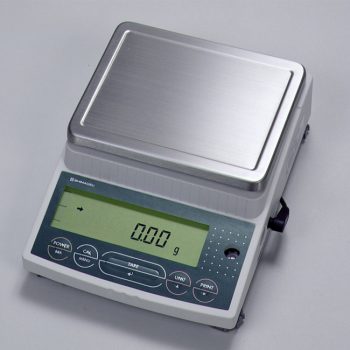

The Shimadzu BL Precision balances are high-resolution weighing scale made affordable. Used as laboratory scale and gold weighing scale. Its a weight measuring instrument that you can trust its result. The Shimadzu BL services also come as density weighing machine with a special kit for that.
Features:
- Precision Scale
- Piece counting Function
- Analog bar display
- LCD display with adjustable contrast and illumination
- Check-weighing and Fill-in functions
- Function: TARE, Zero, Auto Zero, multi weighing units, PCS counting, print, percentage mode
- Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc.
- Continuous data output function
- Tray: Stainless Steel 160×124 mm
- Power Adapter : AC adapter; 90V−264V, -15%−+10%, 50/60Hz
| Model Number | Capacities | Division |
| BL3200H | 3200 gm | 0.01 g |
Very fast response for operator comfort and efficiency. Even if the environmental conditions are not ideal for precision weighing, the high stability mode of BL Series produces steady readings. Offers ease of operation.

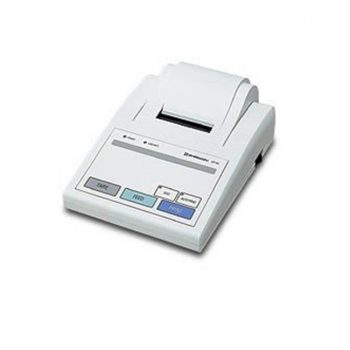

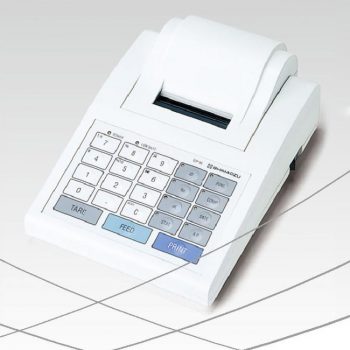

You can buy this scale with its optional thermal receipt printer that makes you able to print reports.
Quantity can be read as soon as parts are placed on the pan. To set, just load ten pieces and press the key. Pressing the key at 20, 50, or 100 pieces will produce even greater precision, especially for smaller parts. Switching between piece counting and gram display is a single key-touch.
- Quick response
- High stability
- Piece Counting function
- Analog Bar Graph Display
- Easy unit conversion
- Equipped with a square pan
| Model | BL3200H |
| Capacity x Readability | 3200g / 0.01 gm |
| Repeatability | σ≤0.01g |
| Linearity | ±0.03g |
| Response Time | 1.0−1.2 sec. |
| Ambient Temperature | + 5°C – +40°C / 41−104°F |
| Temperature Coefficient Sensitivity (ppm/C) | ±5ppm/°C
(10−30°C) |
| Keys | Power, CAL/Menu, Tare / Enter, Print, Unit |
| Functions | Piece Counting, Analog Bar display, Percentage Mode, Unit Conversion |
| Display & Size | LCD |
| Weight Units | g, kg, ct, mom, %, pcs, Lb, Oz, Ozt, tl, dwt, GN, t, d |
| Power | AC adapter; 90V−264V, -15%−+10%, 50/60Hz |
| Pan Size | 160×124 (mm) |
| Standard Accessories | Protective in-use cover |
| Dimensions (mm) | 170W×240D×75H mm |
| Product Weight (approx.) | 2.2 Kg |
