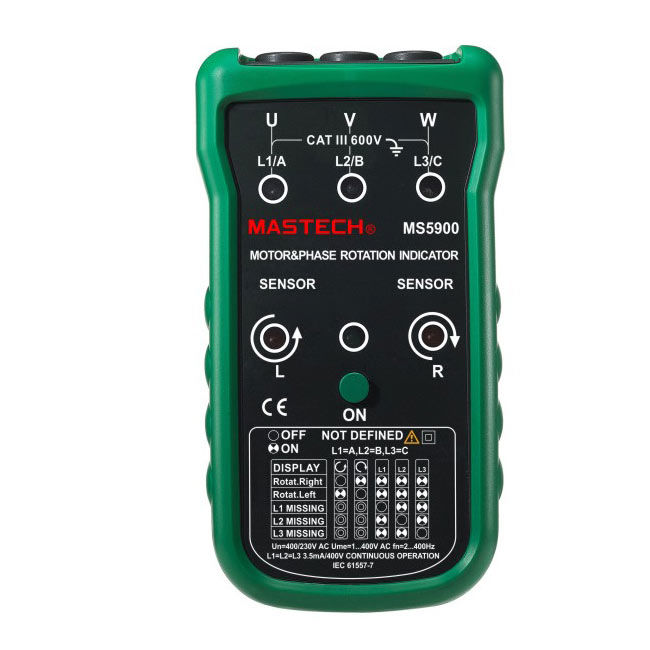

Motor and Phase Rotation Indicator is a handheld, battery-operated instrument designed to detect the rotary field of three-phase systems and determine motor-rotation direction.
Overview:
- Environmental
- Operating Temperature: 0°C to +40°C
- Operating Altitude: 2000m
- Pollution Degree:2
- Mechanical Specifications
- Size: 124*61*27 mm (4.9*24*1.1 in)
- Weight: 150g (0.3lbs)
- Humidity: 15% to 80%
- Safety Specifications
- Electrical Safety: Meets DIN VDE 0411, IEC 61010 DIN, VDE 04 13-7, EN 61557-7, IEC 61557-7
- Maximum Operating Voltage (Ume): 400V AC for all ranges
- Protection Level: CAT III, 600V
- Electrical Specifications
- Battery: 6F22/9V
- Current Consumption: max 20 mA
- Battery Life: minimum 1 year for average use
- Determine Rotary Field Direction
- Nominal Voltage Rotary Direction: 1 to 400V AC
- Nominal Voltage Phase Indication: 120 to 400V AC
- Frequency Range (fn): 2 to 400 Hz
- Test currents (In per phase): less than 3.5mA
- Non-Contact Rotary Field Indication
- Frequency Range (fn): 2 to 100 Hz
- Determine the Motor Connection
- Nominal Test Voltage(Ume): 1 to 400V AC
- Nominal Test Currents (In per phase): less than 3.5mA
- Frequency Range (fn): 2 to 400 Hz2
