AED 263.00

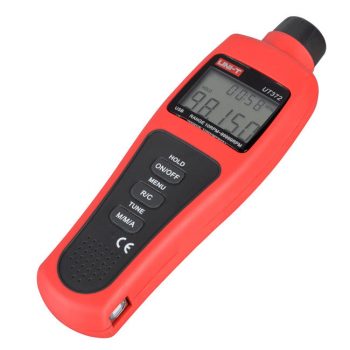

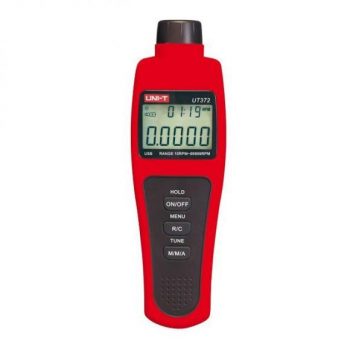

UT370 series photoelectric digital tachometeris of stable performance, safe and reliable. The device circuit design takes the single chip as the core. The photo electric revolving speed sampling & processing and unique appearance design make the device become the tachometer with excellent performance. The tachometer can be used for revolving speed measurement and count. The revolving speed range is from 10 to 99999 r/min. The count range is 0～99999. It is applicable to school, factory, environmental protection agency, lab, research institution and automobile maintenance testing and so on.
| Model Number | Range |
| UT372 | 0 to 99999 RPM |
AED 263.00
UT370 series photoelectric digital tachometeris of stable performance, safe and reliable. The device circuit design takes the single chip as the core. The photo electric revolving speed sampling & processing and unique appearance design make the device become the tachometer with excellent performance. The tachometer can be used for revolving speed measurement and count. The revolving speed range is from 10 to 99999 r/min. The count range is 0～99999. It is applicable to school, factory, environmental protection agency, lab, research institution and automobile maintenance testing and so on.
| Features | ||
| Display Count | 99999 | |
| Data Hold | √ | |
| Auto Power Off | Around 15 Minutes | √ |
| Low Battery Indication | ≤4.8V | √ |
| MAX Mode | √ | |
| MIN Mode | √ | |
| AVG Mode | √ | |
| USB Interface | √ | |
| General Characteristic | ||

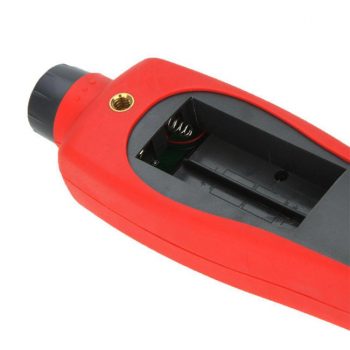

| Power | 1.5V Alkaline Batteries (LR6) X 4 | |
| LCD Size | 53mm X 41mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 100g | |
| Product Size | 184mm X 56mm X 34mm | |

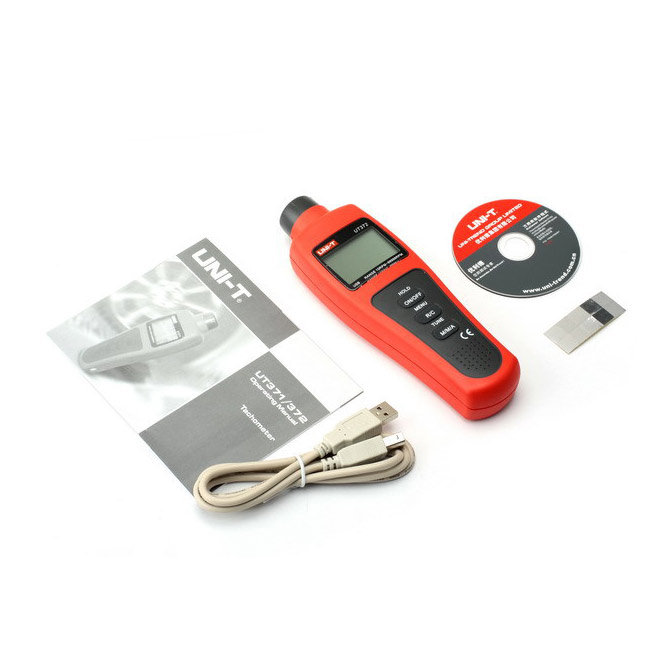

| Standard Accessories | Batteries, Reflecting, USB Interface Cable, PC Software CD | |
| Standard Individual Packing | Blister, English Manual | |
| Standard Quantity Per Carton | 20pcs | |
| Standard Carton Measurement | 420mm X 305mm X 370mm (0.047 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 5kg | |
| Specifications | Range | Best Accuracy |
| Model | UT372 | |
| RPM Range | 10RPM～99RPM | ±(0.03%) |
| 100RPM～999RPM | ±(0.04%＋2) | |
| 1000RPM～9999RPM | ±(0.04%＋2) | |
| 10000RPM～99999RPM | ±(0.04%＋2) | |
| Counts | Range：0～99999 | √ |
| Max.Input Frequency：10KHz,Bandwith:5% | ||
| Target Distance | 50mm～200mm | √ |
