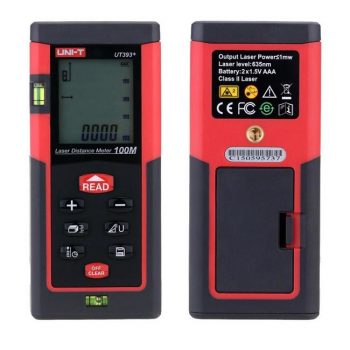

UT393+ is multi-purpose laser distance meter with high precision. It can measure distance, area, and even obtain volume data by using the Pythagorean Theorem. It is portable, reliable, operationally simple and fast. And it is a perfect substitute of traditional measuring tool (tape, steel rule) which can be widely used in construction, decoration, property management, transportation, fire controlling, gardening, city planning, city appearance management, water conservancy testing, and electric power maintenance industries.
| Model Number | Range |
| UT393+ | Range: 100 meter |
UT393+ is multi-purpose laser distance meter with high precision. It can measure distance, area, and even obtain volume data by using the Pythagorean Theorem. It is portable, reliable, operationally simple and fast. And it is a perfect substitute of traditional measuring tool (tape, steel rule) which can be widely used in construction, decoration, property management, transportation, fire controlling, gardening, city planning, city appearance management, water conservancy testing, and electric power maintenance industries.
| Features | |
| Continuous Measurement | √ |
| Area/Volume Calculation | √ |
| Pythagoras Theorem Calculation | √ |
| Add/Subtract | √ |
| Length Add/Subtract | √ |
| Area Add/Subtract | √ |
| Volume Add/Subtract | √ |
| MAX/MIN | √ |
| Lofting test | √ |
| Delay test | √ |
| Extend tail-board | √ |
| Automatic calibration | √ |
| Data Storage | 100 |
| Measurement times per batteries | 8000 |
| Auto laser off | √ |
| Buzzer Indicate | √ |
| Battery Indicator | √ |
| Levelling instrument | √ |
| Auto Power Off | √ |
| Storage Temperature | -20℃ ~ 60℃ |
| Operate Temperature: | 0℃ ~ 40℃ |
| Relative Humidity | RH85% |
General Characteristics
| General Characteristics | |
| Power | AAA 1.5V x 2 |
| Product Color | Red and Gray |
| Product Net Weight | 112g |
| Product Size | 123mm*50mm*28mm |
| Standard Accessories | Reflector panel |
| Standard Individual Packaging | Suction,English Manual ,Batteries,card |
| Standard Quantity Per Carton | 60 PCS |
| Standard Carton Measurement | 535*505*395mm |
| Standard Carton Gross Weight | 16.4kg |
| Specifications | |
| Model | UT393+ |
| Accuracy (m) | ±2mm |
| Measuring Distance (m) | 100m |
| Unit | M/in/ft |
| Laser Class | 635nm,＜1mw,Ⅱ class |
