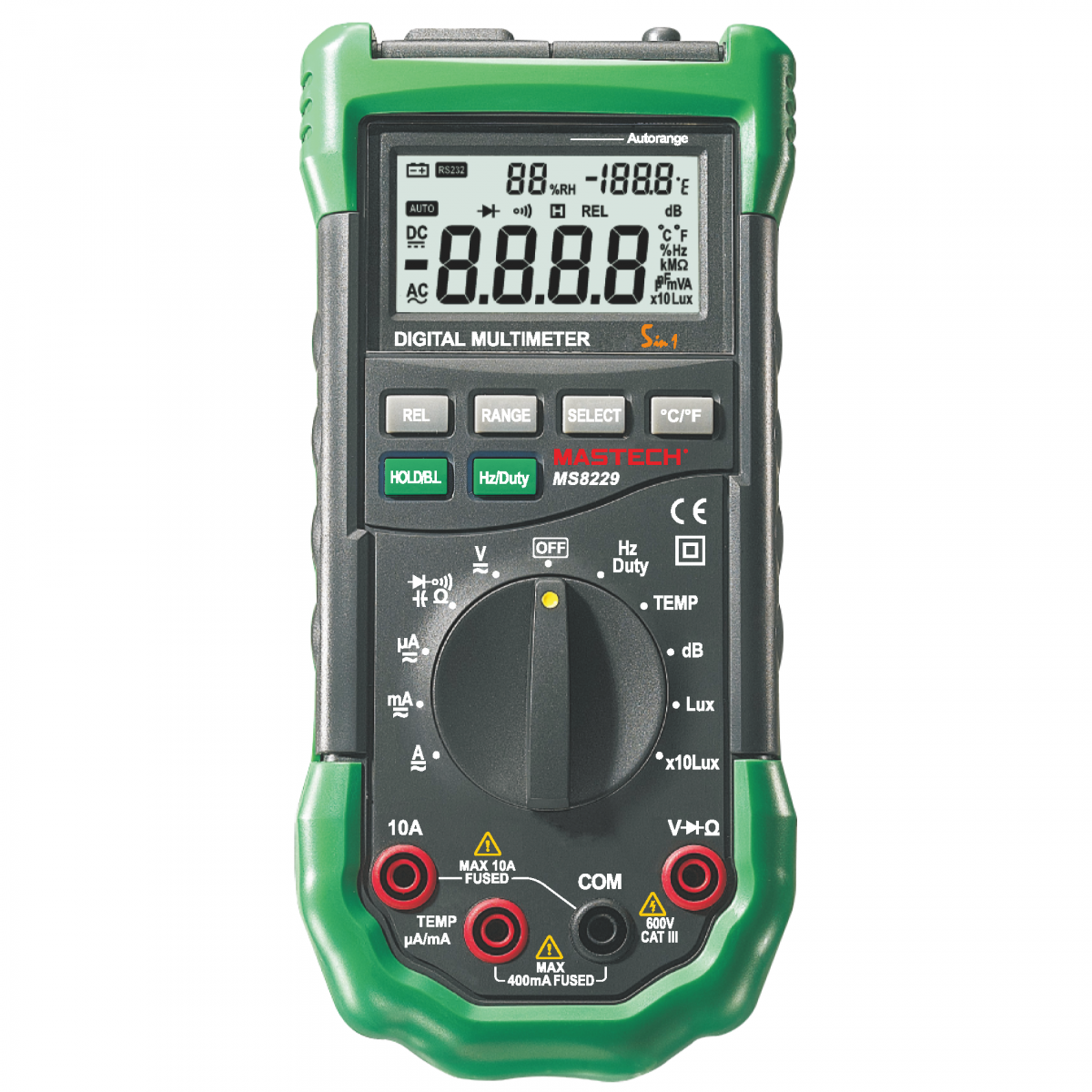

Name: Mastech MS8229 Digital Multimeter
Brand: Petra Mechatronics
SKU: 3505
Price: 270 AED
Availability: InStock
Rating: 5 (1 reviews)

Catalog

AED 270.00

Auto Range Multimeter & Temperature Humidity Light Lux Sound Level Meter Tester 5 in 1 with Back Light

Portable Professional Measuring instruments with large LCD digital display and Back light
Overload protection and low battery indication
light and sound alarm to prevent misconnection of test leads
5 in 1 digital multi-tester
AC/DC voltage and current, resistance,frequency, duty, capacitance, as well as continuity and diode test

Model Number	Range
MS-8229	AC/DC 600 V

AED 270.00

Description
Additional information
Specifications

● Display 4000 Counts
● Auto & Manual Ranging
● Auto Power Off
● ℃/℉ Selection
● Diode Open Voltage 1.5V
● Continuity Buzzer <50±20Ω
● Data Hold
● Low Battery Display
● Display Backlight


Specifications	Range	Resolution	Accuracy
DC Voltage	400mV/4V/40V/400V/600V	0.1mV/1mV/10mV/0.1V/1V	±(0.7%+2)
AC Voltage	400mV/4V/40V/400V	0.1mV/1mV/10mV/0.1V	±(0.8%+3)
AC Voltage	600V	1V	±(1.0%+3)
DC Current	400μA/4000μA/40mA/400mA	0.1μA/1μA/10μA/0.1mA	±(1.2%+3)
DC Current	4A/10A	1mA/10mA	±(2.0%+10)
AC Current	400μA/4000μA/40mA/400mA	0.1μA/1μA/10μA/0.1mA	±(1.5%+5)
AC Current	4A/10A	1mA/10mA	±(3.0%+10)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ	0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ	±(1.2%+2)
Resistance	40MΩ	10kΩ	±(2.0%+5)
Capacitance	40nF/400nF/4μF/40μF/100μF	0.01nF/0.1nF/1nF/10nF/0.1μF	±(3.0%+3)
Frequency	10Hz	0.001Hz	±(2.0%+5)
	100Hz/1000Hz/10kHz	0.01Hz/0.1Hz/1Hz	±(1.5%+5)
	100kHz/200kHz	10Hz/0.1kHz	±(2.0%+5)
	>200kHz	0.1kHz	Reference
Duty Cycle	0.1%~99.9%	0.1%	±(3.0%)
Temperature (K-Type)	-20℃~0℃	1℃	±(5.0%+3)
	1℃~400℃	1℃	±(1.0%+2)
	401℃ ~1000℃	1℃	±(2.0%)
	-4℉~32℉	1℉	±(5.0%+6)
	33℉~752℉	1℉	±(1.0%+4)
	753℉~1832℉	1℉	±(2.0%)
Environment	0℃~40℃	0.1℃	±(2.0℃)
Environment	32℉~104℉	0.1℉	±(4.0℉)
Relative Humidity	20%~95%	0.1%	±(5.0%)
Sound Level	40dB~100dB	0.1dB	±(3.5%)
Luminosity	4000Lux/40000Lux	1 Lux/10 Lux	±(5.0%+10)
