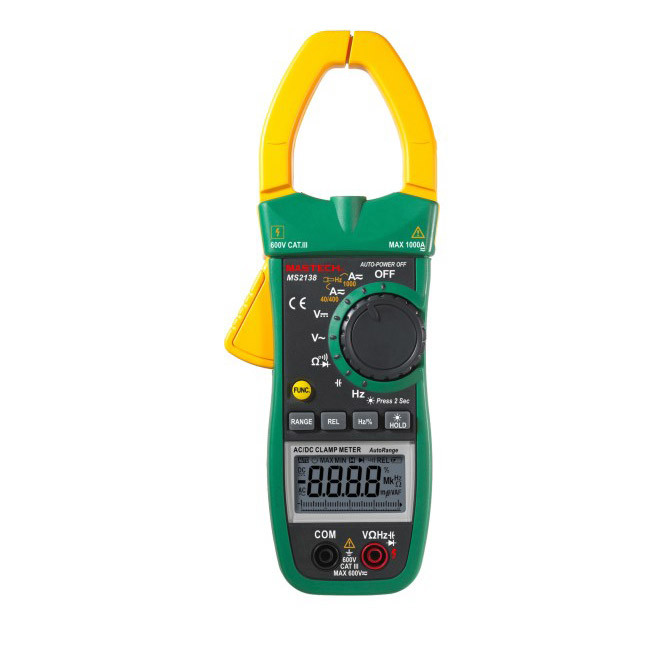

The meter is a handheld 3 1/2 digital clamp meter for measuring DC and DV voltage, AC current, Resistance, Diode and Continuity Test with battery operated.
Overview:
- Auto range and manual range.
- Overrange protection is provided for all ranges.
- Maximum voltage between terminals and earth ground: 600V DC or 600V rms AC
- Operating altitude: max. 2000 meters (7000 ft.)
- Display: 4000 counts with analog bar LCD display
- Maximum value display: 4000 digits
- Polarity indication: automatic; ‘-‘ for negative polarity.
- Overrange indication: ‘0L’ or ‘-0L’
- Converter Rate: 3 times/sec; Bar graph: 30 times/sec.
- Unit indication: function and unit.
- Auto power off time: 15 minute.
- Operating power : 1.5V×3 AAA batteries
- Battery low indication: ‘ ‘ on LCD
- Temperature factor: < 0.1×Accuracy /°C
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -10°C to 50°C (10°F to 122°F)
- Dimension: 225×86×33mm
- Weight: approximate 320g(including batteries)
- Safety rating: CAT.III 600V RoHS
- Work Light
- Segment Bar Graph
- True Root Mean Square
