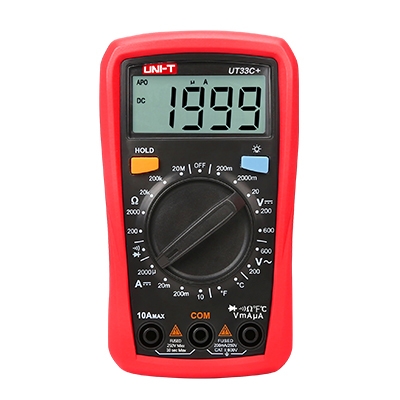

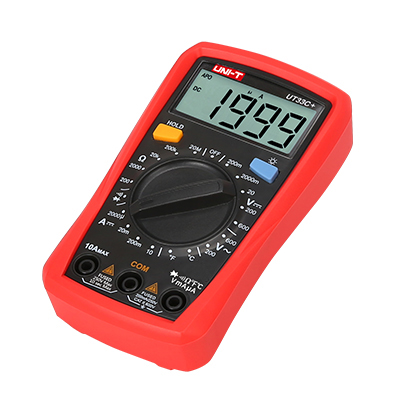

UT33C+ Palm Size Multimeter

Call for price

[posbadges]

Uni-T Part no. : UT33C+

GET QUOTATION

Brand:

UT33C+ Palm Size Multimeter

Call for price

[posbadges]

Uni-T Part no. : UT33C+

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

Features

  • Clear LCD display

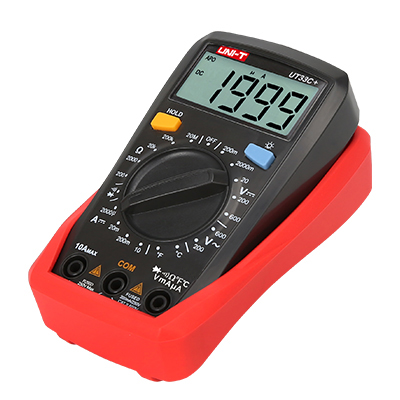

  • Comfortable protective cover, with test lead hanging groove
  • 2 meters drop test, precision protection
  • Loud buzzer sound; Ergonomic design

Specifications

Specifications Range UT33C+
DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%+2)
AC voltage (V) 200V/600V ±(1.2%+3)
DC current (A) 2000μA/20mA/200mA/10A ±(1%+2)
Resistance (Ω) 200Ω/2kΩ/20kΩ
/200kΩ/20MΩ
±(0.8%+2)
Temperature -40℃~1000℃ ±(1%+4)
-40℉~1832℉ ±(1.5%+5)
Features
Display count 2000
Auto power off/Auto backlight off
Diode test/Continuity buzzer
2m drop test/ Test probe holder
Range selection Manual
General Characteristics
Power 1.5V battery (R03) x 2
Display 66mm x 51mm
Product net weight Red and grey
Product color 206g (batteries included)
Product size 134mm x 77mm x 47mm

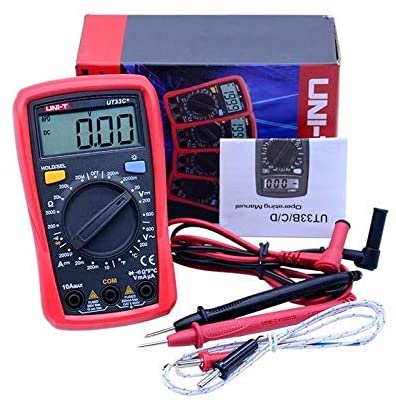

Standard accessories Batteries, test leads, K-type thermocouple
Standard individual packing Gift box, English manual
Standard quantity per carton 60pcs
Standard carton measurement 640mm x 310mm x 350mm
Standard carton gross weight 20.6kg



More about the UT33+Series

The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).

Additional information

Model

UT33C+
