Brand:

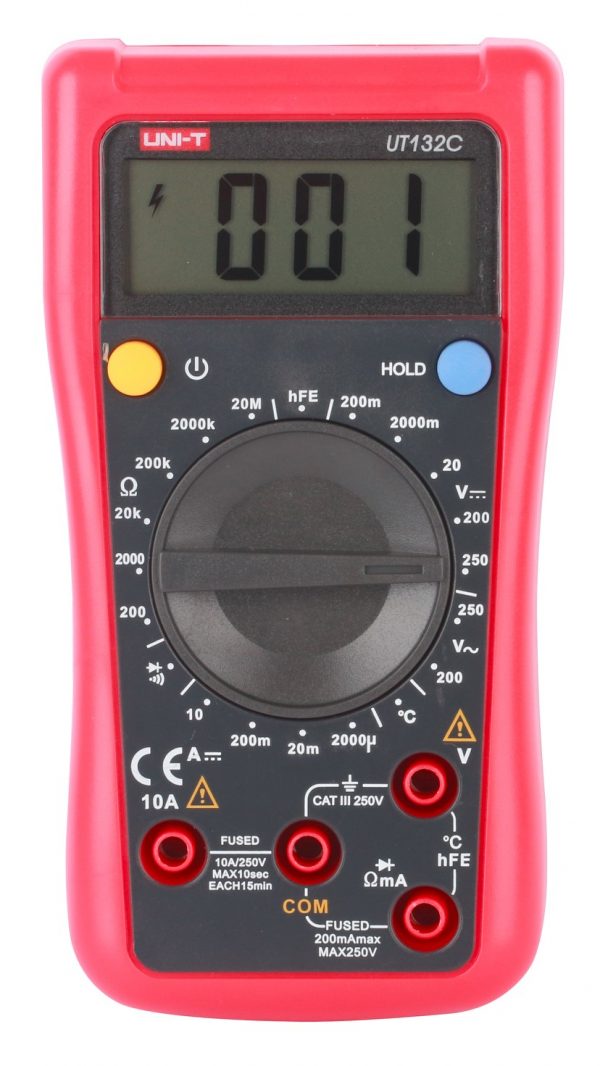

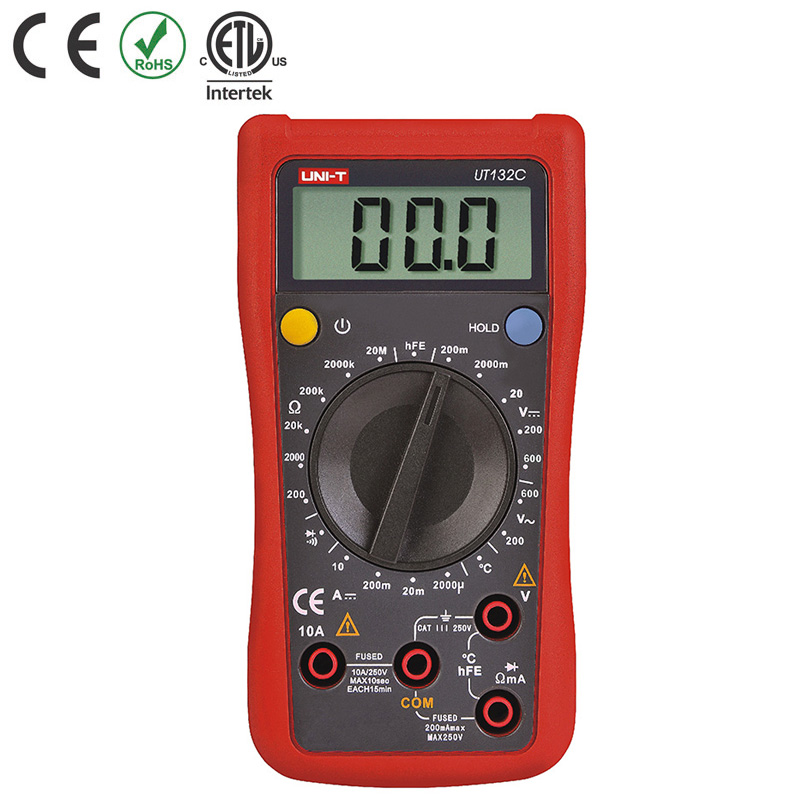

UT132C Palm Size Digital Multimeter

Call for price

[posbadges]

UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.

GET QUOTATION

Brand:

UT132C Palm Size Digital Multimeter

Call for price

[posbadges]

UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.

Specifications

Specifications Range Best Accuracy
Model   UT132C
DC Voltage (V) EU: 200mV/ 2000mV/ 20V/ 200V/ 600V ±(0.5%+2)
ROW: 200mV/ 2000mV/ 20V/ 200V/ 250V ±(0.5%+2)
AC Voltage (V) EU: 200V/600V ±(1.2%+3)
ROW: 200V/250V ±(1.2%+3)
DC Current (A) 2000μA/ 20mA/ 200mA/10A ±(1%+2)
Resistance (Ω) 200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 2000kΩ/ 20MΩ ±(1.2%+3)
Temperature (°C) -40 °C ~ 1000°C ±(1.0%+3)
Features
Display Count 2000
Manual Range
Diode
Transistor
Continuity Buzzer
Low Battery Indication
Data Hold
Input Impedance for DCV Around 10MΩ
General Characteristic
Power 9V Battery (6F22)
LCD Size 49mm x 18mm
Product Color Red and grey
Product Net Weight 200g
Product Size 72mm × 137mm × 35mm
Standard Accessories Battery, test lead, multi-purpose socket, point contact temperature probe
Standard Individual Packing Gift box, English manual
Standard Quantity Per Carton 66pcs
Standard Carton Measurement 595mm × 360mm × 420mm (0.09CBM per standard carton)
Standard Carton Gross Weight 25.7kg
