Brand: Uni-T
Categories: Electrical Meters, Measuring Instruments
Call for price

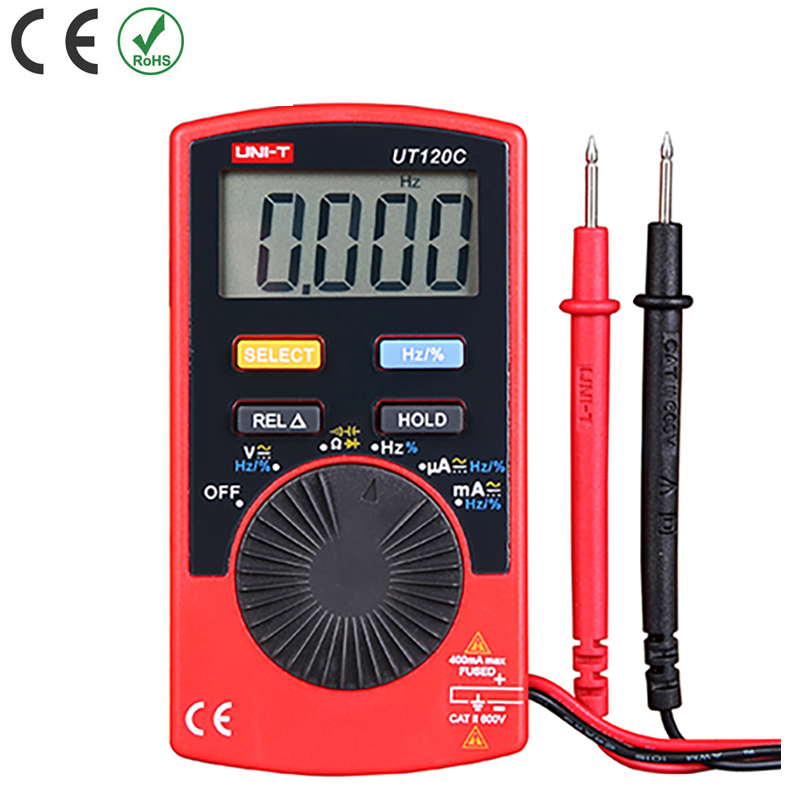

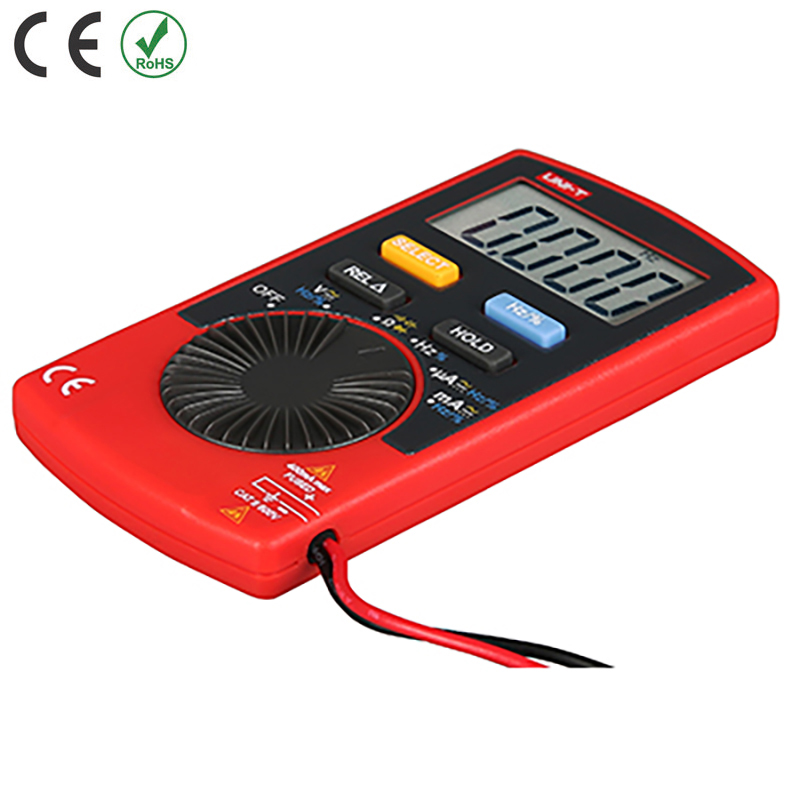

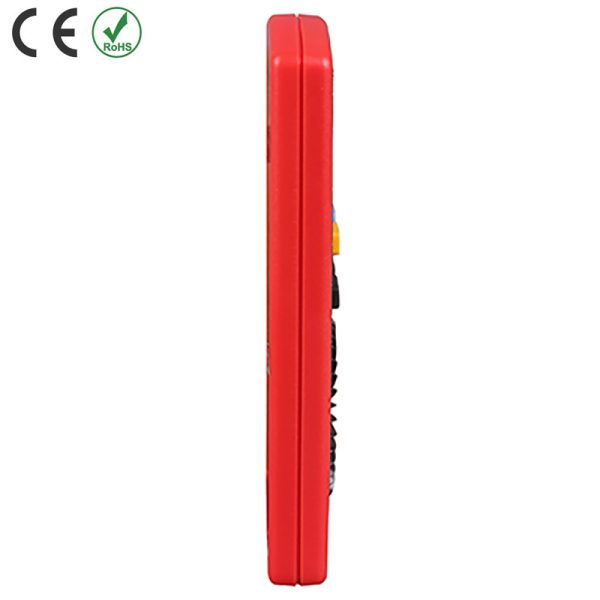

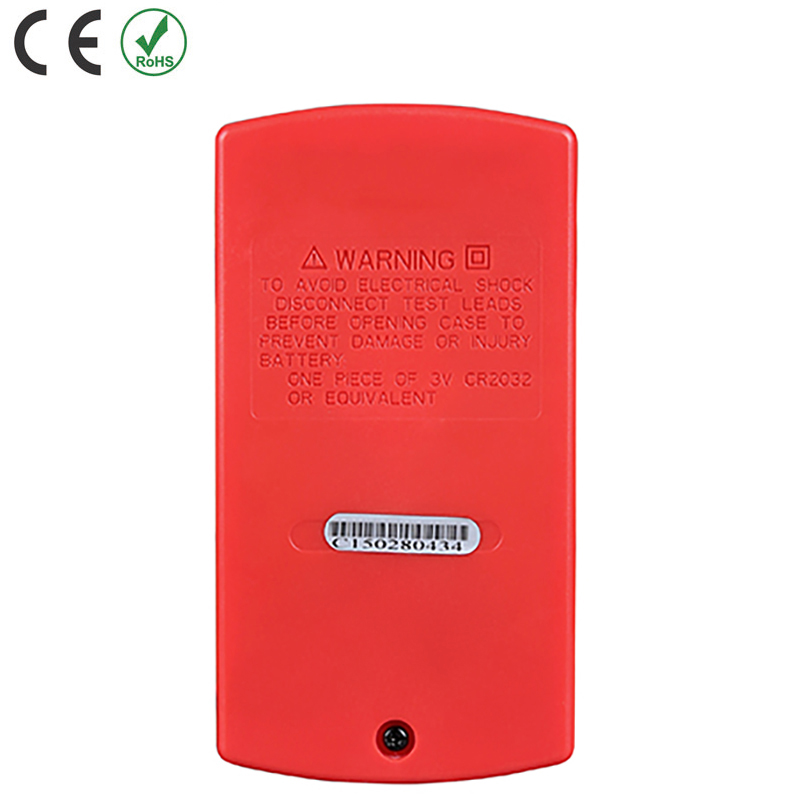

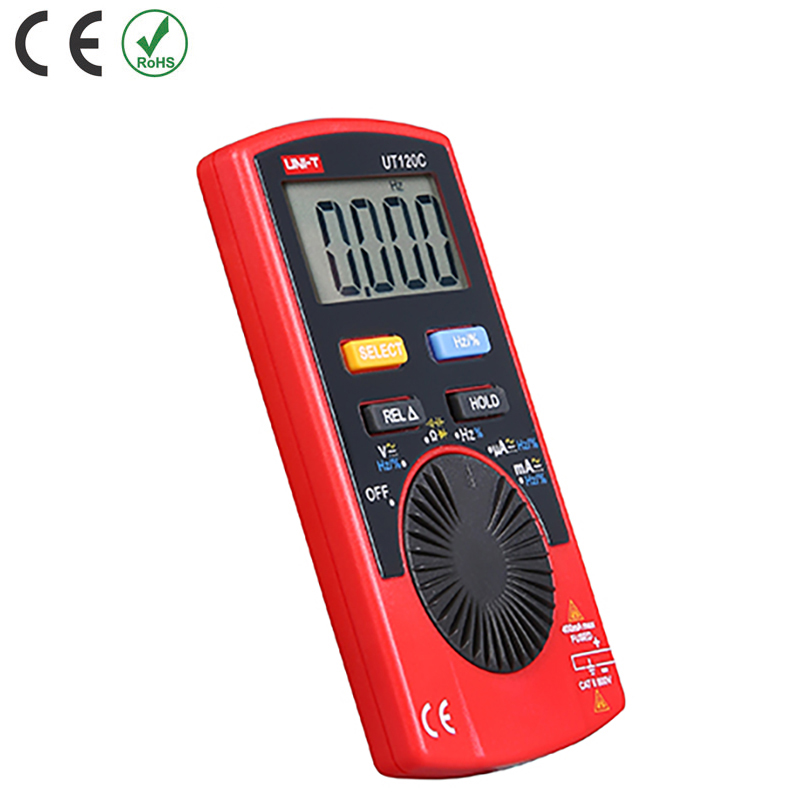

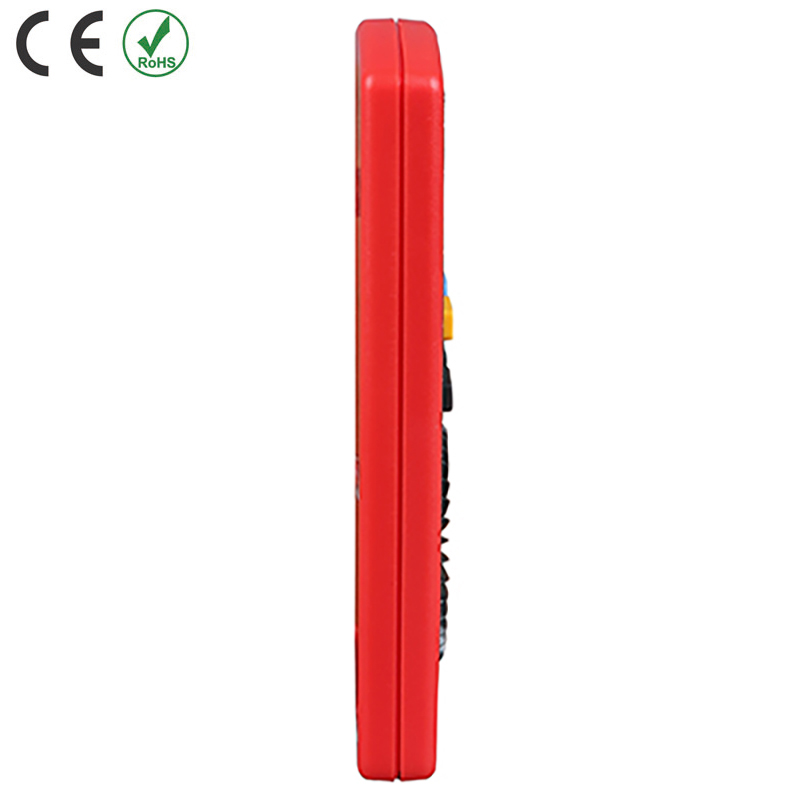

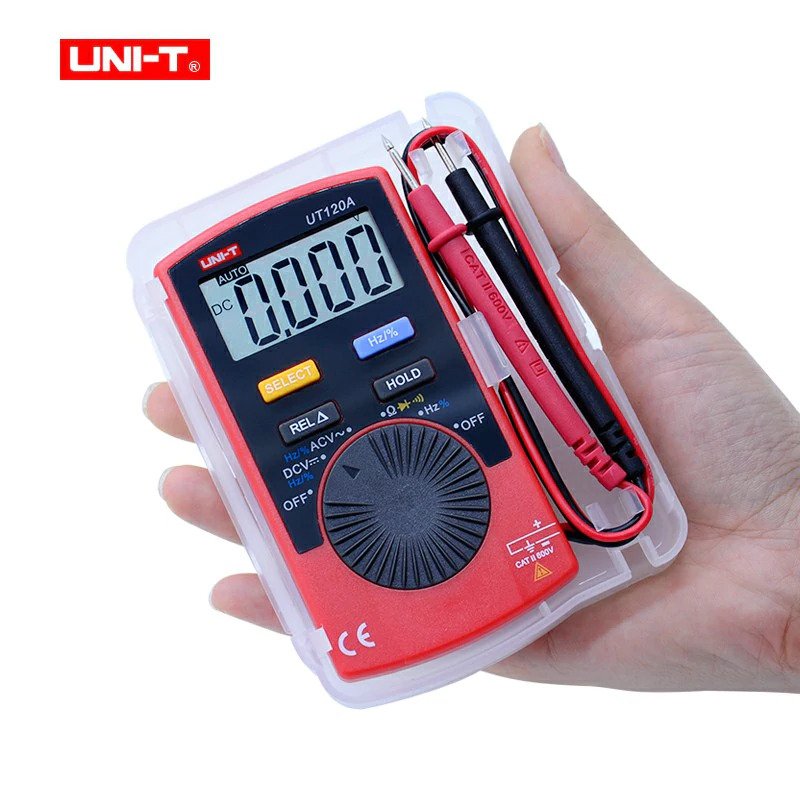

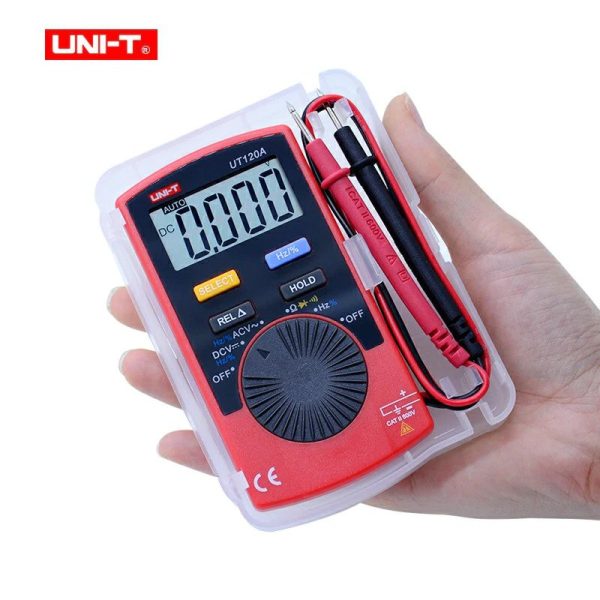

UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
Brand: Uni-T
Categories: Electrical Meters, Measuring Instruments
Call for price
UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
| Specifications | Range | UT120C |
| DC voltage (V) | 600V | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) |
| DC current (A) | 400mA | ±(1%+3) |
| AC current (A) | 400mA | ±(1.5%+5) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+3) |
| Frequency (Hz) | 100kHz | ±(0.5%+3) |
| Features | ||
| Display count | 4000 | |
| Auto range | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto power off | Around 30 minutes | √ |
| Continuity buzzer | √ | |
| Low battery indication | ≤2.4V | √ |
| Data hold | √ | |
| Relative mode | √ | |
| Input impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 3V battery (CR2032) | |
| Display | 43mm x 22mm | |
| Product color | Red and grey | |
| Product net weight | 76g | |
| Product size | 110mm x 58.2mm x 10.8mm | |
| Standard accessories | Battery, carrying case | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 100pcs | |
| Standard carton measurement | 750mm x 275mm x 490mm (0.1CBM per export carton) | |
| Standard carton gross weight | 20kg | |
