Brand: Uni-T
Categories: Infrared Thermometer, Measuring Instruments
Call for price
Brand: Uni-T
Categories: Infrared Thermometer, Measuring Instruments
Call for price

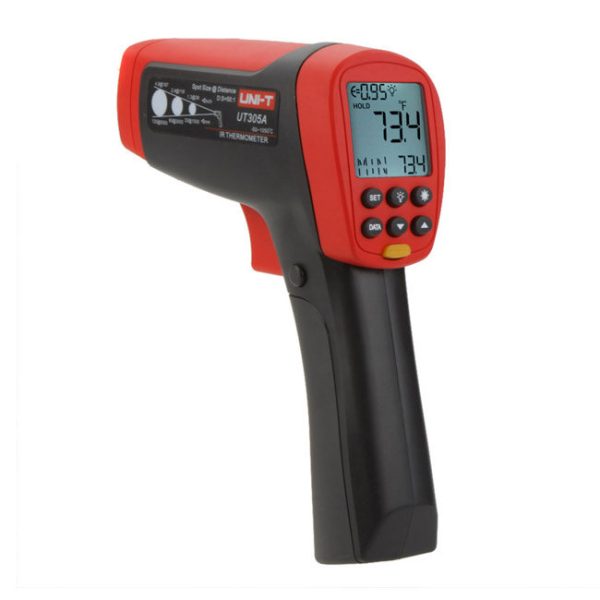

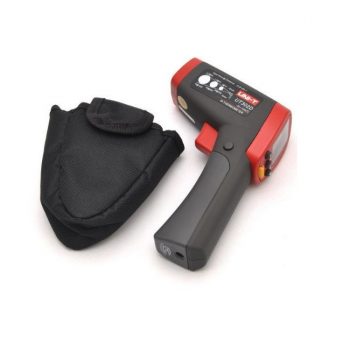

UT302D series is a professional non-contact infrared thermometer that can determine the temperature by testing the infrared energy on the surface. It is used for fast and safe fault detections and maintenance of electric instrument and equipment, engines, motors, and HVAC refrigeration system.
UT302D series is a professional non-contact infrared thermometer that can determine the temperature by testing the infrared energy on the surface. It is used for fast and safe fault detections and maintenance of electric instrument and equipment, engines, motors, and HVAC refrigeration system.
| Features | |
| °C/°F Selection | √ |
| Laser Switch | √ |
| Display Hold （s) | 8 Seconds |
| Data Hold | √ |
| Auto Power Off | √ |
| Low Battery Indication | √ |
| MAX Mode | √ |
| MIN Mode | √ |
| DIFF Mode | √ |
| AVG Mode | √ |
| LCD Backlight | √ |
| Electricity Cut-off Memory | √ |
| Tripod Mount | √ |
| General Characteristic | |
| Power | 9V Battery (6F22) |
| LCD Size | 32mm X 29mm |
| Product Color | Red and Grey |
| Product Net Weight | 322g |
| Product Size | 169mm X 138mm X 53mm |
| Standard Accessories | Battery, Carrying Bag, USB Cable (External Power) |

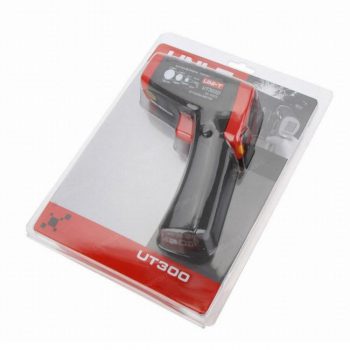

| Standard Individual Packing | Blister, English Manual |
| Standard Quantity Per Carton | 20pcs |
| Standard Carton Measurement | 628mm X 345mm X 468mm (0.101 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 13kg |
| Specifications | Range |
| Model | UT302D |
| Temperature Range | -32°C～1050°C |
| -26°F～1922°F | |
| Accuracy | ±1.8°C or ±1.8% |
| Repeatability | ±0.5°C or ±0.5% |
| Resolution | 0.1°C/0.1°F |
| Distance to Spot Size | 20：1 |
| Response Time | 250mS (95% of reading) |
| Emissivity | 0.10～1.0 Adjustable |
| Laser Type | Class 2 (Ⅱ) |
| Laser Power | ＜1mW |
| Laser Wavelength | 630nm～670nm |
| Spectral Response | 8μm～14μm |
| SIZE | '-32°C ~1050°C |
|---|---|
| MODEL | UT302D |
