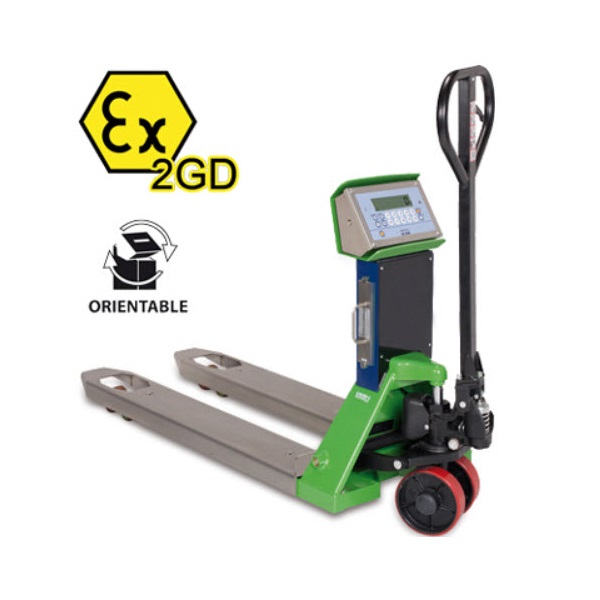

Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X.

The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions. Manufactured, calibrated and adjusted in Italy by Dini Argeo.

Maximum lifting capacity: 2500 kg.
Accuracy: +/- 0.05% of the maximum capacity.
Fork dimensions 1150 x 550 x 85 mm
Standard fitted with +/-160° swivelling column head.
Atex certified, 4 stainless steel IP68 shear-beam load cells.
Indicator with easy to clean satin finish stainless steel case with IP68 enclosure

GET QUOTATION

Brand: Dini Argeo

TPW EX 2GD “HAZARDOUS ZONE” series Pallet Truck Scale ATEX – Dini Argeo

Categories: ATEX, Pallet Jack and Forklift

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X.

The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions. Manufactured, calibrated and adjusted in Italy by Dini Argeo.

Maximum lifting capacity: 2500 kg.
Accuracy: +/- 0.05% of the maximum capacity.
Fork dimensions 1150 x 550 x 85 mm
Standard fitted with +/-160° swivelling column head.
Atex certified, 4 stainless steel IP68 shear-beam load cells.
Indicator with easy to clean satin finish stainless steel case with IP68 enclosure

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Mobile and Portable Scales, Movable

GET QUOTATION

[woocommerce_variations_table]

Maximum lifting capacity: 2500 kg.
Accuracy: +/- 0.05% of the maximum capacity.
Fork dimensions 1150 x 550 x 85 mm.
Weighs about 125 kg.
Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
Standard fitted with +/-160° swivelling column head.
Steering wheels and double loading rollers with a poliurethane coating.
Atex certified, 4 stainless steel IP68 shear-beam load cells.
Indicator with easy to clean satin finish stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.
Calibration and Set-Up parameters configurable from keyboard.
Power supply through extractable battery, rechargeable in safe zone.
150-hour approximate operating time.
Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
FUNCTIONS: Zeroing, Tare, High Resolution Weighing x 10, Net/Gross or lb/kg conversion, Weighs accumulation, Formulation, Counting, Hold.

Additional information

Scale Capacity Range (Platform)	1,500-3,000 kg (1.5-3 ton)
Model	TPWX2GD20-1, TPWX2GD25-1
Weighing Scale Capacity	2 Ton, 2.5 Ton
Scale Division	500g (0.5kg)
Capacity / Division	2 ton / 1 kg, 2.5 ton / 1 kg
