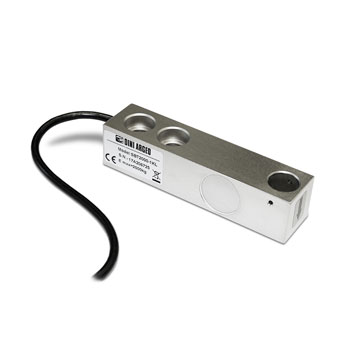

“SBT-1KL” Series Shear Beam Nickel-Plated Load Cells, From 500kg To 2500kg

Categories: Shear Beam Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Dini Argeo nickel-plated approved load cells, with low-power 1000 Ohm output resistance for mobile battery applications.
The measures are compatible with the main shear beam load cells present on the market. They are suitable for creating CE-M approved scales with 4 load cells or for weighing conveyors, tanks and hoppers, thanks to their accessories.

CAPACITIES (kg): 500, 1000, 2000, 2500.
OIML R60 approved, NTEP, ATEX 3GD.
Nickel-plated steel. IP67 protection.
Output Resistance 1000 Ohm.

GET QUOTATION

Brand: Dini Argeo

“SBT-1KL” Series Shear Beam Nickel-Plated Load Cells, From 500kg To 2500kg

Categories: Shear Beam Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

CAPACITIES (kg): 500, 1000, 2000, 2500.
OIML R60 approved, NTEP, ATEX 3GD.
Nickel-plated steel. IP67 protection.
Output Resistance 1000 Ohm.

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

MAIN FEATURES

C3 PRECISION CLASS
NICKEL-PLATED CONSTRUCTION
POTTED SEAL, IP67 PROTECTION
MAX. CAPACITIES FROM 500 TO 2500 kg
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval Vmin = EMax / 10.000
Maximum number of verification intervals nLC = 3000
Combined error 0,017% of Full Scale Output (F.S.)
Nonlinearity ± 0.02% FS
Hysteresis ± 0.02% FS
Repeatability ± 0.01% FS
Full Scale Output 2mV/V ± 0.5%
Zero balance ± 1% FS
Compensated Temperature Range -10°C/+50°C.
Operating Temperature Range -20°C/+60°C.
Creep error after 30 minutes <0,02% F.S. Maximum tolerated excitation voltage 15 Vdc Input Resistance 1085 ± 10 Ohm Output
Resistance 1000 ± 5 Ohm Insulation Resistance >5000 MOhm
Safe Overload 120% F.S.
Ultimate Overload 300% F.S.
6-wire shielded cable, 3,5m long, 5 mm diameter
