MSI-8004HD Indicator and RF LED Remote Display

Call for price

[posbadges]
  • IP65 rugged milled aluminum enclosure
  • Backlit membrane keypad for user functioning and controls
  • Tilt bracket included
  • NTEP certified configuration



Options

  • Expanded relay outputs
  • Battery pack for mobile operation
  • Second radio module for additional network connectivity
GET QUOTATION

Brand:

MSI-8004HD Indicator and RF LED Remote Display

Call for price

[posbadges]
  • IP65 rugged milled aluminum enclosure
  • Backlit membrane keypad for user functioning and controls
  • Tilt bracket included
  • NTEP certified configuration



Options

  • Expanded relay outputs
  • Battery pack for mobile operation
  • Second radio module for additional network connectivity
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

High-visibility, LED Overhead Weighing Controller

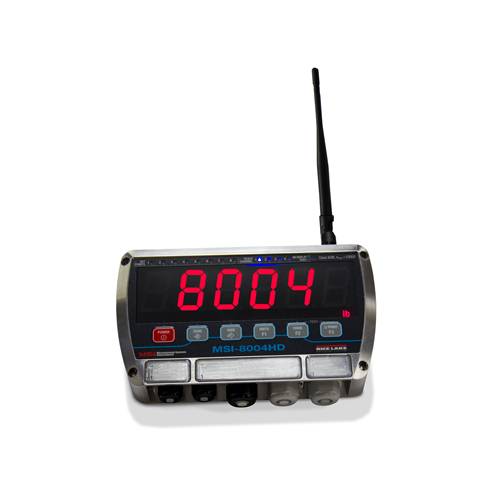

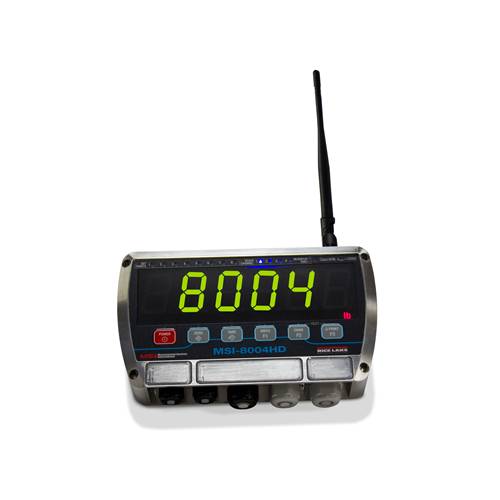

The MSI-8004HD has all of the heavy duty versatility of the MSI-8000HD with the added benefi t of extreme high visibility in indoor and outdoor applications. The MSI-8004HD features 1.5-inch high characters on its LED display. The display is available in either red/green or blue, allowing the controller to be clearly visible in many environments. The red/green display can be configured to change color based on weight and setpoint conditions, making the MSI-8004HD a natural fit for safety-critical industrial applications.

The milled anodized aluminum, IP65-rated enclosure is mountable in either a direct panel mount or included tilt stand. The MSI-8004HD is highly adaptable for integration with overhead crane weighing systems, providing visibility for crane cab and fl oor operators. The MSI-8004HD is compatible with all MSI-ScaleCore™ crane scales, dynamometers and TranSend™ systems. The meter version can also be used with any standard load cell or scale base, supporting up to four independent measurement channels.



Rugged Communication

Wi-Fi, Bluetooth® or serial RF options are available for direct connections to networks and computers. The MSI-8004HD includes user-defi nable function keys, and optional relays for safety, operator interfaces and process work flow. The MSI-8004HD meter can also be a functional weigh controller with the inclusion of a precision, four-channel multi-deck 24-bit A/D.



MSI-8004HD Indicator/RF Remote Display Specifications

Display:
Six-digit, 1.5 in (38 mm) LED display with red/green coloringEnclosure:
NEMA Type 4, IP65 milled anodized aluminum

Keypad:
On/Off, Zero, Tare, Print and two user-defined keys

Functions:
Peak hold, high resolution, total, view total, net/gross, units switching

Units:
Pounds, kilograms, tons, metric tons, kilonewtons

Annunciators:
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs

Channels:
1, 2, 3, 4, TTL

Power:
90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDCTemperature:
-4° F to 140° F (-20° C to 60° C)

RF Remote Channels:
Up to 4 remote sensors monitored individually,
in pairs or sum all (non-A/D version only)
(when used with TranSend)

Service Counters:
A/D version only

A/D Inputs:
Four independent or summing load cell inputs

Excitation:
4.8 V current limited and over-voltage protected

Relays:
Two 5V coil, 250VAC, 5A relaysFiltering:
Off, Low, Hi-1, Hi-2RF

Radio Link:
2.4 GHz 802.15.4, optional second channel for Serial
RF, 802.11 Wi-Fi, cellular connectivity or Bluetooth®

RF Effective Range:
Typically 100 ft – 300 ft, line of sight
(For longer range, contact factory)

Data I/O:
Two RS-232 hard wired communication ports

Approvals:
NTEP COC #17-036 (-5° C to 40° C)
Measurement Canada

Warranty:
One-year limited warranty



MSI-8004HD Indicator/RF Remote Display Dimensions

MSI-8004HD Indicator and RF LED Remote Display
