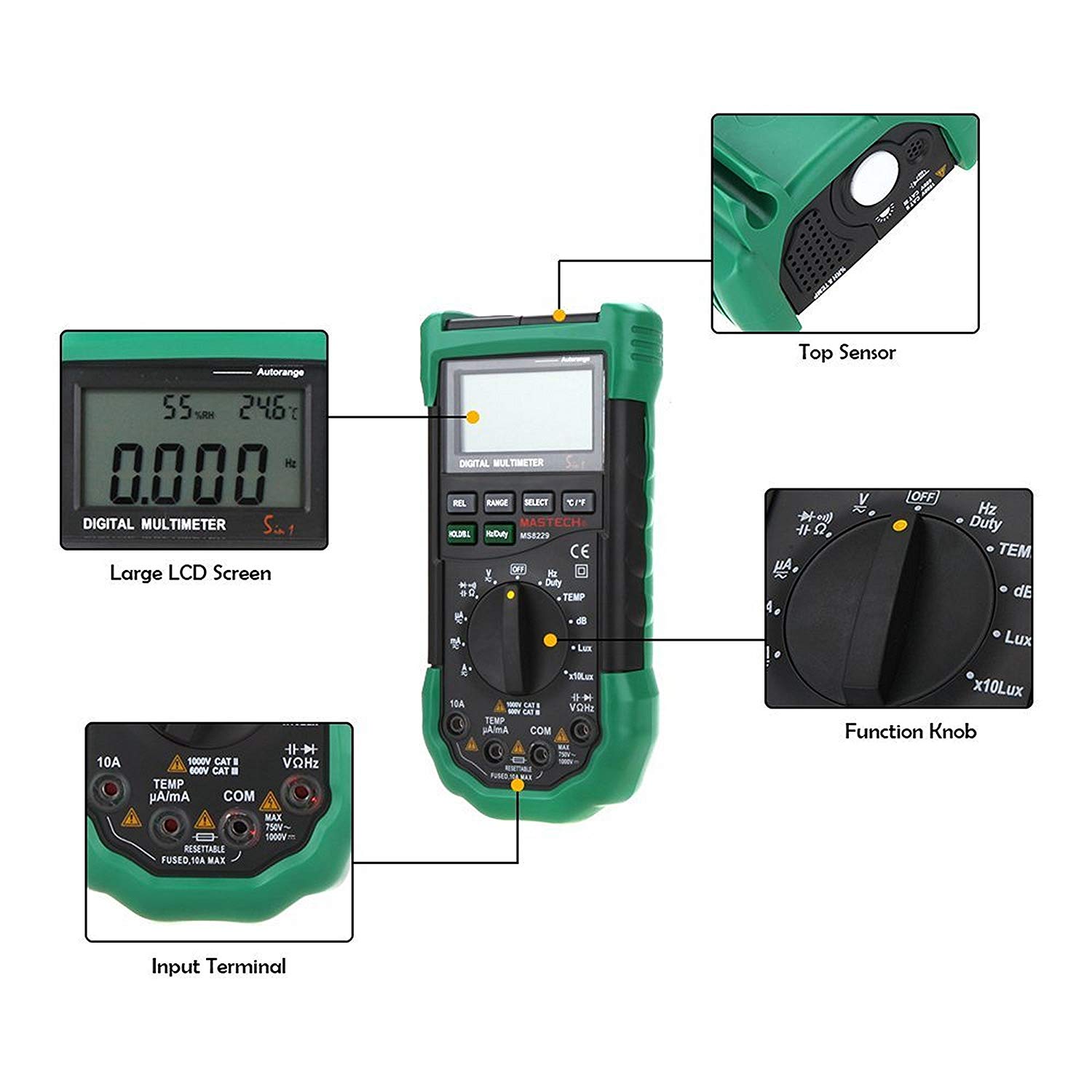

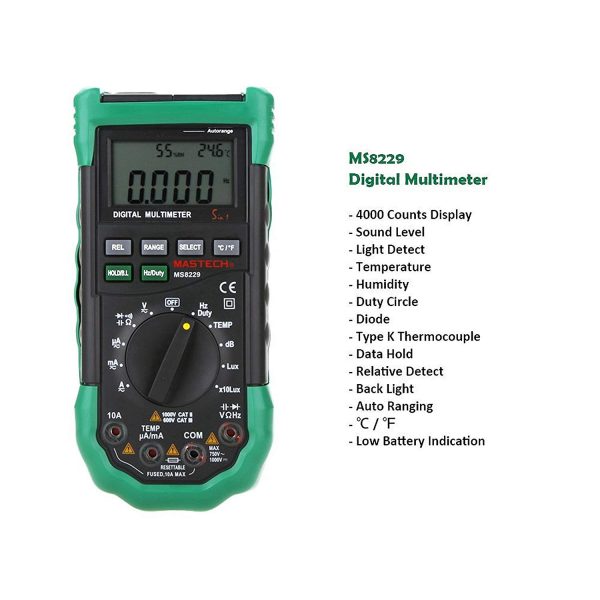

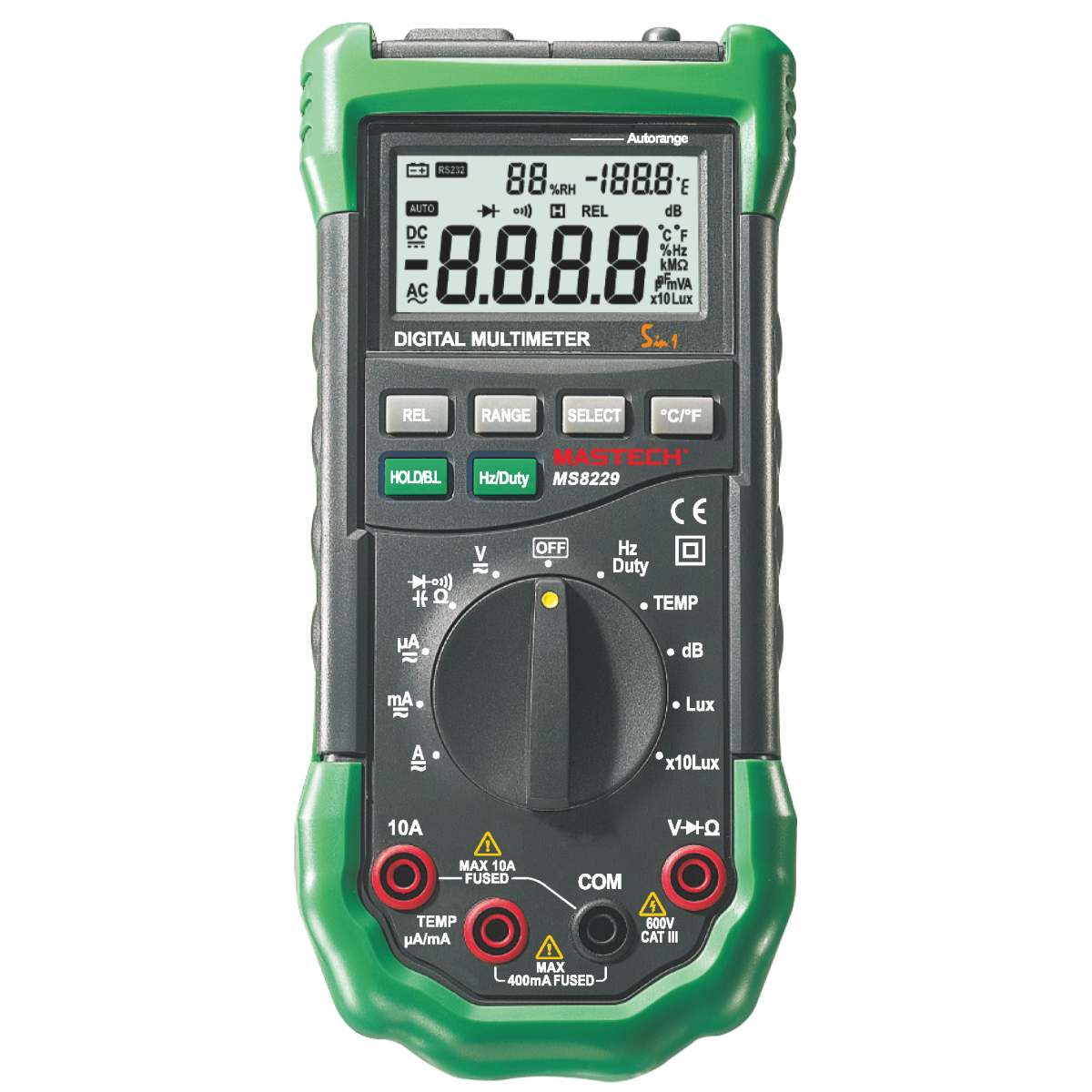

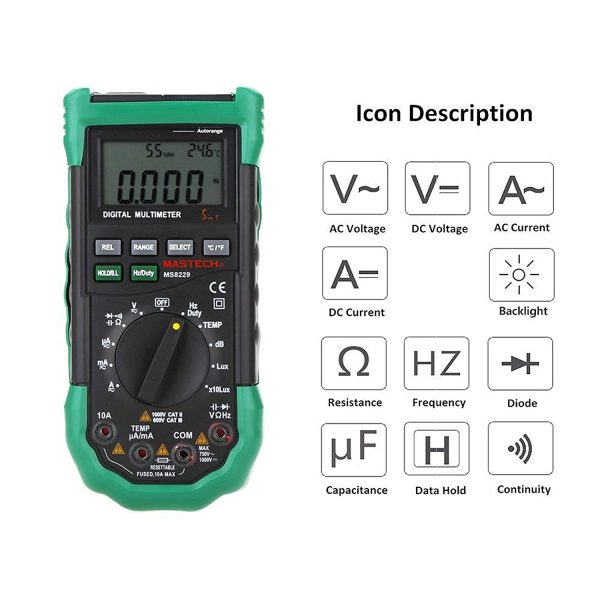

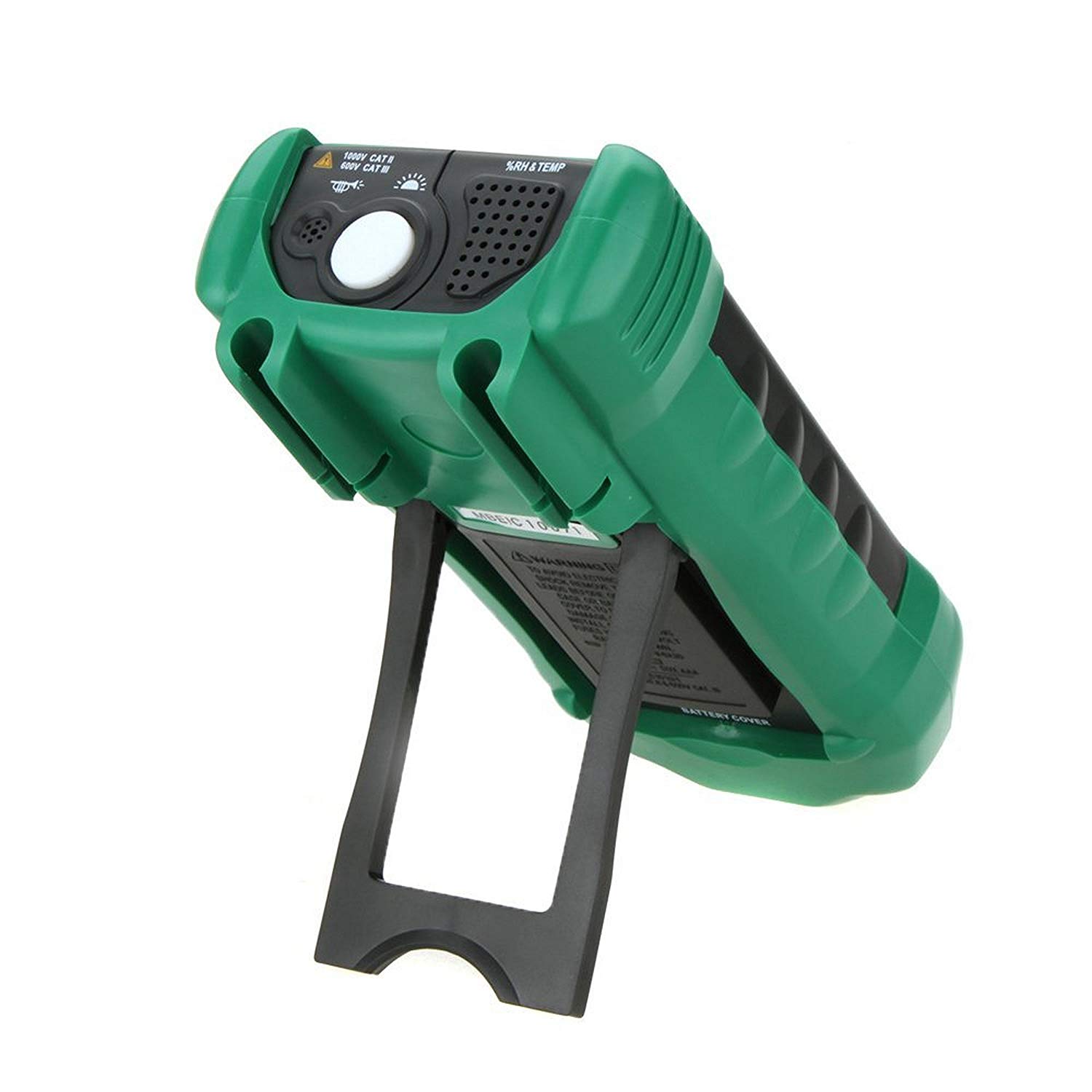

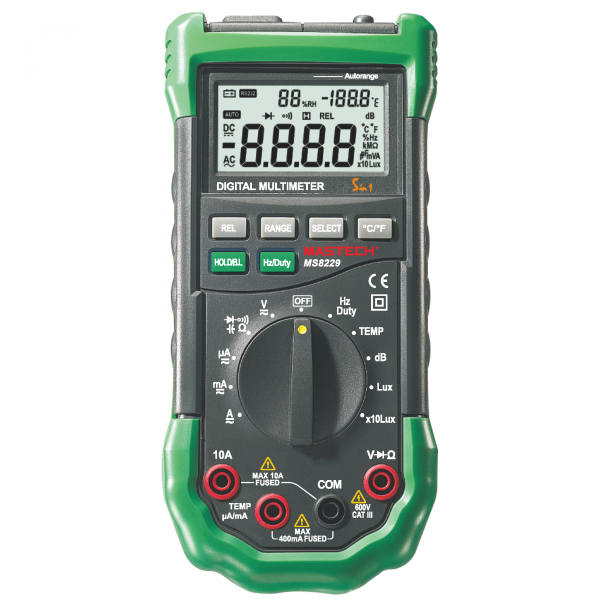

Auto Range Multimeter & Temperature Humidity Light Lux Sound Level Meter Tester 5 in 1 with Back Light

  •  Portable Professional Measuring instruments with large LCD digital display and Back light
  • Overload protection and low battery indication
  • light and sound alarm to prevent misconnection of test leads
  • 5 in 1 digital multi-tester
  • AC/DC voltage and current, resistance,frequency, duty, capacitance, as well as continuity and diode test



DESCRIPTION

● Display 4000 Counts
● Auto & Manual Ranging
● Auto Power Off
● ℃/℉ Selection
● Diode Open Voltage 1.5V
● Continuity Buzzer <50±20Ω
● Data Hold
● Low Battery Display
● Display Backlight

SPECIFICATIONS

Specifications Range Resolution Accuracy
DC Voltage 400mV/4V/40V/400V/600V 0.1mV/1mV/10mV/0.1V/1V ±(0.7%+2)
AC Voltage 400mV/4V/40V/400V 0.1mV/1mV/10mV/0.1V ±(0.8%+3)
600V 1V ±(1.0%+3)
DC Current
400μA/4000μA/40mA/400mA
0.1μA/1μA/10μA/0.1mA ±(1.2%+3)
4A/10A 1mA/10mA
±(2.0%+10)
AC Current
400μA/4000μA/40mA/400mA
0.1μA/1μA/10μA/0.1mA ±(1.5%+5)
4A/10A 1mA/10mA
±(3.0%+10)
Resistance
400Ω/4kΩ/40kΩ/400kΩ/4MΩ
0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ ±(1.2%+2)
40MΩ 10kΩ ±(2.0%+5)
Capacitance
40nF/400nF/4μF/40μF/100μF
0.01nF/0.1nF/1nF/10nF/0.1μF
±(3.0%+3)
Frequency 10Hz 0.001Hz ±(2.0%+5)
100Hz/1000Hz/10kHz 0.01Hz/0.1Hz/1Hz ±(1.5%+5)
100kHz/200kHz 10Hz/0.1kHz ±(2.0%+5)
>200kHz 0.1kHz Reference
Duty Cycle 0.1%~99.9% 0.1% ±(3.0%)
Temperature
(K-Type)
-20℃~0℃ 1℃ ±(5.0%+3)
1℃~400℃ 1℃ ±(1.0%+2)
401℃ ~1000℃ 1℃ ±(2.0%)
-4℉~32℉ 1℉ ±(5.0%+6)
33℉~752℉ 1℉ ±(1.0%+4)
753℉~1832℉ 1℉ ±(2.0%)
Environment 0℃~40℃ 0.1℃ ±(2.0℃)
32℉~104℉ 0.1℉ ±(4.0℉)
Relative Humidity 20%~95% 0.1% ±(5.0%)
Sound Level 40dB~100dB 0.1dB ±(3.5%)
Luminosity 4000Lux/40000Lux 1 Lux/10 Lux
±(5.0%+10)

Additional information

MODEL

MS-8229

SIZE

AC/DC 600 V
