Brand:

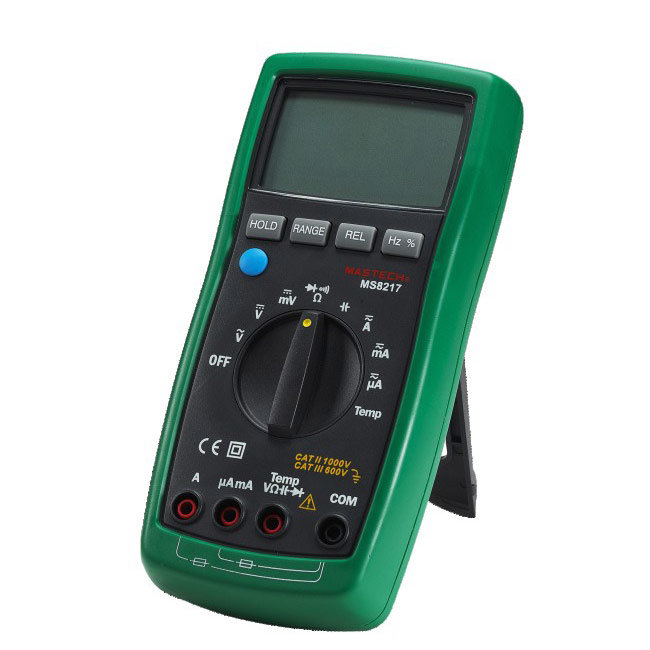

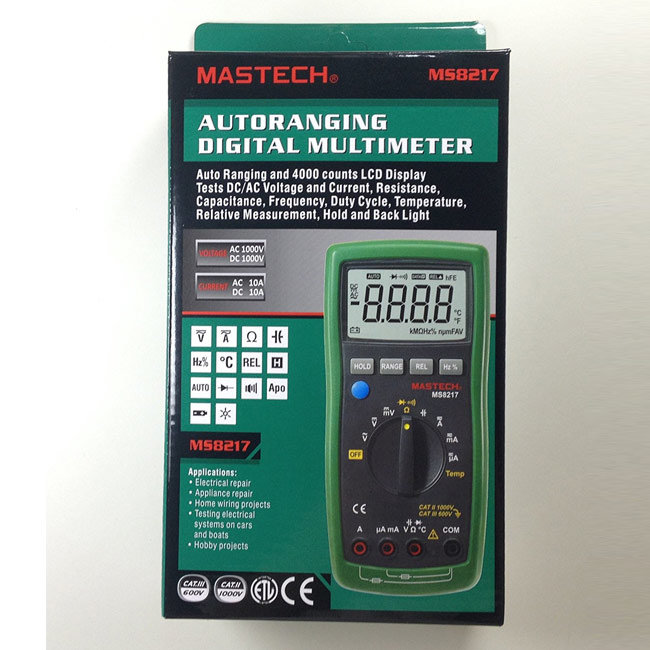

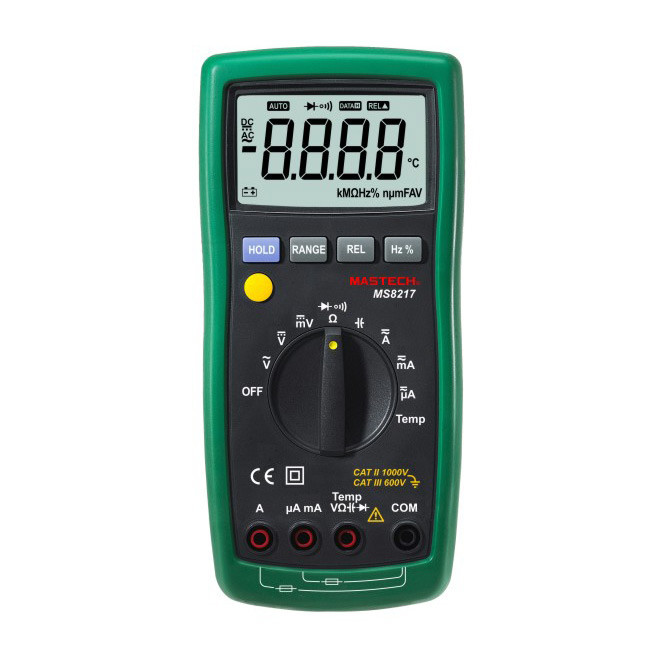

Mastech MS8217(S) Digital Multimeter

Call for price

[posbadges]
GET QUOTATION

Brand:

Mastech MS8217(S) Digital Multimeter

Call for price

[posbadges]
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

The meter is able to measure AC/DC voltage, current, resistance, capacitance, frequency, temperature, diode, hFE, continuity buzzer. Features: Display: 2000 Counts Data hold: Auto power off: Diode test: Transistor: Continuity

Features:

  • Display: 4000 counts
  • Auto Ranging
  • Auto Power Off
  • Relative Measurement
  • Diode: 1.5V
  • Continuity Buzzer: <75Ω
  • Data Hold
  • Display Backlight
  • Low Battery Display

Overview:

  • Power Supply: 3*1.5AAA Batteries
  • Product Size: 185mm*87mm*53mm / 7.28″*3.4″*2.04″
  • Product Weight: 360g/0.79lb
  • Safety Rating: CAT II 1000V CAT III 600V RoHS

SPECIFICATIONS

Specification Range Accuracy
DC Voltage 400mV +-(1.0%+10)
4V/40V/400V/1000V +-(0.5%+3)
AC Voltage 400mV +-(3.0%+3)
4V/40V/400V/1000V +-(1.0%+3)
DC Current 400µA/4000µA/40mA/400mA/4A/10A +-(1.5%+3)
AC Current 400µA/4000µA/40mA/400mA/4A/10A +-(1.5%+3)
Resistance 400Ω +-(0.5%+3)
4kΩ/40kΩ/400kΩ/4MΩ +-(0.5%+2)
40MΩ +-(1.5%+3)
Capacitance 50nF +-(3.0%+10)
500nF/5uF/50uF/100uF +-(3.0%+5)
Frequency 50Hz/500Hz/5kHz/50kHz/100kHz +-(0.1%+3)
Duty Cycle 0.5%~95% +-(1.0%)
Temperature -55℃~0℃ +-(9.0%+2)
1℃~400℃ +-(2.0%+1)
401℃~1000℃ +-2.0%

Additional information

MODEL

MS-8217

SIZE

AC/DC 1000 V
