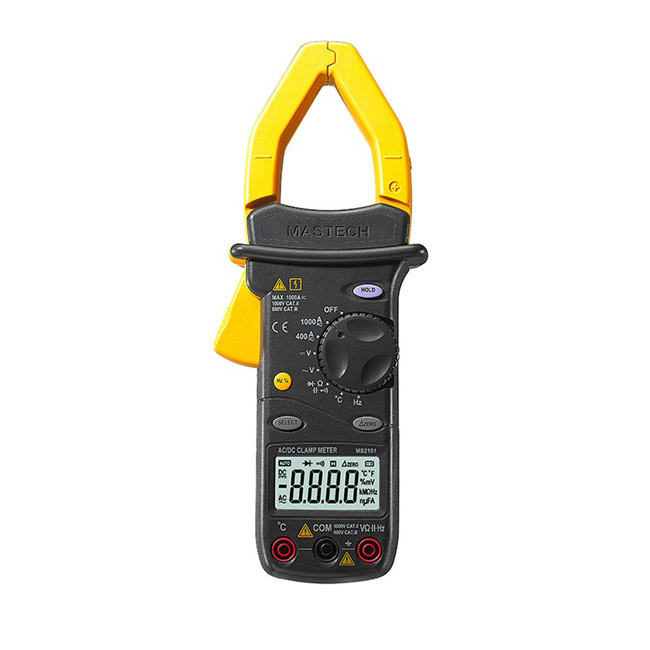

The meter is a handheld 3 1/2 digital clamp meter for measuring DC and DV voltage, AC current, Resistance, Diode and Continuity Test with battery operated.

 Features:

  • Display: 4000 counts
  • Jaw Opening: Φ42mm/1.7″
  • Auto Ranging
  • Auto Power Off
  • Relative Measurement
  • Diode: 2.7V
  • Continuity Buzzer: <30Ω
  • Data Hold
  • Low Battery Display

Overview:

  • Power Supply: 1*9V 6F22 Battery

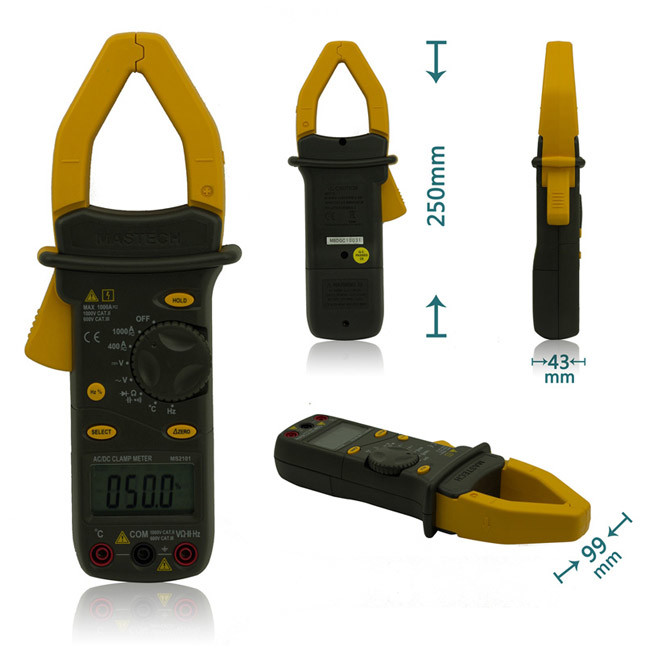

  • Product Size: 250mm*99mm*43mm / 9.8″*3.9″1.7″
  • Product Weight: 416g/0.92lb
  • Safety Rating: CAT II 1000V / CAT III 600V RoHS

SPECIFICATIONS

Specification Range Accuracy
DC Voltage 400mV/4V/40V/400V +-(0.7%+1)
1000V +-(0.8%+3)
AC Voltage 4V/40V/400V +-(0.8%+5)
700V +-(1.0%+10)
DC Current 400A/1000A +-(3.0%+3)
AC Current 400A/1000A +-(3.0%+3)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ +-(1.2%+1)
40MΩ +-(2.0%+3)
Capacitance 4nF/40nF/400nF/4µF/40µF +-(4.0%+10)
Frequency 40Hz/400Hz/4kHz/40kHz/100kHz +-(2.0%+1)
Duty Cycle 0.1%~99.9% +-(2.0%+1)
Temperature -40℃~0℃ +-(1.0%+6)
1℃~400℃ +-(1.0%+3)
401℃~750℃ +-(1.0%+5)

Additional information

MODEL

MS- 2101

SIZE

AC: 700 V, DC: 1000 V
