Overview:

• Environmental
  • Operating Temperature: 0°C to +40°C
  • Operating Altitude: 2000m
  • Pollution Degree:2
• Mechanical Specifications

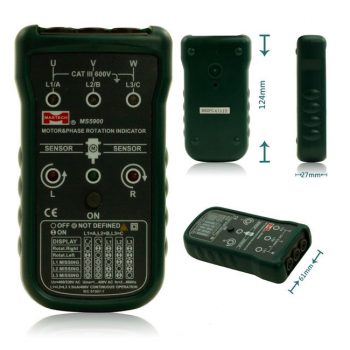

  • Size: 124*61*27 mm (4.9*24*1.1 in)
  • Weight: 150g (0.3lbs)
  • Humidity: 15% to 80%
• Safety Specifications
  • Electrical Safety: Meets DIN VDE 0411, IEC 61010 DIN, VDE 04 13-7, EN 61557-7, IEC 61557-7
  • Maximum Operating Voltage (Ume): 400V AC for all ranges
  • Protection Level: CAT III, 600V
• Electrical Specifications
  • Battery: 6F22/9V
  • Current Consumption: max 20 mA
  • Battery Life: minimum 1 year for average use
• Determine Rotary Field Direction
  • Nominal Voltage Rotary Direction: 1 to 400V AC
  • Nominal Voltage Phase Indication: 120 to 400V AC
  • Frequency Range (fn): 2 to 400 Hz
  • Test currents (In per phase): less than 3.5mA
• Non-Contact Rotary Field Indication
  • Frequency Range (fn): 2 to 100 Hz
• Determine the Motor Connection
  • Nominal Test Voltage(Ume): 1 to 400V AC
  • Nominal Test Currents (In per phase): less than 3.5mA
  • Frequency Range (fn): 2 to 400 Hz2
