“LCCB”: Cable for Connection To Load Cells

Categories: Load Cell Accessories

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Shielded cable for connection of weight indicators to load cells or junction boxes.

GET QUOTATION

Brand: Dini Argeo

“LCCB”: Cable for Connection To Load Cells

Categories: Load Cell Accessories

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Shielded cable for connection of weight indicators to load cells or junction boxes.

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

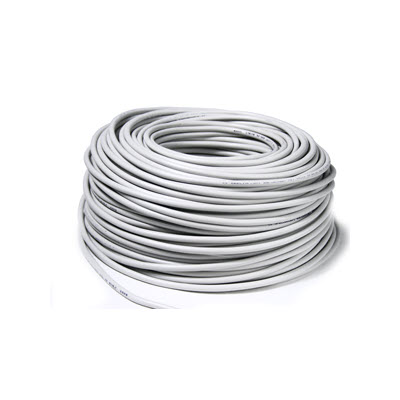

LCCB cable features:

Type: 6 x 0,25 mm², 5,5mm diameter.
Built-in shielding for protection from disturbances.

LCCBA cable features:

Armoured cable, transparent PVC outer sheath.
Type: 6 x 0,25 mm², 8 mm diameter.
Built-in shielding for protection from disturbances.

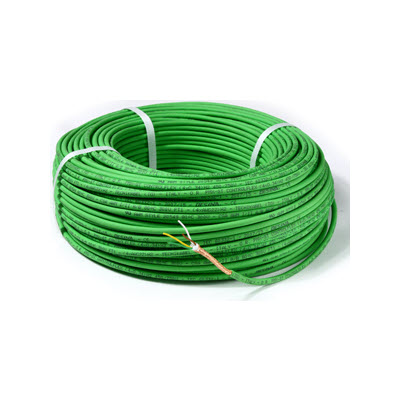

LCCBM cable features:

Indicated for applications with moving cables.
Type: 4 x 0,34 mm².
Built-in shielding for protection from disturbances

Additional information

Model	LCCB, LCCBA, LCCBM, LCCB5C, LCCB10C, PRCB

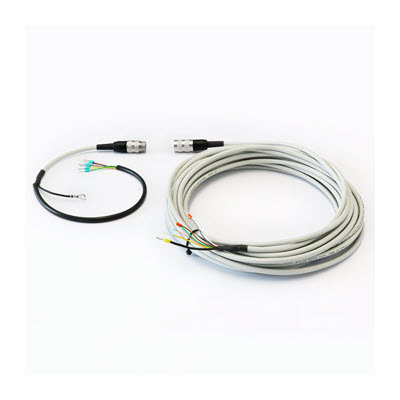

Description	Shielded 6×0,25 mm² cable (suitable for Ex zones). €/m, Armoured cable 6×0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m, Shielded 4×0,34 mm² cable for moving applications. €/m, LCCBC cable + 5m extension cable., LCCBC cable + 10m extension cable., Protection sheathing for shielded cable. €/meter internal Ø 15mm.

Model

LCCB, LCCBA, LCCBM, LCCB5C, LCCB10C, PRCB

Description

Shielded 6×0,25 mm² cable (suitable for Ex zones). €/m, Armoured cable 6×0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m, Shielded 4×0,34 mm² cable for moving applications. €/m, LCCBC cable + 5m extension cable., LCCBC cable + 10m extension cable., Protection sheathing for shielded cable. €/meter internal Ø 15mm.
