iGaging Origin SpeedMic series: Absolute Digital Micrometer – range: 0~6″

Call for price

[posbadges]

Professional Tool, High Precision, IP65, Premium micrometer

Sizes: 0-1″ | 1-2″ | 2-3″ | 3-4″ | 4-5″ | 5-6″

Data output port

GET QUOTATION

Brand:

iGaging Origin SpeedMic series: Absolute Digital Micrometer – range: 0~6″

Call for price

[posbadges]

Professional Tool, High Precision, IP65, Premium micrometer

Sizes: 0-1″ | 1-2″ | 2-3″ | 3-4″ | 4-5″ | 5-6″

Data output port

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

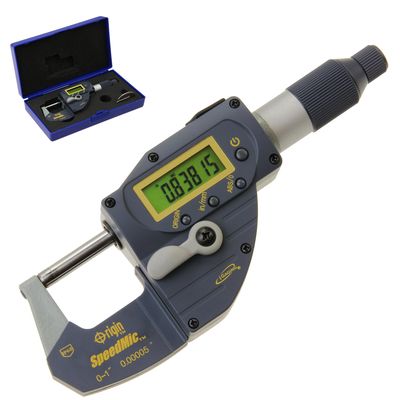

iGaging Digital Quick Micrometer Absolute Origin SpeedMic Snap Lever Action Gage. It uses the absolute encoding technology in which the sensor memorizes and traces an absolute origin zero position. Quickly measure with super high precision.

Features:

  • Resolution: 0.00005″/0.001mm
  • Repeatability: 0.0005″/0.001mm
  • Accuracy: 0.00015″/0.003mm ~ 0.00025″/0.005mm
  • Range Sizes: 0-1″ | 1-2″ | 2-3″ | 3-4″ | 4-5″ | 5-6″
  • Units: Inch / mm
  • Display: LCD
  • IP65 proofing
  • Lever activated – Fully Opens and Closes In Less Than One Second
  • The linear moving sensor provides accurate and reliable measurements
  • Absolute encoding technology
  • Quick measure at unlimited measuring speed
  • Always memorize Origin Zero
  • Fixed Thimble.

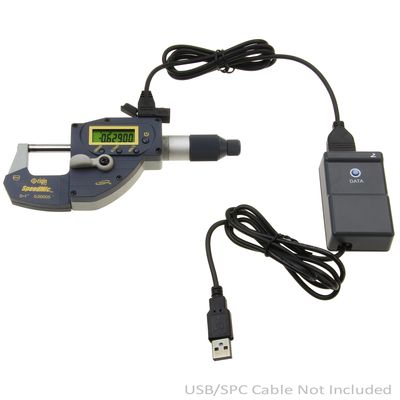

  • SPC data output cable (optional)
  • Warranty: 2 Years

Additional information

MODEL

35-070-025, 35-070-050, 35-070-075, 35-070-100

SIZES

0-25mm (0-1"), 25-50mm (1-2"), 50-75mm (2-3"), 75-100mm (3-4")

Accuracy

0.00015"/0.003mm, 0.0002"/0.004mm, 0.00025"/0.005mm

Micrometer Size

0-25mm / 0-1", 25-50mm / 1-2", 50-75mm / 2-3", 75-100mm / 3-4"
