Brand:

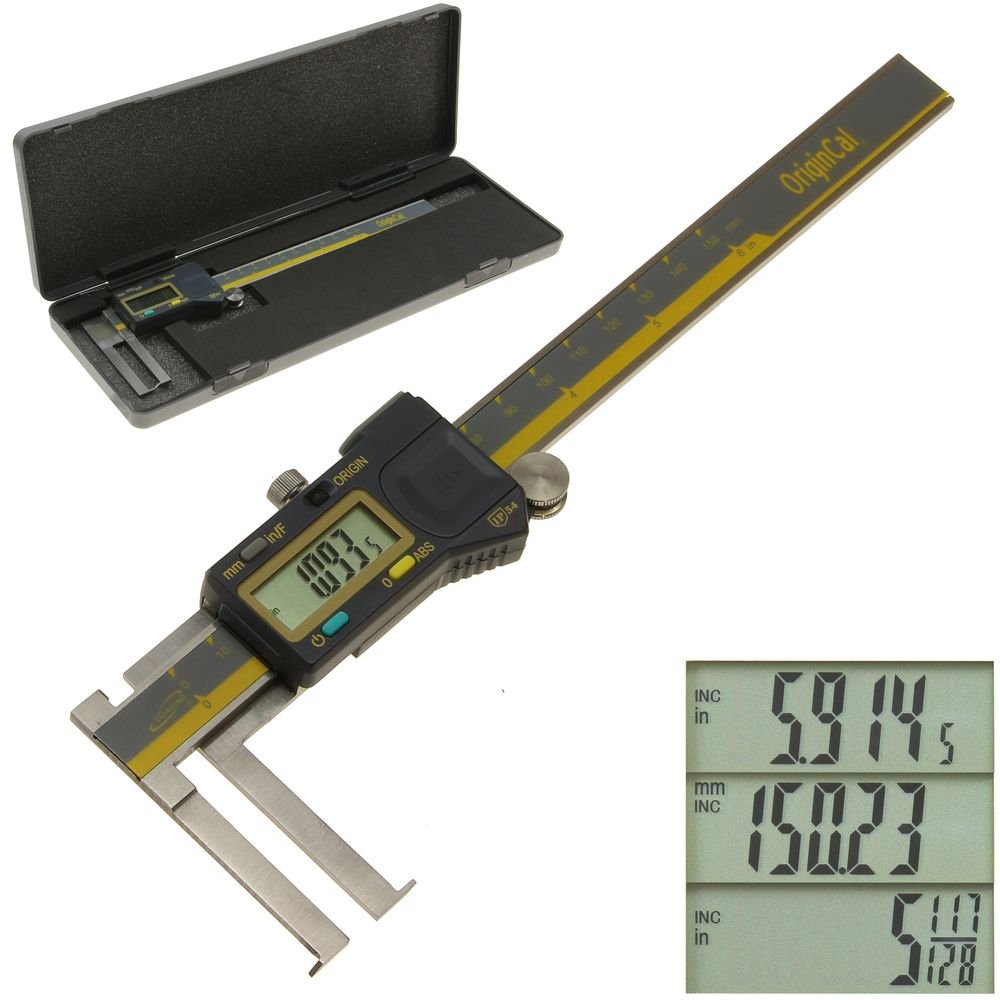

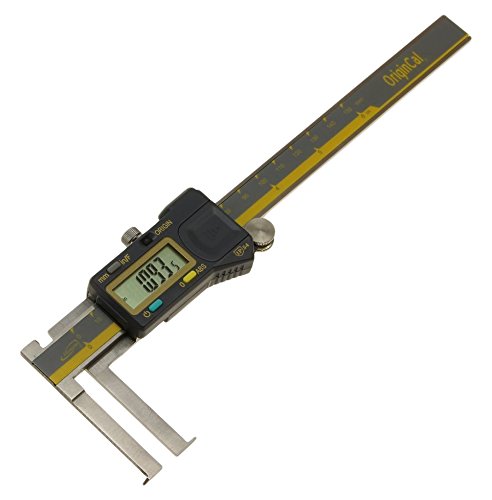

iGaging ABSOLUTE OriginCal – Internal Slot (Groove Inside) Digital Caliper – 150mm (0-6″)

Categories: ,

Call for price

[posbadges]

Part Number: 100-700-37

Size: 150mm / 6″; Resolution: 0.0005″/0.01mm; Accuracy: 0.001″ / 0.02mm; IP54 Protection / Extreme Accuracy

iGaging’s Origin Digital Caliper uses SUPER HIGH ACCURACY ABSOLUTE memory technology. It keeps track of its origin position once set. Whenever the digital caliper turned on, the easy-view large LCD displays the actual sensor position ready to start measuring. It’s not necessary to reset zero. The measuring speed is unlimited. Standard USB data output. High-quality surface finish for extra smooth slider movement.

GET QUOTATION

Brand:

iGaging ABSOLUTE OriginCal – Internal Slot (Groove Inside) Digital Caliper – 150mm (0-6″)

Categories: ,

Call for price

[posbadges]

Part Number: 100-700-37

Size: 150mm / 6″; Resolution: 0.0005″/0.01mm; Accuracy: 0.001″ / 0.02mm; IP54 Protection / Extreme Accuracy

iGaging’s Origin Digital Caliper uses SUPER HIGH ACCURACY ABSOLUTE memory technology. It keeps track of its origin position once set. Whenever the digital caliper turned on, the easy-view large LCD displays the actual sensor position ready to start measuring. It’s not necessary to reset zero. The measuring speed is unlimited. Standard USB data output. High-quality surface finish for extra smooth slider movement.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

Features:

  • Unlimited measuring speed
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.001″/0.02mm
  • Range (size): 6″/150mm
  • Measuring speed: Unlimited
  • Hardened Stainless steel, lapped finished
  • Operating environment:temperature 0°c+40°c; relative humidity: 80%
  • Battery life: more than 2 years under normal operation
  • SPC Output with USB connection available
  • Meets DIN Standard 862; ISO 9001 certified manufacturing
  • 2 Years warranty



  • USB cable sold separately.

Additional information

Size

150mm (6")

Part Number

100-700-37
