Brand:

iGaging Absolute OriginCal – Heavy Duty Digital Vernier Caliper – 600mm (0-24″) size

Categories: ,

Call for price

[posbadges]

Size: 600mm / 24″; Resolution: 0.0005″/0.01mm; Accuracy: 0.001″ / 0.02mm

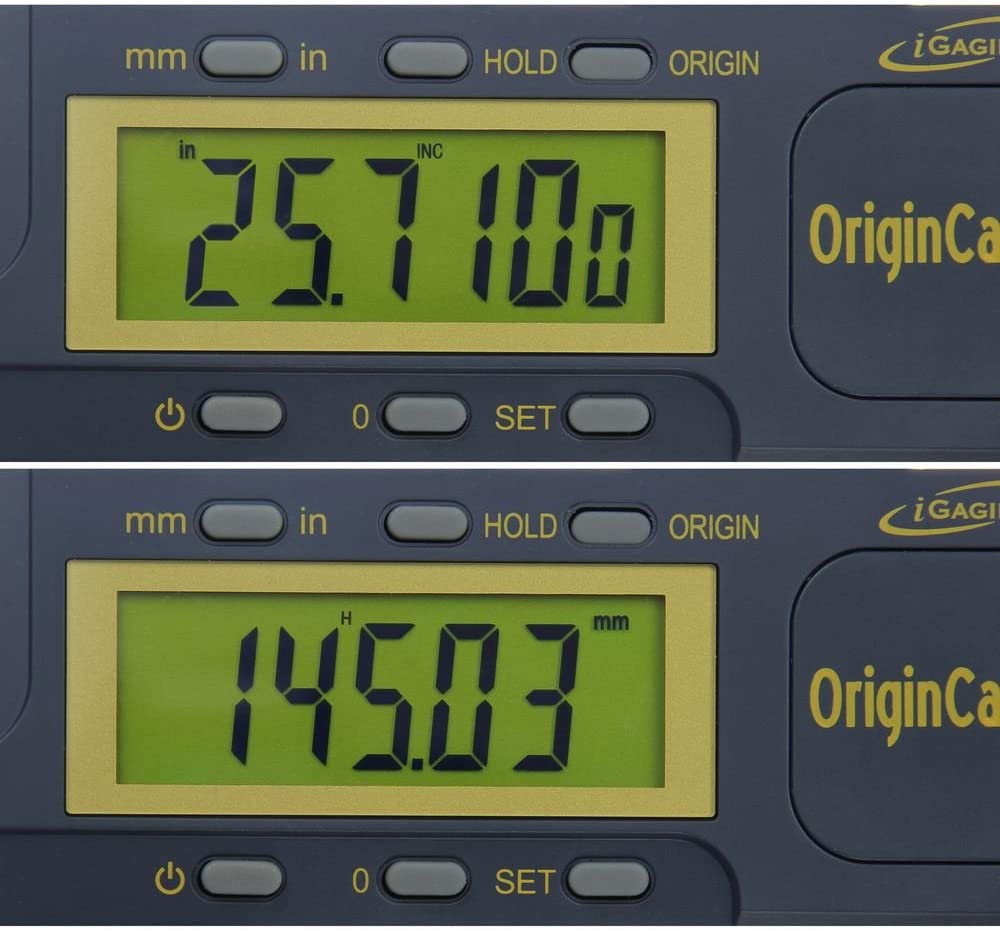

iGaging’s Origin Digital Caliper uses SUPER HIGH ACCURACY ABSOLUTE memory technology. It keeps track of its origin position once set. Whenever the digital caliper turned on, the easy-view large LCD displays the actual sensor position ready to start measuring. It’s not necessary to reset zero. The measuring speed is unlimited. Standard USB data output. High-quality surface finish for extra smooth slider movement.



Part no.: 100-700-24

GET QUOTATION

Brand:

iGaging Absolute OriginCal – Heavy Duty Digital Vernier Caliper – 600mm (0-24″) size

Categories: ,

Call for price

[posbadges]

Size: 600mm / 24″; Resolution: 0.0005″/0.01mm; Accuracy: 0.001″ / 0.02mm

iGaging’s Origin Digital Caliper uses SUPER HIGH ACCURACY ABSOLUTE memory technology. It keeps track of its origin position once set. Whenever the digital caliper turned on, the easy-view large LCD displays the actual sensor position ready to start measuring. It’s not necessary to reset zero. The measuring speed is unlimited. Standard USB data output. High-quality surface finish for extra smooth slider movement.



Part no.: 100-700-24

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

Features:

  • Unlimited measuring speed
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.001″/0.02mm
  • Range: 24″/600mm
  • Measuring speed: Unlimited
  • Hardened Stainless steel, lapped finished
  • Operating environment:temperature 0°c+40°c; relative humidity: 80%
  • Battery life: more than 2 years under normal operation

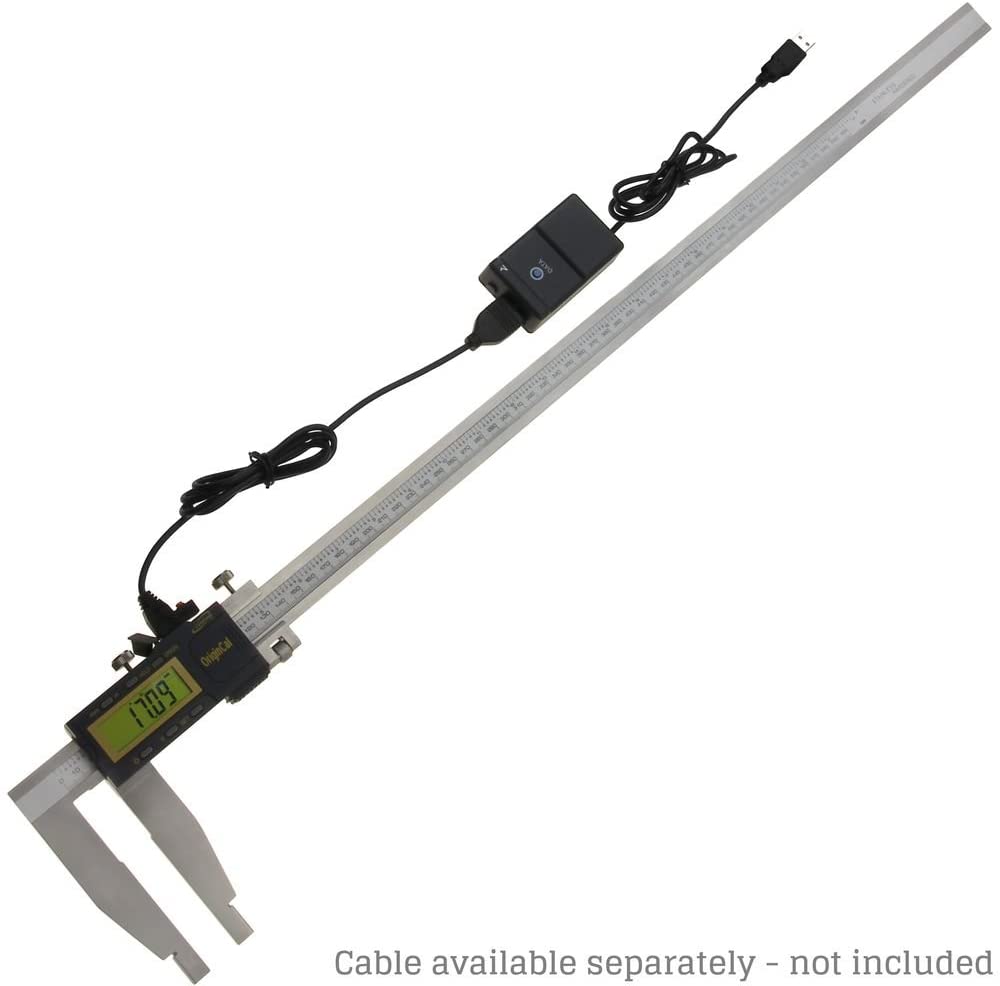

  • SPC Output with USB connection available
  • Meets DIN Standard 862; ISO 9001 certified manufacturing
  • 2 Years warranty



  • USB cable sold separately.

Additional information

SIZES

600mm (24")

MODEL

100-700-60

Caliper Size
