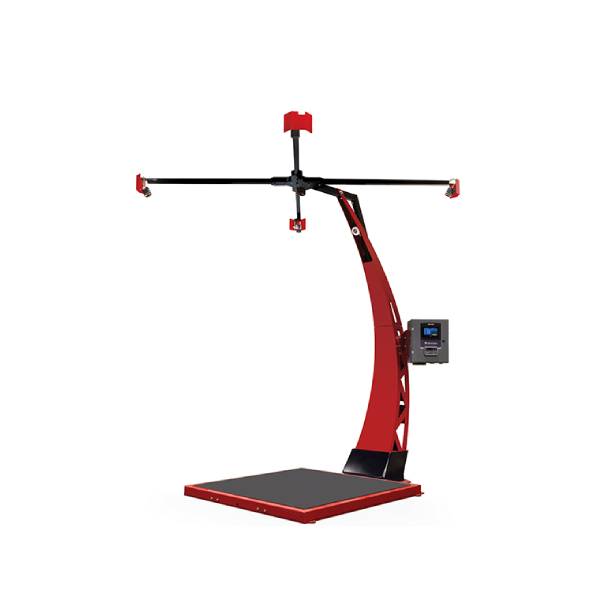

iDimension® PWD Pallet Weighing System

Call for price

[posbadges]

Versatile Uses



  • iDimension PWD is capable of measuring pallets up to six feet (1,829 mm) cubed—or packages as small as six inches (152 mm).



Convenient Pallet Tare Mode

  • For non-Legal for Trade applications, iDimension PWD can measure objects on a pallet by excluding their length and width and subtracting the known pallet height.



Easy Network Integration

  • The iDimension PWD is designed to easily transfer images and dimensions to a network, simplifying claims processes. Built with a web service interface, iDimension PWD offers simple integration through HTTP requests.



Quick, Simple Installation

  • In less than a day, the iDimension PWD can be set up, configured and put to work.
GET QUOTATION

Brand:

iDimension® PWD Pallet Weighing System

Call for price

[posbadges]

Versatile Uses



  • iDimension PWD is capable of measuring pallets up to six feet (1,829 mm) cubed—or packages as small as six inches (152 mm).



Convenient Pallet Tare Mode

  • For non-Legal for Trade applications, iDimension PWD can measure objects on a pallet by excluding their length and width and subtracting the known pallet height.



Easy Network Integration

  • The iDimension PWD is designed to easily transfer images and dimensions to a network, simplifying claims processes. Built with a web service interface, iDimension PWD offers simple integration through HTTP requests.



Quick, Simple Installation

  • In less than a day, the iDimension PWD can be set up, configured and put to work.
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

Dimensions Pallets in Less Than Two Seconds

The iDimension PWD dimensioner and scale system provides shippers with the dimensions and weight of palletized shipments, empowering users to identify the correct freight class and reduce the risk of non-compliance fees from carriers. Ensure invoiced freight charges are accurate at the time of shipment and receive a measurable, nearly instantaneous return on investment with the iDimension PWD.



Same-day Installation and Operation

In less than a day, the iDimension PWD can be unboxed, set up and put to work.



Straightforward Operation

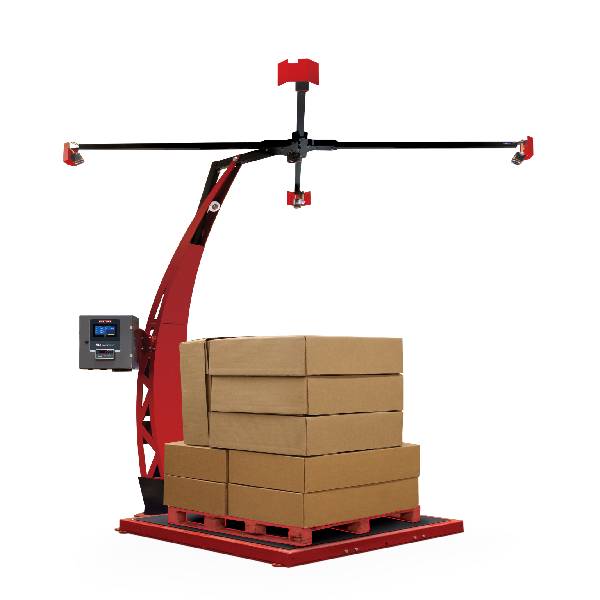

The iDimension PWD can be loaded with a forklift or side-loaded with a pallet jack and optional access ramps. Simply place the pallet on the floor scale and use the USB-connected display, optional bar code scanner or web browser to trigger the PWD to capture dimensions. In less than two seconds, the iDimension PWD measures and provides dimensions and weight, and takes a digital picture the item with the optional high-resolution camera.



Versatile Item Sizes

iDimension PWD is capable of measuring pallets up to six feet and packages as small as six inches, cubed.



Convenient Pallet Tare Mode

For non-Legal for Trade applications, iDimension PWD can tare pallet measurements to provide only the dimensions of objects on the pallet.



High-Resolution CameraEasy Network Integration

The iDimension PWD is designed to easily transfer dimensions, weight and images to a network, simplifying claims processes. Built with a web server interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing. The iDimension PWD optional high-resolution camera quickly captures images of freight condition at time of shipment.



iDimension PWD System Specifications

Legal for Trade Measurement Range (L x W x H):
Maximum freight size:
72 in x 72 in x 72 in
(1,829 mm x 1,829 mm x 1,829 mm)
Minimum freight size:
6 in x 6 in x 6 in
(152 mm x 152 mm x 152 mm)Measurement Increment:
0.5 in (1 cm)Performance Characteristics:
Most surfaces are captured, transparent/translucent and glossy surfaces may provide a variance..

Item Placement:
Single pallet centered on the floor scale for best performance

Minimum Pallet Height:
4.25 in (108 mm) wood palletsShapes:
Solid shapes, (3-inch (76 mm) protrusions or more) will be included in dimensionsLighting Conditions:
Operates in any indoor lighting environment

System Contents:
iDimension PWD
Calibration object
12 in x 12 in x 12 in
(305 mm x 305 mm x 305 mm) test box

Power Requirements:
Single power source (96-264 VAC), with 25 ft (7.62 m) power cable

Optional Network Camera:
Wide angle POE network color camera with 3-axis camera angle adjustment. IP24 rating. Standard
2688 x 1606 pixels @ 751kb standard output in .jpeg format. Configurable for time and date, scan ID, system serial #, dimensions and dimensional
indicatorsOperating Temperature:
14°F to 104°F (-10°C to 40°C)Humidity:
0-90% non-condensing

Warranty:
Two-year limited warranty
Five-year limited warranty, sensors only

Packaging Dimensions:
Crate 1: 103 x 75 x 27 in
(2,616 x 1,880 x 676 mm)
Crate 2; 101 x 74 x 34 in
(2,565 x 1,880 x 864 mm)
Crate 1 weight: 1,715 lb
Crate 2 weight: 900 lb

Approvals:
NTEP





iDimension PWD System Options

High Resolution Camera

  • Capture an image of each piece of freight to provide proof of condition to simplify the freight damage claim process. Produces a 2.4 mm color image at 2688 x 1606 pixels

Wireless Barcode Scanner

  • Optional long range wireless barcode scanners available to trigger the iDimension PWD

Access Ramps

  • One or two side-mounted ramps provide access for pallet jacks

Overhead 5th Sensor

  • Increases performance when dimensioning highly reflective and IR sensitive pallet shrink wrap material and small protrusion located on top of freight pallets

Software Programs

  • QubeVu Desktop for use as a software keyboard wedge, entering weight and dimensions into application fields. iDimension SS for storing data and images transferring data to ERP and WMS systems

Additional information

model

SL15, SL30, SL50, SL100, SL300, SL500, SL1000
