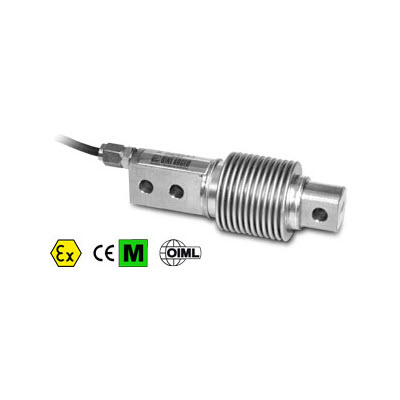

MAIN FEATURES

• C3 PRECISION CLASS
• STAINLESS STEEL
• IP68 PROTECTION
• MAX. CAPACITIES FROM 10 TO 500 kg
• SHIELDED CONNECTION CABLE
• OIML CERTIFICATE AVAILABLE UPON REQUEST
• TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

• Minimum load cell verification interval: Vmin = EMax / 10.000
• Maximum number of verification intervals: nLC= 3000
• Full Scale Output: 2 mV/V ± 0,1%
• Combined error: 0,012% of Full Scale Output (F.S.)
• Non-Repeatability: 0,01% F.S.
• Temperature effect on zero: +/- 0,02% F.S. / 10°C
• Temperature effect on full scale output: +/- 0,02% F.S. / 10°C
• Compensated Temperature Range: –10°C/+50°C
• Operating Temperature Range: –20°C/+60°C
• Creep error after 30 minutes +/- 0,012% F.S.
• Maximum tolerated excitation voltage: 15 VDC
• Input Resistance: 385 ± 10 Ohm
• Output Resistance: 350 ± 3 Ohm
• Insulation Resistance: > 5000 MOhm
• Safe Overload: 120% F.S.
• Ultimate Overload: 150% F.S.
• Nominal displacement: < 0,4 mm
• 4-wire shielded cable, 3m long, 5mm diameter.
