WEIGHING FEATURES

• Maximum capacity: 2,000 kg
• Resolution:
  > internal use: 0,2 / 0,5 / 1 kg
  > approved: 0,5 / 1 kg
• Accuracy (weighing on Europallet with distributed load):
  > internal use: +/- 1 kg
  > approved: according to CE certification (Directive 2014/31/EU)
• Digital calibration and set-up from keyboard or from PC with DINITOOLS.

WHY CHOOSE EPWL DINI ARGEO

• Fast and accurate solution for weighing pallets wherever you need it.
• Easy to use with hand pallet trucks.
• Available in approved version for legal-for-trade use.
• Built with 4 Dini Argeo load cells, in stainless steel, approved, with IP67 protection rating.

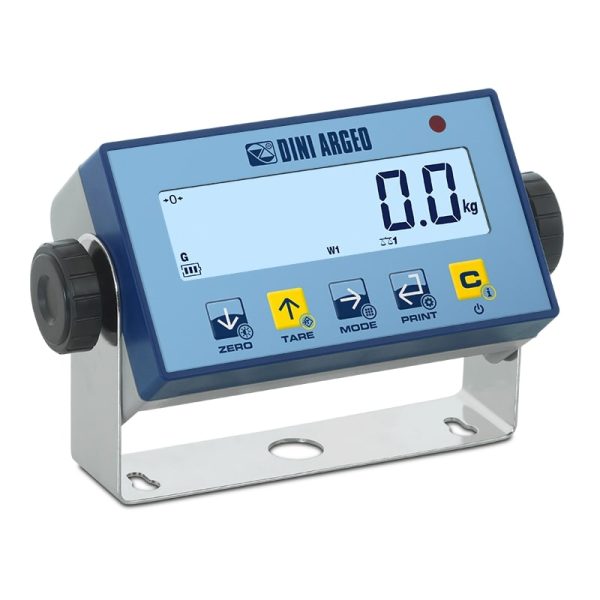

• Fitted with weight indicator with adjustable bracket, suitable for installation on optional column, on the wall, on the bench, or fixed to the structure.

TECHNICAL FEATURES

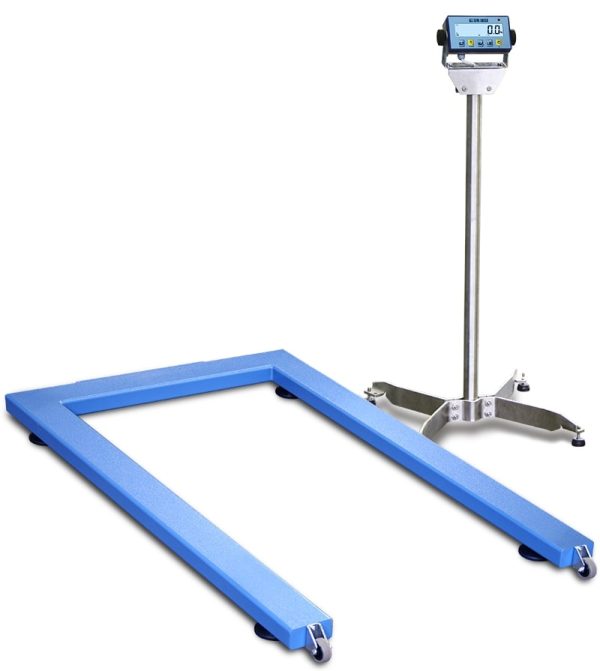

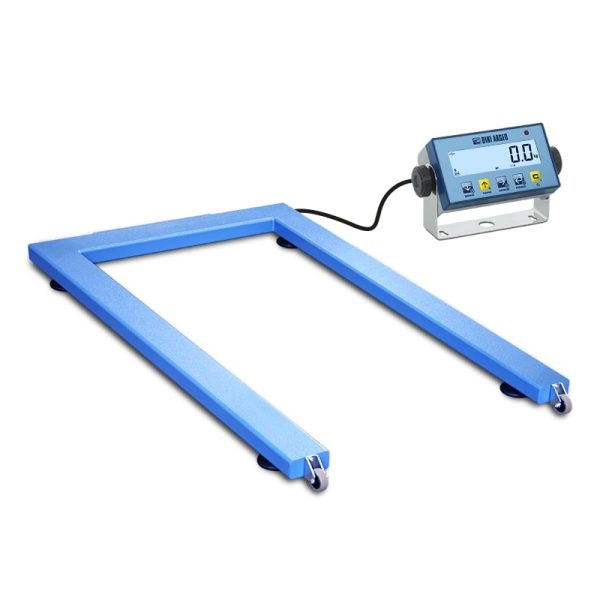

• Load-bearing structure of pallet-weighing scales made of shaped sheet steel and oven-fire painted, complete with adjustable feet.
• Level bubble, wheels, and transport handle.
• Connection cable to the indicator, 3 meters long.
• Equipped as standard with extractable drawer for housing 4 AA batteries (not included), also rechargeable, and standard connector for connection to external power supply (if connected, it excludes the battery supply).
• Backlit LCD display of 25mm with 6 digits, high contrast, with icons for indication of active functions.
• Functional waterproof keypad with 5 keys.
• ABS IP54 enclosure, easy to clean and resistant to harsh and corrosive environments.
• Programmable automatic switch-off.
• Power supply from 5 to 12Vdc.
• Bi-directional RS 232/C port on RJ connector for quick connection (USB or RS485 optional), configurable for PC, PLC, additional remote display.
• Bi-directional RS 232/C port configurable for connection to printer or labeller.
• Operating temperature: -10° / +40° C

SELECTABLE FUNCTION MODES

• The user can select the operating modes directly using the dedicated key*:- High resolution display x 10
  – Net/Gross
  – Lb to Kg converter
  – Free conversion factor (for meter and litre counters etc.)
  – Weight totalizer
  – Formulizer
  – +/- controller with quick target and threshold input
  – Percentage weighing
  – Percentage batching with programmable target
  – Piece counter
  – Hold

The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board;

• Optional functions:
  – Newton to Kg converter (code DFWPK)
  – Input-output (on request).
• Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* these quick access keys to the menus can be blocked by configuring a dedicated password.
