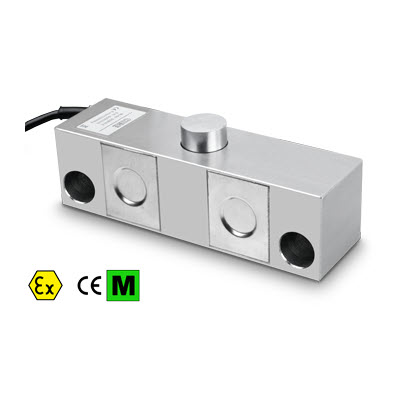

DSBI Series Double Shear Beam Stainless Steel Load Cells

Categories: Double Ended Shear Beam Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Stainless steel double shear beam load cells suitable for building, for example, to make CE-M approved scales for high capacities or for weighing tanks and hoppers with the relevant accessories. High accuracy also with the expansion of the weighing structures.
CAPACITIES (kg): 10000, 20000, 30000.
OIML R60. C4 precision class.
17-4 PH stainless steel. IP68 protection.

GET QUOTATION

Brand: Dini Argeo

DSBI Series Double Shear Beam Stainless Steel Load Cells

Categories: Double Ended Shear Beam Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

TECHNICAL FEATURES

C4 PRECISION CLASS
17-4 PH STAINLESS STEEL CONSTRUCTION
IP68 PROTECTION
MAX. CAPACITIES FROM 10000 TO 30000 kg
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST

MAIN FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000
Combined error 0,03% of Full Scale Output (F.S.)
Full Scale Output: 2mV/V +/- 0,1%
Temperature effect on zero: 0,00116% /°C
Temperature effect on full scale output: 0,00097% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -30°C/+85°C
Creep error after 30 minutes: <0,02% F.S. Maximum tolerated excitation voltage: 15 VDC Input Resistance: 700 ± 7 Ohm
Output Resistance: 700 ± 7 Ohm Zero Balance: +/- 1% F.S. Insulation Resistance: >5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 300% F.S.
6-wire shielded cable, 15m long, 5mm diameter.
