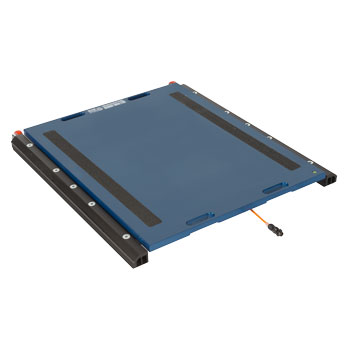

Dini Argeo, “WWSF” Portable Wheel Weighing Pads – 900x700mm

Categories: Truck & Vehicle, Wired Pads

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Pads designed to create weighing stations for large sized vehicles fitted with twinned wheels (articulated lorries, tractor-trailers, building yard vehicles, etc.); fitted with handles on both sides for easing the transport and the positioning. Particularly suitable for dynamic weighing.

GET QUOTATION

Brand: Dini Argeo

Dini Argeo, “WWSF” Portable Wheel Weighing Pads – 900x700mm

Categories: Truck & Vehicle, Wired Pads

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

Pad dimensions: 900x811mm. Height 75mm. Weight approximately 67kg.
Loading surface: 900x700mm.
Fitted with double handles on both sides for easy handling.
Fitted with wheels for pad transport.
Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
IP68 stainless steel load cells.
Hermetic junction box with IP68 protection rate.
Special vulcanised nonslip rubber applied under the pad for good grip on all surfaces.
Extremely simple and reliable connection of the scale to the weight indicator.
The WWS pads are patented; the number is 1.342.302.
Available in legal for trade approved version.
Available in high resolution version.
Available upon price estimate in Atex version for 1&21 e 2&22 zones.

Additional information

System Reference	WWSF10T-2, WWSF15T-2, WWSF20T-2, WWSF25T-2
l x w x h (mm)	900x700x75
Max (kg)	10000, 15000, 20000 (15000**), 25000
d (kg)	5, 10
d HR (kg)*	0,5, 1
Number of Platforms	2, 4, 6, 8
Platform Size	Loading surface: 900x700mm
Placement	Portable
Material	Truck and Vehicles
