Dini Argeo, “WWSE” Portable Wheel Weighing Pads – 700x561mm

Categories: Truck & Vehicle, Wired Pads

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Pads designed to create weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.

GET QUOTATION

Brand: Dini Argeo

Dini Argeo, “WWSE” Portable Wheel Weighing Pads – 700x561mm

Categories: Truck & Vehicle, Wired Pads

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Pads designed to create weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

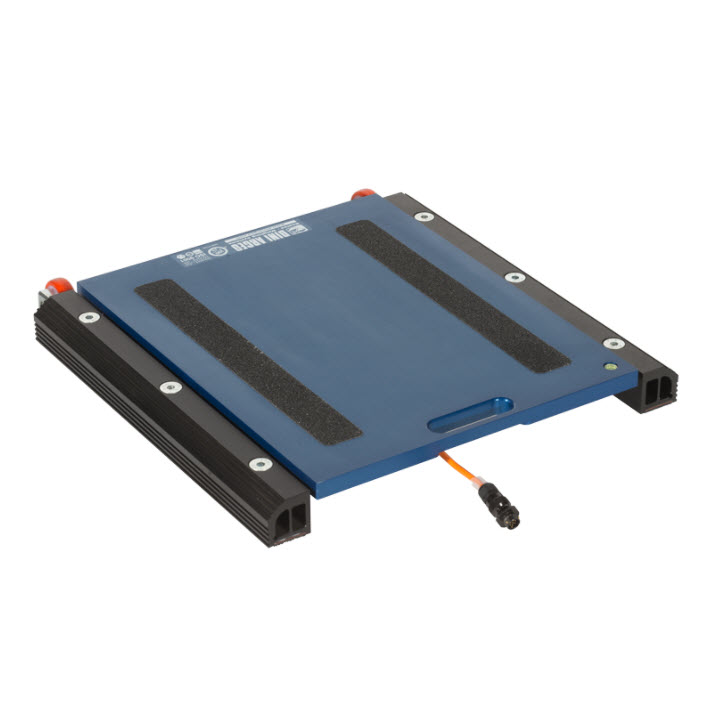

Pad dimensions: 700x561mm. Height 58mm. Weight approximately 26kg.
Loading surface: 700x450mm.
Double handle for easy handling
Fitted with wheels for pad transport.
Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.

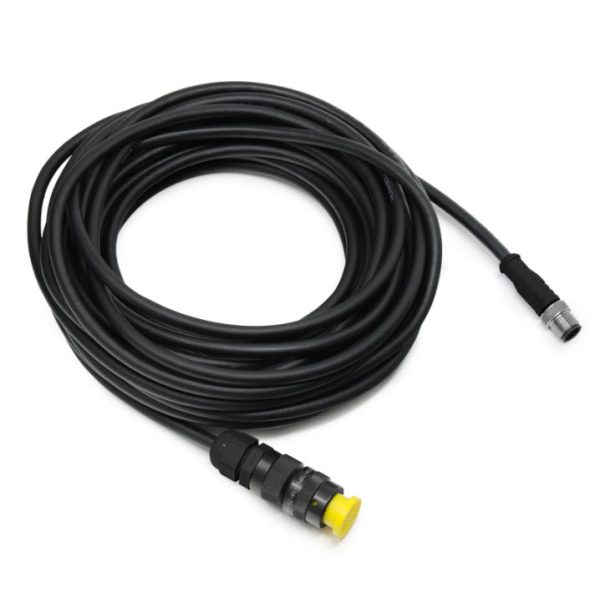

10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
IP68 stainless steel load cells.
Hermetic junction box with IP68 protection rate.
Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
Extremely simple and reliable connection of the scale to the weight indicator.
The WWS pads are patented; the number is 1.342.302.
Available in legal for trade approved version.
Available in high resolution version.
Available upon price estimate in Atex version for 1&21 e 2&22 zones.

Additional information

System Reference	WWSE6T-2, WWSE10T-2, WWSE15T-2
l x w x h (mm)	700x450x58
Max (kg)	6000, 10000, 15000 (12500**)
d (kg)	2, 5, 5
d HR (kg)*	0,2, 0,5
Number of Platforms	2, 4, 6, 8
Platform Size	Loading surface: 700x450mm
Placement	Portable
Material	Truck and Vehicles
