Brand: Dini Argeo

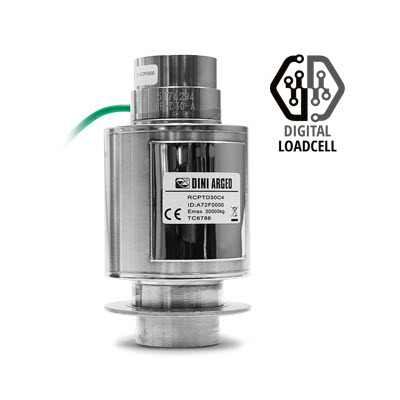

Dini Argeo Digital Column Load Cell “RCPTD” Series

Categories: Compression Load Cell, Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Digital column load cells ideal for approved CE-M weighbridges or silos and tanks.
CAPACITIES (kg): 30000.
OIML R60. C4 precision class.
Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings. IP68 protection.

GET QUOTATION

Brand: Dini Argeo

Dini Argeo Digital Column Load Cell “RCPTD” Series

Categories: Compression Load Cell, Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Digital column load cells ideal for approved CE-M weighbridges or silos and tanks.
CAPACITIES (kg): 30000.
OIML R60. C4 precision class.
Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings. IP68 protection.

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Column Load Cell, Compression Load Cell, Digital Load Cell, Force Load Tester, Force Sensor, Force Tester, Force Transducer, Load Cell Sensor, Load Cell Transducer, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Strain Gauge Transducer, Strain Sensor, Stress Gauge, Stress Gauge Sensor, Torque Sensing, Weighing Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

GET QUOTATION

[woocommerce_variations_table]

MAIN FEATURES

AVAILABLE FOR 3590E TOUCH SCREEN INDICATOR.
C4 PRECISION CLASS.
SPECIAL ALLOY STEEL BODY with STAINLESS STEEL EXTERNAL CASING; LASER SOLDERINGS.
IP68 PROTECTION RATING.
CAPACITY 30000Kg.
SHIELDED 18m CONNECTION CABLE.
TEST CERTIFICATE AVAILABLE UPON REQUEST.
APPROVED WITH 3590 TOUCH SCREEN INDICATOR FOR LEGAL-FOR-TRADE WEIGHING SYSTEMS.

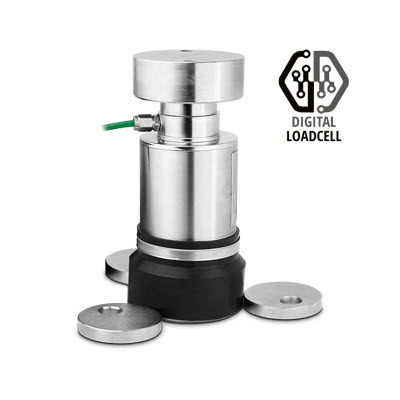

FITTED WITH SELF-ALIGNED ARTICULATED JOINTS, SELF-CENTERING PLATES AND PROTECTION WASHER.

TECHNICAL FEATURES

Resolution for nominal load 60.000d.
Combined error on nominal load ± 0,01%.
Operating temperature range -10°C/+40°C.
Power supply tension from 10 to 18 Vdc.
Conversion: 24 bit.
Connection RS485.
Admissible load: 150% F.S.
Shielded cable 4 poles, 5mm diameter.

Additional information

Model	RCPTD30C4-1
Max (kg)	30000
