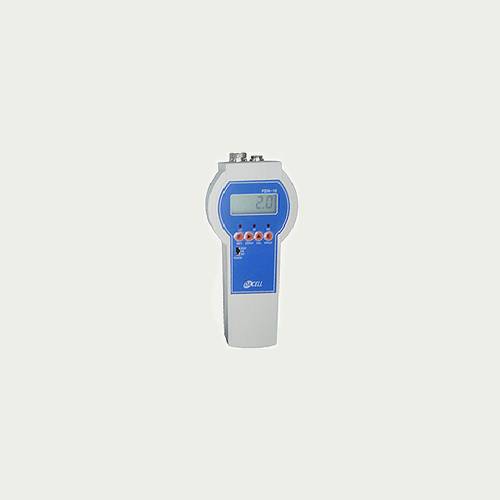

Digital indicator – Pocket indicator PDN10

Call for price

[posbadges]
  • Pocket indicator with battery.
  • The PDN-10 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.
  • Peak hold
  • Auto Zero
  • Measuring Data Saving (Max 500pcs.)
  • Hi, Low Display LED
GET QUOTATION

Brand:

Digital indicator – Pocket indicator PDN10

Call for price

[posbadges]
  • Pocket indicator with battery.
  • The PDN-10 has been designed specifically to operate with strain gauge sensors such as Load cell, Pressure Transducer. LVDT. etc.
  • Peak hold
  • Auto Zero
  • Measuring Data Saving (Max 500pcs.)
  • Hi, Low Display LED
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

SPECIFICATIONS

Specifications Accuracy
Power Source DC 9V battery
Electric current Consumption 15mA
LOAD CELL input range 1.0mV/V ~ 3.0mV/V, Potenticmeter : 100~10KΩ
Display 4 1/2 Digit LCD
Characters displayed +19999
Display Speed Approx. 10 times/sec
Decunak point Position 0, 0.0, 0.00, 0.000
A/D Sampling speed 100 times/sec
A/D Resolution 16 bit
Zero Adjust Range 100% F.S(AUTO ZERO)
Data stonage 500 data can be memorised
Data output RS232C Serial Interface



DIMENSIONS

Digital indicator - Pocket indicator PDN10
