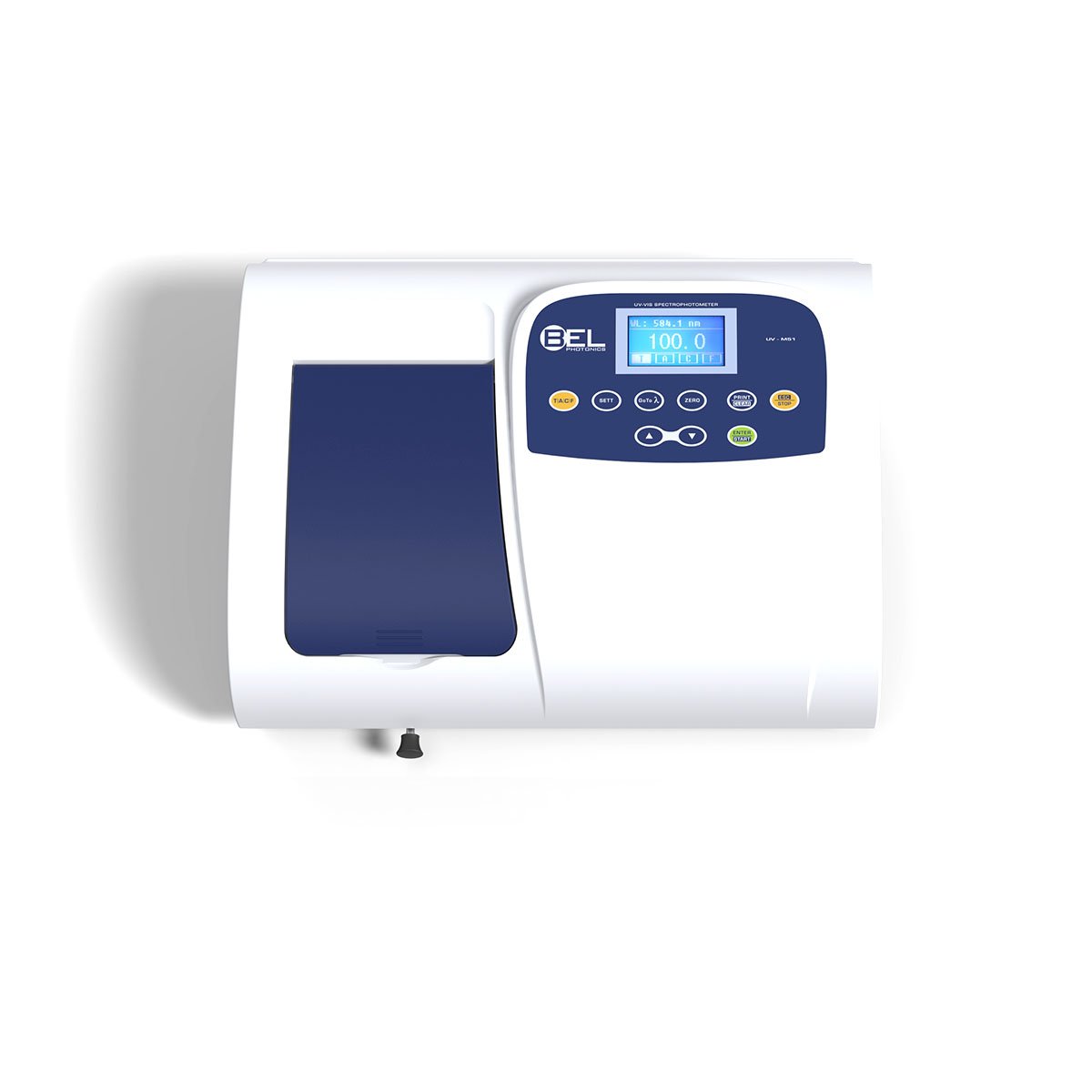

Brand: BEL
Categories: Optical Instruments
Call for price
Wavelength range is from 190nm to 1000nm with Absorbance, Transmittance, Concentration and Factor measuring modes.
Bandwidth 2nm.
The internal database can store 200 groups of data. Halogen and deuterium lamp can be turned on/off individually
to extend lifetime. The instrument is equipped with USB to be connected to a computer.
The UV-PROFESSIONAL software included expands the applications to:
Photometry, Quantitative analysis, Wavelength scanning, Standard curve, Kinetics (time scanning), Multi-wavelength analysis.
Also additional features like: spectrum computing (spectrum addition, subtraction, multiplication and spectrum division).
Spectrum derivative and spectrum compare. DNA/Protein Analysis
Included Accessories: Advanced Software for connection to computer, 2 quartz cuvette 10mm, 4 glass cuvette 10mm
Call for price
Wavelength range is from 190nm to 1000nm with Absorbance, Transmittance, Concentration and Factor measuring modes.
Bandwidth 2nm.
The internal database can store 200 groups of data. Halogen and deuterium lamp can be turned on/off individually
to extend lifetime. The instrument is equipped with USB to be connected to a computer.
The UV-PROFESSIONAL software included expands the applications to:
Photometry, Quantitative analysis, Wavelength scanning, Standard curve, Kinetics (time scanning), Multi-wavelength analysis.
Also additional features like: spectrum computing (spectrum addition, subtraction, multiplication and spectrum division).
Spectrum derivative and spectrum compare. DNA/Protein Analysis
Included Accessories: Advanced Software for connection to computer, 2 quartz cuvette 10mm, 4 glass cuvette 10mm
| Name | UV-M51 |
|---|
| Optical system | Single beam with CT monochromator 1200 l/mm grating |
|---|---|
| Wavelength Range | 190~1000nm |
| Wavelength Setting | Auto |
| Photometric Display Range | 0~200%T, -0.3~3.0A, 0~9999C |
| Band Width | 2nm |
| Scan Speed | 800nm/min |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | 0.5nm |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | 0.3%T |
| Operating modes | T, A, C, F |
| Stability | 0.002A/h @ 500nm |
| Stray Light | ≤0.3%T |
| Standard cell holder | 4-position 10mm cell holder |
| Display | 128*64 Dots LCD |
| Lamps | Deuterium Lamp & Halogen Lamp |
| Detector | Silicon Photodiode |
| Data Output Port | USB |
| Printer port | Parallel |
| Power Requirement | AC 110V-220V 80W |
| Dimension (W*L*H), Weight | 420*280*180mm 15kg |
