Brand:

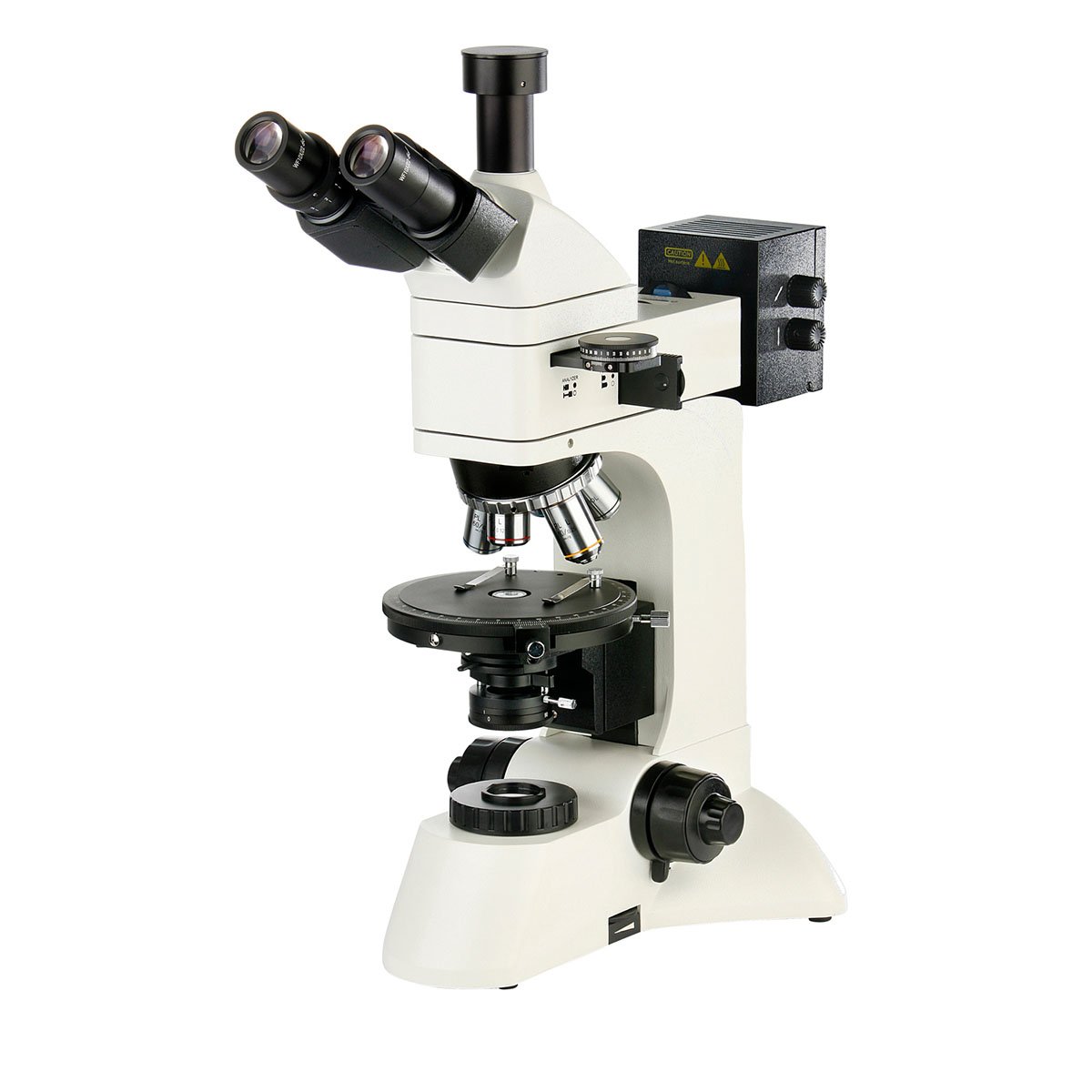

BEL Engineering, Microscope MPL – 1

Categories:

Call for price

[posbadges]

MPL Polarizing Microscopes allow investigation of composition and structure of materials. Polarized light microscopy is primarily used for study of minerals, but also for cements, ceramics, mineral fibers, polymers and biological molecules. These Microscope can exploy both qualitative and quantitative observations and represent an outstanding tool for materials science, geology, biology, chemistry, metallurgy and medicine. These Microscopes allow polarizing observations, orthoscopic and conoscopic observations.

MPL-1 is equipped with Transmitted illumination.

GET QUOTATION

Brand:

BEL Engineering, Microscope MPL – 1

Categories:

Call for price

[posbadges]

MPL Polarizing Microscopes allow investigation of composition and structure of materials. Polarized light microscopy is primarily used for study of minerals, but also for cements, ceramics, mineral fibers, polymers and biological molecules. These Microscope can exploy both qualitative and quantitative observations and represent an outstanding tool for materials science, geology, biology, chemistry, metallurgy and medicine. These Microscopes allow polarizing observations, orthoscopic and conoscopic observations.

MPL-1 is equipped with Transmitted illumination.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

Name                                :  MPL

Optical system                : Infinity corrected optics system

Illumination                     :MPL-1 – Transmitted illumination. Koehler illuminator. Halogen lamp 30Watt with adjustable intensity

Eyepieces                         : Extra Wide field WF10x/22mm and one micrometric 10x eyepiece (0.01mm)

Objectives                        : MPL-1-STRAIN-FREE PLAN ACHROMATIC LONG 4x/0.1; 10x/0.25; 40x/0.65; 60x/0.75

Focusing                           :Macrometric and micrometric coaxial knobs on both sides (0,002mm). Upper limit excursion adjustment. Torque adjustment on coarse focus knob.

Attachment                     : Polarizer and Analyzer. Lambda and &lambda/4 compensators, quartz wedge compensator; Bertrand lens

Revolving nosepiece      :Quintuple nosepiece, rotating and locking at every objective

Type Trinocular
Tube inclination 30° tilted, 360° rotable



Observation tube            :

Interpupillary distance adjustment 55-75mm, dioptric difference adjustment ± 5mm
Light path selector 100% – 0%  or  0% – 100%



Stage                                 :  Rotating stage with divisions (1° increment), diameter 150mm. Center adjustable and with lock. Slide-sample holder with XY translator.

Condenser                       : Abbe condenser, N.A. 1,25; with diaphragm and filter seat. Height and centering are adjustable
