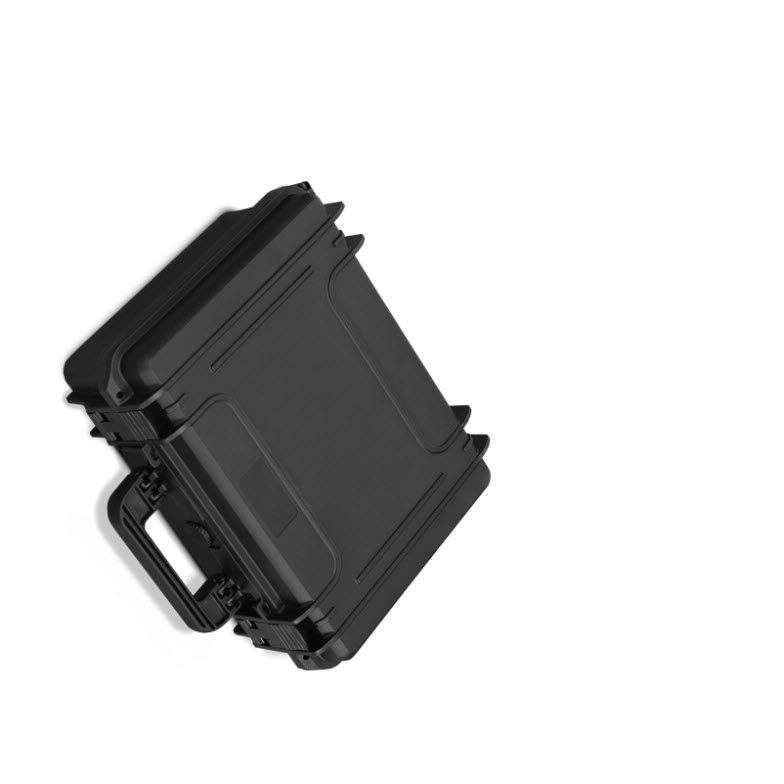

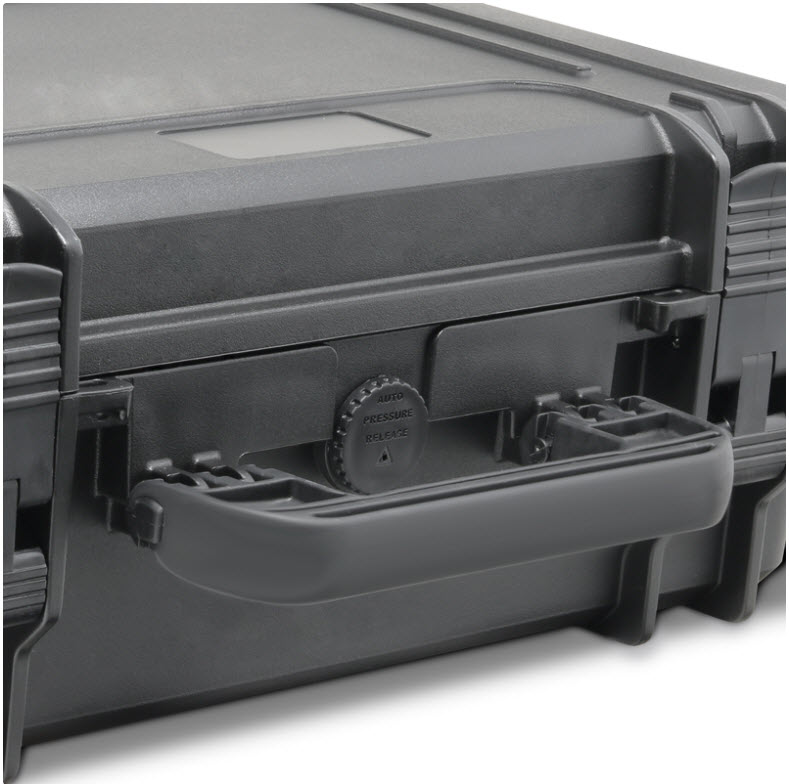

• ABS transport case, with housing for the indicator and space for extra accessories.

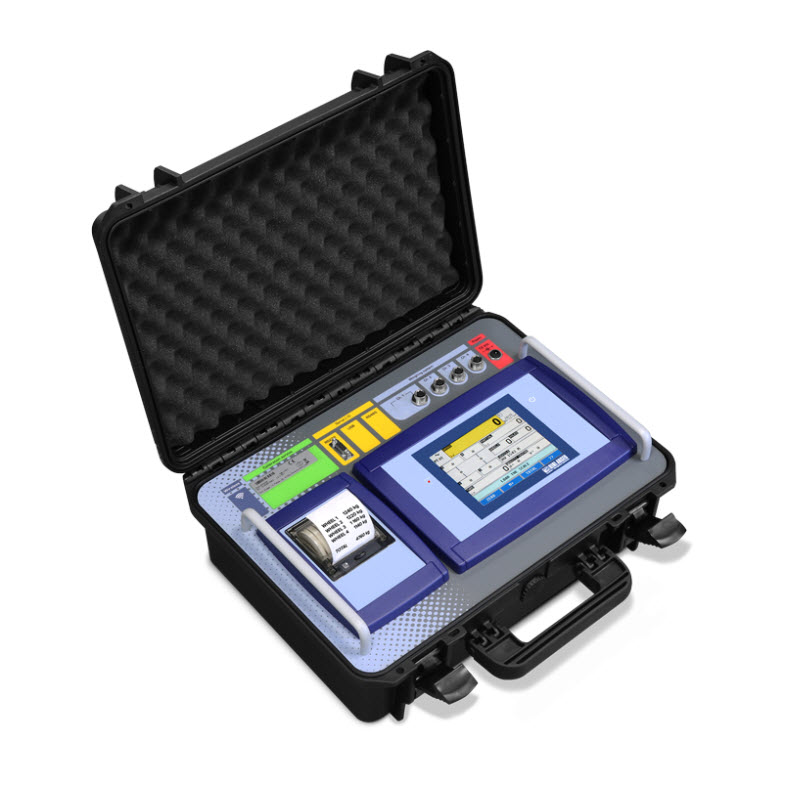

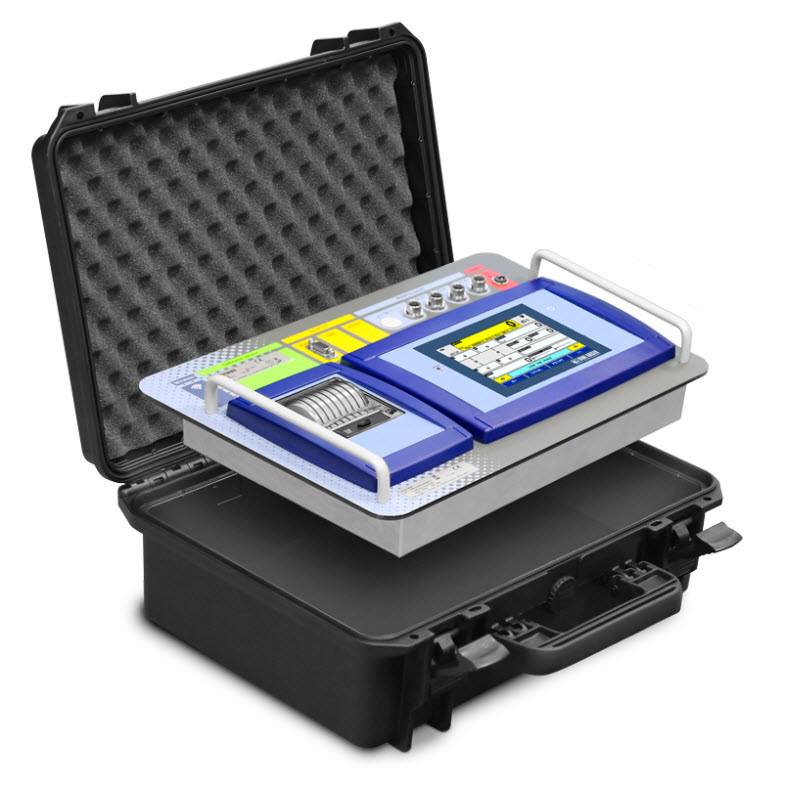

• 3590ET series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for printer, connectors for platforms, and serial output on 9-pole connector.
• Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
• Multilanguage software.
• QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen, selectable.
• Dimensions: 325x460x170 mm. Weight: about 5kg.
• Fitted with attached thermal printer.
• Real time clock and permanent data storage.
• Fitted alibi memory, integrated on the motherboard.
• Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
• Functions available with DINITOOLS utility
  – Configuration, data entry and print formatting.
  – Recording and filing of all the information on PC.
  – Complete retrieval of the configuration.
  – Instrument calibration with numeric values.
  – Customization of the screens.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
• Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
• Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
• Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
• Connectable to printers and labellers with free programmation of the printout formats.
• Power supply through built-in rechargeable battery, the operating time is of about 10 hours.

I/O SECTION

• Available on panel:
  – One RS232 serial ports, for connection to PC, on 9-pole connector.
• Available on internal side:
  – 1 RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.
  – 1 RS232 serial port, for connection to printer, remote scale, badge reader, or digital load cells.
  – Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
  – Up to 4 optoisolated outputs (optional).
  – Up to 2 optoisolated inputs (optional).
