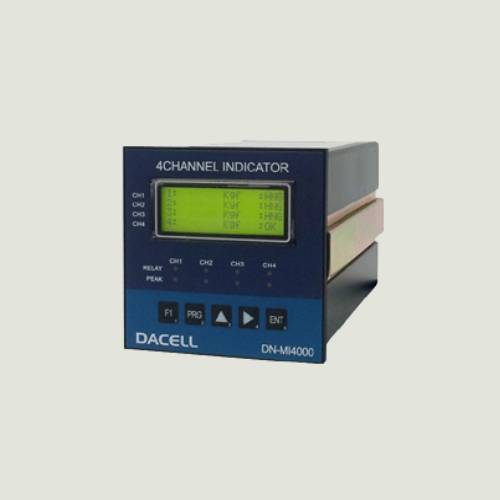

2-4CH indicator – MI4000

Call for price

[posbadges]
  • Model MI4000 can be applied sensor(4ea) based on Input 4ch, output 4ch.
    One touch Auto zero.
  • External data Auto zero function.
  • External data hold function.
  • External data peak hold function.
  • External sample hold function.
  • External full proof average function.
  • External peak to peak function.
  • External program lock function.
  • Application sensor
  • Torque transducer, Load cell, Pressure Transducer, Potentiometer, encoder, RPM sensor, L.V.D.T etc.
  • Option
  • Analogue Auto zero.
  • Analogue Scale zero.
GET QUOTATION

Brand:

2-4CH indicator – MI4000

Call for price

[posbadges]
  • Model MI4000 can be applied sensor(4ea) based on Input 4ch, output 4ch.
    One touch Auto zero.
  • External data Auto zero function.
  • External data hold function.
  • External data peak hold function.
  • External sample hold function.
  • External full proof average function.
  • External peak to peak function.
  • External program lock function.
  • Application sensor
  • Torque transducer, Load cell, Pressure Transducer, Potentiometer, encoder, RPM sensor, L.V.D.T etc.
  • Option
  • Analogue Auto zero.
  • Analogue Scale zero.
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]
SPECIFICATIONS
Temperature storage -10℃ ~ 85℃
Temperature operating 0 ~ 60℃
Relat output AC 125V 0.5A, DC 24V 1A
Transducer excitation 5, 10, 15, 24VDC, ±15VDC
Type of inputs accepted 0.5 ~ 3.5mV/V
Transducer current drive 120mA
Calibration method Front panel switches
Frequency response 5KHz
Full scale output 0~5V, 10V
Low pass filter 10Hz, 100Hz, 1KHz
Temperature drift 0.02% FS/˚C
A/D conversion 16Bit
Sampling speed 500times/sec
Characters displayed 5 digits
Typical accuracy ±0.02%
Polarity indicator Yes
Decimal point selection Push button setup
Display size 14mm & 10mm
Resolution maximum 99999
Type 5X7 DOT 20Digit 4Line
Input/output connector Push button
Weight 1000g
Mounting Panel mounting
Size 96mm × 96mm × 166mm
Power requirements 220V : 50/60Hz(Option 110VAC, DC24V)

2-4CH indicator - MI4000
