Brand: Dini Argeo

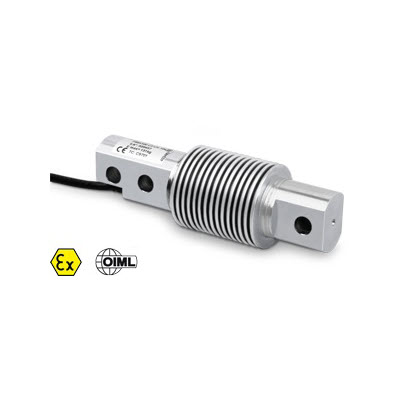

“FXC C6” Series: Bending Beam Load Cells, C6 Class

Categories: Bending Beam Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Max (kg)

Clear

Bending beam load cells for approved weighing, automatic systems, dosage.
CAPACITIES (kg): 20, 50, 100, 200.
OIML R60. C6 precision class.
Stainless steel. IP68 protection.

GET QUOTATION

Brand: Dini Argeo

“FXC C6” Series: Bending Beam Load Cells, C6 Class

Categories: Bending Beam Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Max (kg)

Clear

Bending beam load cells for approved weighing, automatic systems, dosage.
CAPACITIES (kg): 20, 50, 100, 200.
OIML R60. C6 precision class.
Stainless steel. IP68 protection.

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Analog Load Cell, Bending Beam Load Cell, Force Load Tester, Force Sensor, Force Tester, Force Transducer, Load Cell Sensor, Load Cell Transducer, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Strain Gauge Transducer, Strain Sensor, Stress Gauge, Stress Gauge Sensor, Torque Sensing, Weighing Sensor, Weight Scale Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

GET QUOTATION

[woocommerce_variations_table]

MAIN FEATURES

C6 PRECISION CLASS
STAINLESS STEEL
IP68 PROTECTION
MAX. CAPACITIES FROM 20 TO 200 kg
SHIELDED CONNECTION CABLE
OIML CERTIFICATE AVAILABLE UPON REQUEST
TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000
Maximum number of verification intervals: nLC= 6000
Full Scale Output: 2mV/V +/- 1%
Combined error: 0,008% of Full Scale Output (F.S.)
Temperature effect on zero: +/- 0,0014% /°C
Temperature effect on full scale output: +/- 0,0007% /°C
Compensated Temperature Range: –10°C/+40°C
Operating Temperature Range: –20°C/+60°C
Creep error after 30 minutes +/- 0,012% F.S.
Maximum tolerated excitation voltage: 15 VDC
Input Resistance: 385 ± 20 Ohm
Output Resistance: 350 ± 5 Ohm
Insulation Resistance: > 5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 200% F.S.
4-wire shielded cable, 3m long, 4mm diameter.

Additional information

Model	FXC20C6-1, FXC50C6-1, FXC100C6-1, FXC200C6-1
Max (kg)	20, 50, 100, 200
