Brand: CAS
Categories: Floor Scale, Platform Scale, Waterproof Platform scale, Weighing Scale
Call for price
Brand: CAS
Categories: Floor Scale, Platform Scale, Waterproof Platform scale, Weighing Scale
Call for price
Tags: 3 Ton Capacity Platform Scale, 5 Ton Capacity Platform Scale, Cargo, Cargo Scale, Cargo Weighing Scale, Digital Floor Scale, Digital Pallet Scale, Digital Weighing Machine, Digital Weighing Scale, Floor, Floor Scale, Floor Weighing Scale, Heavy Duty Floor Scale, Heavy Duty Platform Scale, Heavy Duty Scale, Heavy Duty Weighing Scale, Industrial Floor Scale, Industrial Platform Scales, Industrial Scale, Industrial Weighing Machine, Industrial Weighing Scale, Large Platform Weighing Scales, Low Profile Floor Scale, Mechanical Floor Scale, Pallet, Pallet Floor Scale, Pallet Scale, Platform, Platform Scale, Platform Weighing Scale, Portable Floor Scale, Scale For Heavy Weight, Stainless Steel Scale, Warehouse Floor Scale, Warehouse Scale, Water-Proof Scales, Waterproof Scale, Weighing Machine

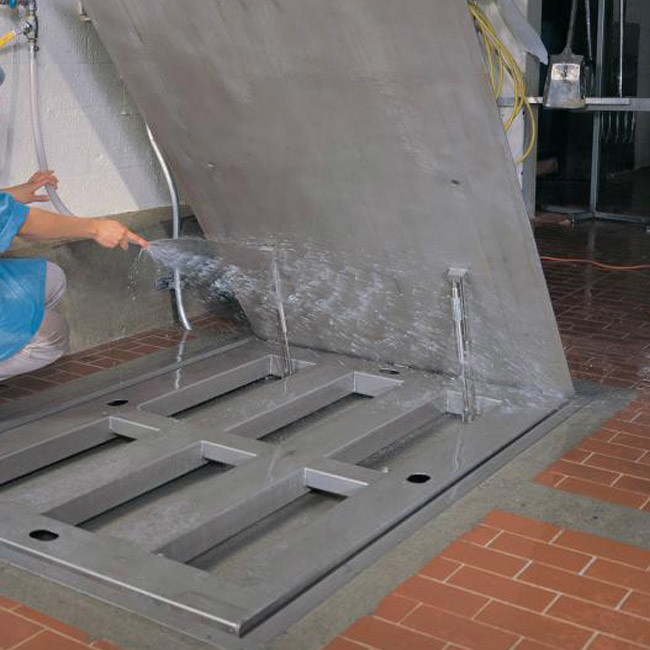

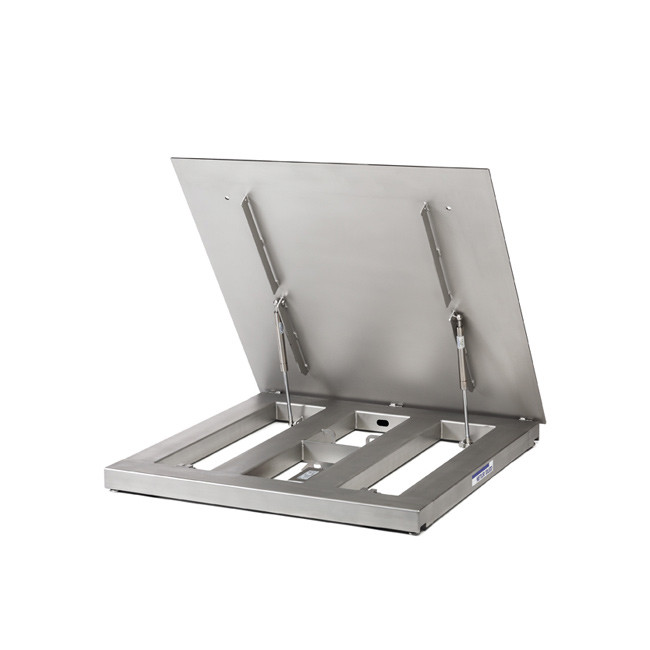

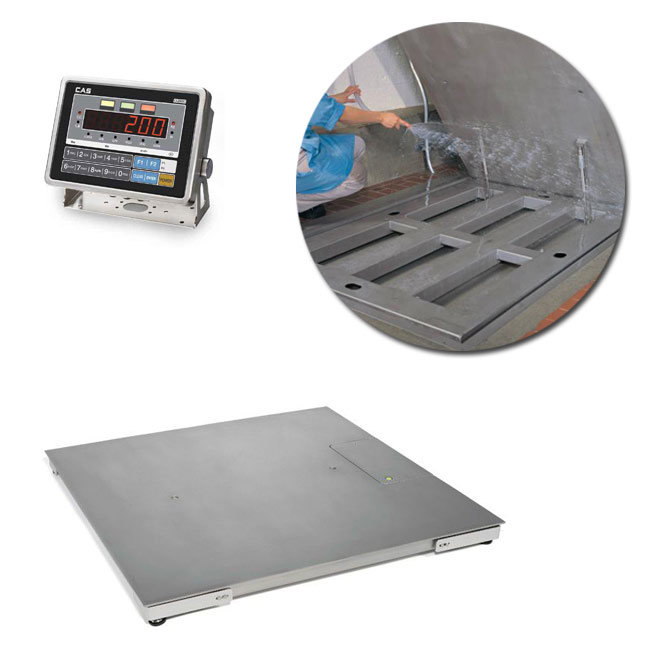

CAS CI200 series is designed for static check-weighing operations along with other bench weighing applications from general-purpose to wash-down. Suitable for use in wet and harsh industrial environments due to its fully stainless steel construction that offers durability and cleanliness.
Features:
-Platform: Heavy-duty, low profile, single deck, Stainless Steel 304
-Indicator: Waterproof Wash-down Stainless Steel IP67, Wall/Desk Mount kit Included
CAS CI-200SC Digital Check-Weigh Indicator series is a compact weighing Indicator with stainless steel housing (IP67). LCD display with check-weigh lights for static check-weighing scales.
Platform Structure is Waterproof Wash-down Stainless Steel and 6 wire and 4 wire load cell support and PC command mode. Applicable for various weighing applications, with the added flexibility of manually setting functions via numeric keys. The CI-200SC series has an internal rechargeable battery and is highly portable and ideal for wet & harsh environments.
The CI-200 Series, a family of digital indicators providing full-featured versatility and dependability at an economical price. A wide array of standard features include either 304 stainless steel IP67 rated or hardened plastic NEMA 12 enclosures, AC or DC operation, choice of dry cell or rechargeable battery, full function numeric keypad, ID capabilities, and much more.
| Model | CI-200S-A-1010-3 | CI-200S-B-1212-5 | CI 200S-C-1515-5 | |
| Capacity x Readability | 3000 Kg
200 gm |
3000 / 5000 Kg
200 / 500 gm |
5000 Kg
500 gm |
|
| Resolution | Internal Degradability: 1/520,000
External Degradability : 1/10,000, (1/30,000 Non approval) |
|||
| Approvals | NTEP COC# 11-026 | |||
| Loadcell Input voltage | DC 5V | |||
| Loadcell connection | 8 @ 350 ohm / 16 @ 1000 ohm | |||
| Zero Calibration | 0~2 mV/V | |||
| Input Sensitivity | Over 2.0μV/D (OIML,NTEP), 0.5 μV/D(Non approval) | |||
| Digits | 6 digits (weight) | |||
| Display | 6 Segment 1 inch / 25 mm LED
3-color weight distinguishing LED (CI-200SC) |
|||
| Display Designators | ZERO, TARE, GROSS, NET, STABLE, UNIT | |||
| A/D Conversion speed | 80 times/sec | |||
| Water Proof Grade | IP67 | |||
| Load Cell | 4 nos. of standard OIML Stainless steel shear beam type | |||
| Keys | 10 numeric keys, 2 function keys | |||
| Functions | Unit Conversion, Hold, Accumulation, TARE, Net, Gross, Zero, Check Weight Auto Calibration, Time and date, Auto Zero, livestock stabilization, Illumination Level, Auto-off, ID capabilities, | |||
| Interface | RS-232C | |||
| Operating Temp | -10°C ~ 40°C / 14°F ~ 104°F | |||
| Power | DC 12V , AC 100~240 V adaptor, 6V battery | |||
| Battery Life Time | Approx. 26 hours | |||
| Battery charging time Approx. | Approx. 12 hours | |||
| Platter Size (CM) | 1.0×1.0 | 1.2×1.2 | 1.5×1.5 | |
| Dimensions (CM) | 100x100x10 | 120x120x10 | 150x150x10 | |
| Product Weight (approx.) | 120 kg | 150 kg | 180 kg | |
| Warranty | 1 Year | |||
| Model / Part no. | CI-200SC-W1010-3, CI-200SC-W1212-3, CI-200SC-W1515-5 |
|---|---|
| Capacity / Division | 500~3000 kg/ 0.1~0.2 kg, 500~3000 kg/ 0.2~0.5 kg, 3000~5000 kg/ 0.2~0.5 kg, 3000~5000 kg/ 0.5~1 kg |
| Platform Size | 100x100cm (1x1m), 120x120cm (1.2×1.2m), 150x150cm (1.5×1.5m) |
| Scale Capacity Range (Platform) | 1,500-3,000 kg (1.5-3 ton), 4,000-5,000 kg (4-5 ton), 400-600 kg, 700-1,000 kg |
| Placement | |
| Material |
