SiGMA SWH2 Series – Heavy Duty Wireless High Temperature Proof Crane Scale

Categories: Hanging & Crane Scale

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Weighing Scale Capacity

Scale Division

Clear

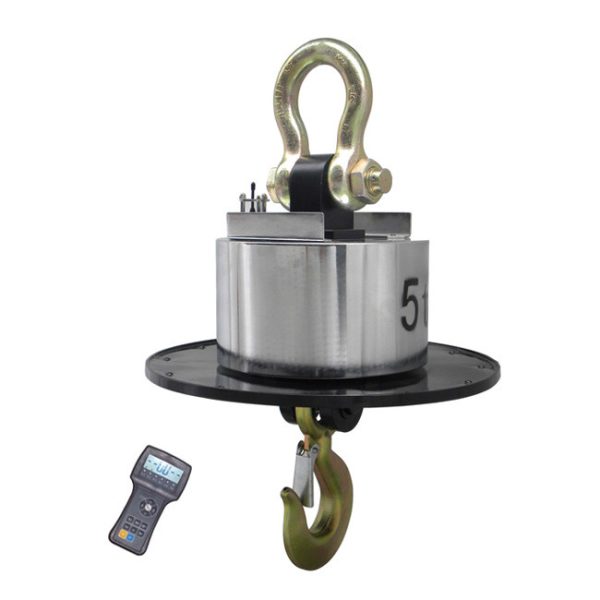

The OCS SWH2 is manufactured with special and advance features to handle all type of requirements for high temperature heat resistance scale which can be used in industries which will be having high temperature.

Wireless proof high-temperature crane scale
Body Structure: Steel housing
American Standard shackle and 360 degrees’ swivel hook

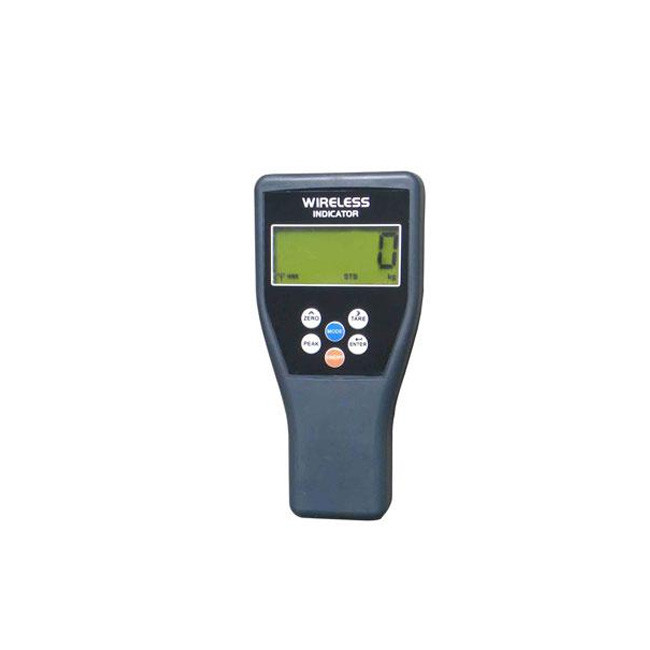

Wireless hand held indicator with LCD Display
Units: Kg/ Lb.
Used under high temperature environment. Especially in casting industry.
Functions: Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function
Power: 6V/4Ah rechargeable NI-H Battery, DC 4.8 V / 2.8 Ah rechargeable battery
Over Load Protection with alarm

GET QUOTATION

Brand: SiGMA

SiGMA SWH2 Series – Heavy Duty Wireless High Temperature Proof Crane Scale

Categories: Hanging & Crane Scale

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Weighing Scale Capacity

Scale Division

Clear

Wireless proof high-temperature crane scale
Body Structure: Steel housing
American Standard shackle and 360 degrees’ swivel hook
Wireless hand held indicator with LCD Display
Units: Kg/ Lb.
Used under high temperature environment. Especially in casting industry.
Functions: Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function
Power: 6V/4Ah rechargeable NI-H Battery, DC 4.8 V / 2.8 Ah rechargeable battery
Over Load Protection with alarm

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

The Heavy duty crane scale is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weighed or to measure force in high temperature environment.

Features:

Steel plate with heat-resistant material inside.
Seamless steel pipe enclosure for maximum protection.
Menu operation mode, calibration, saving, searching, peak hold, easy to operate
Indicator Adopts I: -.0. A/D conversion technology.
Weighing data save protection in case of power off.
Battery charger with several protection modes to extend life of rechargeable battery.
Standard RS232 communication interface(optional).
Portable design, indicator packed in portable carry case, easy to operate outdoor.
Gathering up to data records of 99 weighing, records can be sorted, searched.
Power saving mode, indicator will turn off automatically after 30minutes with no operation.
With 32 channels optional, so 32 crane scales can operate independently in the same air place without interface.
Special design: Used under high temperature environment. Especially in casting industry.
Multi-function： Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function.
User-friendly design： LCD with backlight, Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.

Accessories:

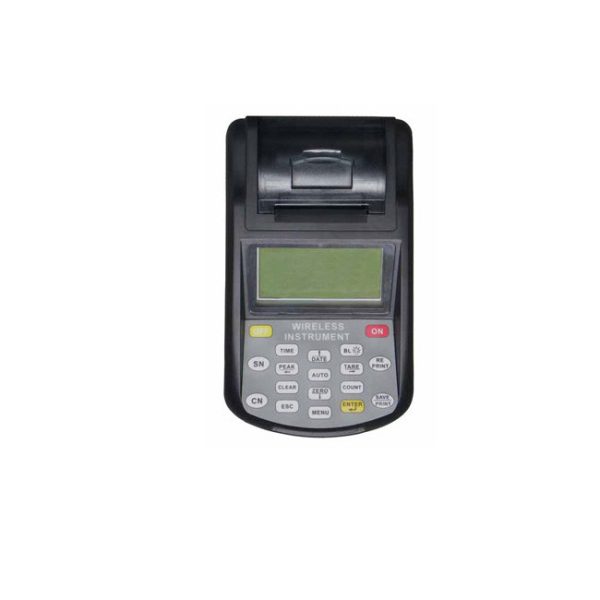

Wireless Display Remote Control with Printer
Battery

MODEL	A(mm)	C(mm)	Φ1(mm)	E(mm)	Φ2(mm)	H(mm)	N.W.(kg)
OCS-SWH2-1	67	353	270	160	400	450	45
OCS-SWH2-2	95	40	270	160	400	510	47
OCS-SWH2-3	113	50	270	185	520	625	53
OCS-SWH2-5	122	60	325	185	520	710	62
OCS-SWH2-10	144	70	325	185	520	835	87
OCS-SWH2-15	166	85	325	185	520	900	100
OCS-SWH2-20	260	90	325	200	620	1055	130
OCS-SWH2-30	265	100	375	220	620	1140	210
OCS-SWH2-50	360	160	450	280	750	1680	575

Additional information

Weight	N/A
Scale Capacity Range (Crane)	12-20 Ton, 25-50 ton, 5 Ton, 9-10 ton
Model	HS-SWH2-05, HS-SWH2-10, HS-SWH2-15, HS-SWH2-20, HS-SWH2-30, HS-SWH2-50
Capacity / Division	5 ton / 2 kg, 10 ton / 5 kg, 15 ton / 5 kg, 20 ton / 10 kg, 30 ton / 10 kg, 50 ton / 20 kg
Weighing Scale Capacity	10 Ton, 15 Ton, 20 Ton, 30 Ton, 5 Ton, 50 Ton
Scale Division	10kg, 20kg, 2kg, 5kg
Type of display	LCD
Units	kg, lb (pound)
Power Supply	Built in rechargeable battery
Interface	RS232, Wi-Fi
Placement	Hanging
