Brand: Dini Argeo

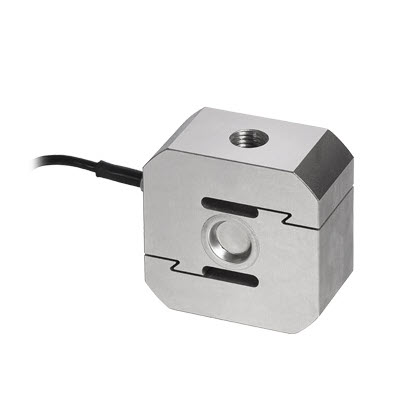

STFC Series Tension Load Cells

Categories: Tension Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Max (kg)

Clear

Tension load cells CE-M approved for suspended weighing of hoppers, tanks, etc.
CAPACITIES (kg): 2000, 5000, 10000.
OIML R60. C3 precision class.
Nickel-plated steel. IP67 protection.

GET QUOTATION

Brand: Dini Argeo

STFC Series Tension Load Cells

Categories: Tension Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Max (kg)

Clear

Tension load cells CE-M approved for suspended weighing of hoppers, tanks, etc.
CAPACITIES (kg): 2000, 5000, 10000.
OIML R60. C3 precision class.
Nickel-plated steel. IP67 protection.

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Analog Load Cell, Crane Load Cell, Force Load Tester, Force Sensor, Force Tester, Force Transducer, Load Cell Sensor, Load Cell Transducer, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Strain Gauge Transducer, Tension Load Cell, Torque Sensing, Weighing Sensor, Weight Scale Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

GET QUOTATION

[woocommerce_variations_table]

MAIN FEATURES

C3 PRECISION CLASS
NICKEL-PLATED STEEL CONSTRUCTION
IP67 PROTECTION LEVEL
MAX. CAPACITIES FROM 2000 TO 10000 kg
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000
Maximum number of verification intervals: nLC = 3000
Combined error: 0,02% of Full Scale Output (F.S.)
Full Scale Output: 2mV/V +/- 0,1%
Temperature effect on zero: 0,0013% /°C
Temperature effect on full scale output: 0,0014% /°C
Compensated Temperature Range: –10°C/+40°C
Operating Temperature Range: -20°C/+60°C
Creep error after 4 hours: 0,03% F.S.
Maximum tolerated excitation voltage: 10 VDC
Input Resistance: 1100 Ohm
Output Resistance: 1000 Ohm
Zero balance: +/-1% F.S.
Insulation Resistance: >5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 300% F.S.
4-wire shielded cable, 5m long, 5mm diameter

Additional information

Model	STFC2000, STFC5000, STFC10000
Max (kg)	2000, 5000, 10000
