Brand: Shimadzu
Call for price
Economical Analytical Balance Equipped with UniBloc
Call for price
Economical Analytical Balance Equipped with UniBloc
The ATX balance has built-in motor-driven calibration weights.
Sensitivity can be calibrated whenever needed by a single keypress.
A built-in piece counting function enables balances to be used as parts counters (piece scales).
This displays pass, high, or low judgments.
This is convenient when formulating (preparing) multiple substances.
Measures a percentage value with respect to a preset reference.
In addition to grams (g), weigh in ct, mg, oz, etc. or a custom conversion units.
Compare samples to target values or pass/fail criteria and clearly
indicate the results.
Send balance data to Excel or other Windows applications
without any data communication, software installation required.
By combining standard AutoPrint functions with typical
spreadsheet functions, even difficult applications can be easily
automated.
*RS232C interface is needed.
| Model | ATX84 | ATX124 | ATX224 | ATX324 | ATY64 | ATY124 | ATY224 | ATY324 |
| Capacity | 82 g | 120 g | 220 g | 320 g | 62 g | 120 g | 220 g | 320 g |
| Minimum Display | 0.1 mg | |||||||
| Repeatability (Standard Deviation) | ≤0.1 mg | |||||||
| Linearity | ±0.2 mg | |||||||
| Stabilization Time*1 | Approx. 3.0 seconds | |||||||
| Operating Temperature and Humidity Limits | 5-40°C 20-85%*2 | |||||||
| Temperature Coefficient for Sensitivity (10-30°C) | ±2ppm/°C | |||||||
| Pan Size (mm) approx. | Φ91 | |||||||

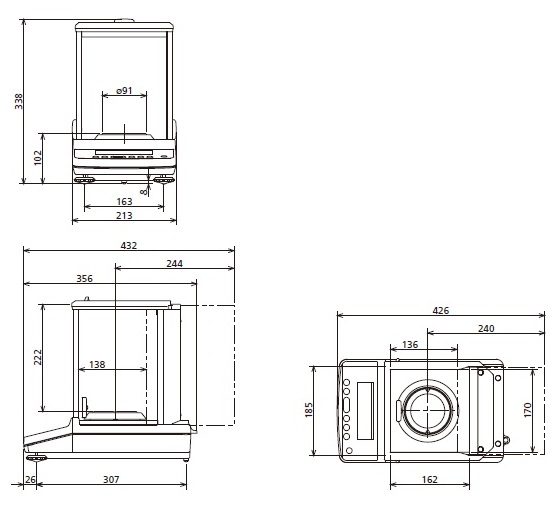

| Main Body Dimensions (mm) approx. | 213(W) x 356(D) x 338(H) | |||||||
| Main Body Weight (kg) approx. | 6.2 | 6.0 | ||||||
| Power requirement | 12V, 1A | |||||||
| Internal Calibration | ✔ | |||||||
*1 The Stabilisation time is a representative value
*2 No condensation
