Brand: Sens

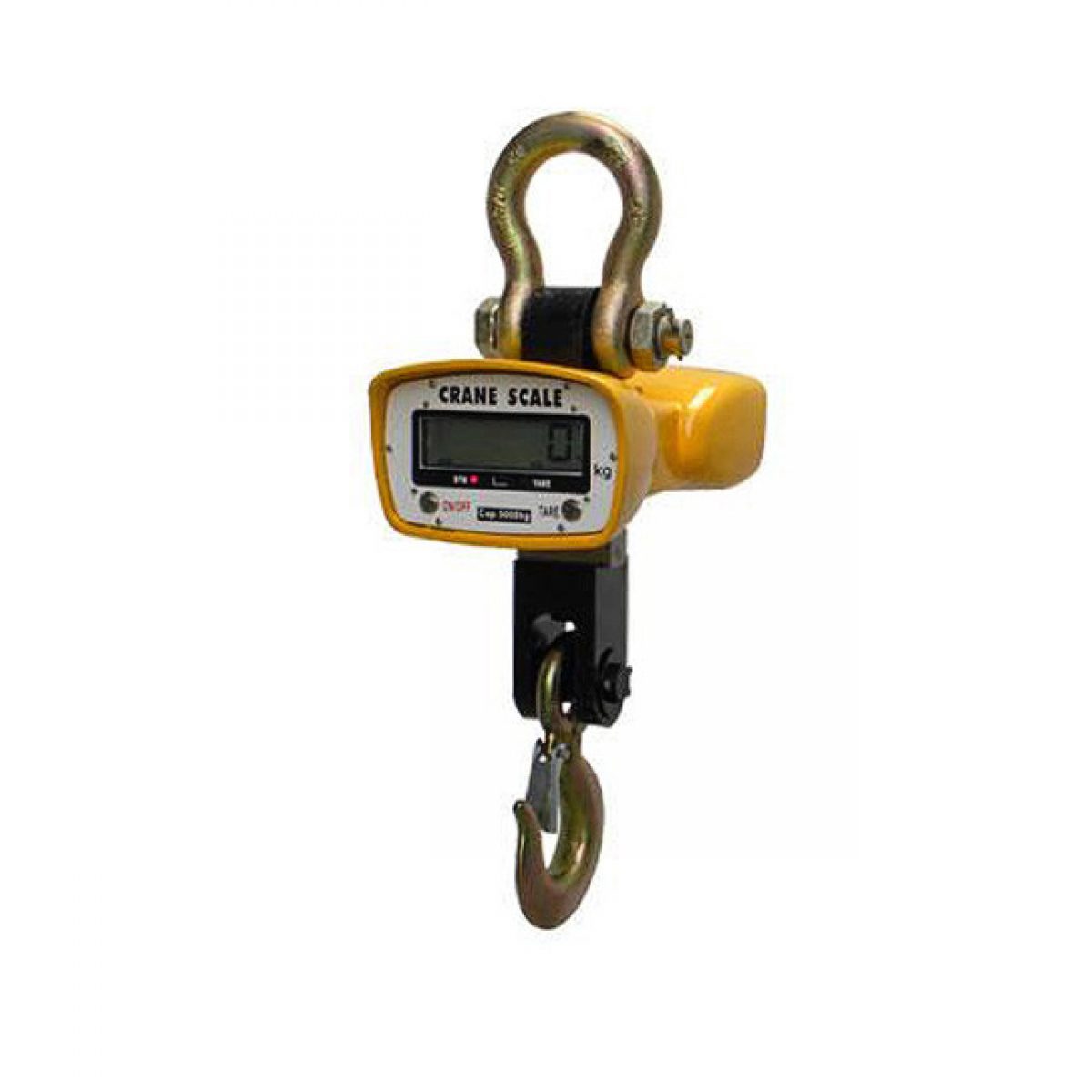

SENS SW Series – Heavy Duty Crane Scale

Categories: Hanging & Crane Scale

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Weighing scale capacity

Scale division

Clear

The OCS SW is manufactured with special and advance features to handle all type of requirements for heavy industrial usage.

Heavy Duty Crane scale.
Body Structure: Heavy Duty Case
Display: 30mm LED display
Capacity: 5 ton – 20 ton
Infrared Remote Control
Units: Kg/ Lb. / N
Resolution (Division) switch
Functions: Units Conversion, Hold, TARE, Zero, Total Accumulation, Calibration, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
Power: AC/DC with Rechargeable battery
Over Load Protection with alarm

GET QUOTATION

Brand: Sens

SENS SW Series – Heavy Duty Crane Scale

Categories: Hanging & Crane Scale

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Weighing scale capacity

Scale division

Clear

The OCS SW is manufactured with special and advance features to handle all type of requirements for heavy industrial usage.

Heavy Duty Crane scale.
Body Structure: Heavy Duty Case
Display: 30mm LED display
Capacity: 5 ton – 20 ton
Infrared Remote Control
Units: Kg/ Lb. / N
Resolution (Division) switch
Functions: Units Conversion, Hold, TARE, Zero, Total Accumulation, Calibration, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
Power: AC/DC with Rechargeable battery
Over Load Protection with alarm

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

Enclosure: NEMA 12/IP54 powder coated Foundry Cast Aluminum.
Multi-weighing units: Kg, lb are selectable, kg is default unit.
Multi-function operation: are, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
User-friendly design: Large red 5 digit LED display.
Low battery indication, Automatic turn off, power-saving function.
Accuracy: According to OIML class Ⅲ.
DISPLAY: 30 mm (1.2″) 5digits LCD/LED.
Battery: Fully sealed Lead-Acid battery, 6V/7Ah, can reach 70hours continuous working.
Adapter: DC 9V/1000mA
Ultimate Load: 400% of capacity.
Operation temperature: -20℃ to 50℃
Gravity regulation: The acceleration of gravity can be regulated through wireless indicator according to different places value.
Multi options: RS-232-continuous or on demand data output, user-selectable Wireless big screen 3″, 5″, wireless handheld indicator 180, 280 380,and 580 can match with the scale, user- selectable.

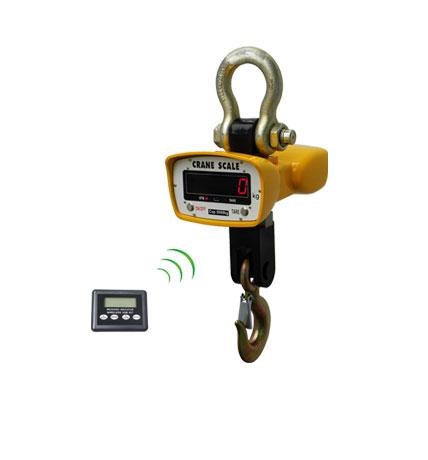

RF wireless palm indicator. (Optional)
580 Indicator communications (Optional): Both RS232 serial port and USB port solve most laptops without serial port problem. with the Everight company’s PC host computer software, not only display weigh value and stable information on the PC, can also enter company’s name, complete storage, print query and other functions
Antenna: Internal antenna for Wireless indicators and printer

Accessories:

Remote Control
Battery

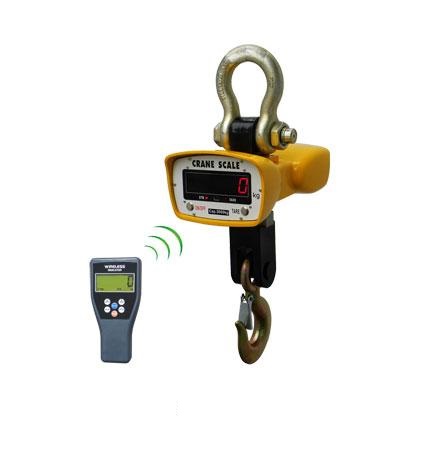

380 Wireless Hand held display (optional)

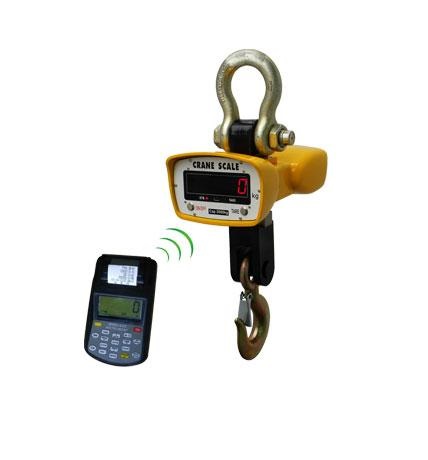

580 Wireless Hand held Indicator with printer (optional)

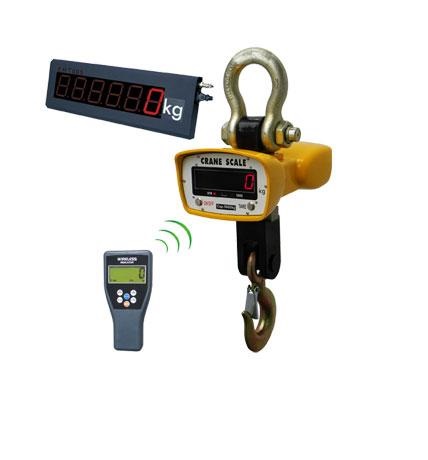

Wireless Bright LED Large Display (optional)

MODEL	A(mm)	B(mm)	C(mm)	H(mm)	N.W.(kg)
HS -SW-5	113	365	50	625	30
HS -SW-10	122	365	60	760	45
HS -SW-15	144	365	70	835	80
HS -SW-20	166	365	85	900	85

Additional information

Weight	N/A
Scale Capacity Range (Crane)	12-20 Ton, 5 Ton, 9-10 ton
Model	HS-SW-05, HS-SW-10, HS-SW-15, HS-SW-20
Capacity / Division	5 ton / 2 kg, 10 ton / 5 kg, 15 ton / 5 kg, 20 ton / 10 kg
Weighing scale capacity	10 Ton, 15 Ton, 20 Ton, 5 Ton
Scale division	10kg, 2kg, 5kg
Type of display	LED
Units	kg, lb (pound)
Power supply	AC/DC Adapter
Placement	Hanging

SENS SW Series – Heavy Duty Crane Scale

GET QUOTATION

SENS SW Series – Heavy Duty Crane Scale

GET QUOTATION

Additional information

Related products

SENS OCS – K Crane Scale – 10 Ton

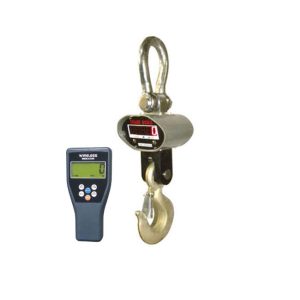

SiGMA SZL Series – W3 – Heavy Duty Wireless Crane Scale with 380 Handheld indicator – 30 Ton

SENS C series – 1~5 ton max capacity range – LED

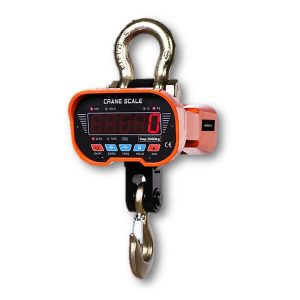

SENS A series – 1-20ton Heavy Duty Crane Scale

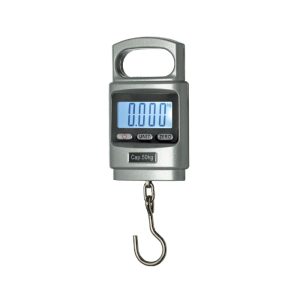

SENS L Series – 50 Kg, 150 Kg, 300 Kg – Hanging and Crane Scale

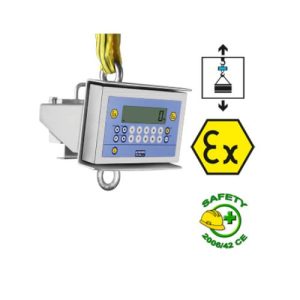

DINI ARGEO MCWN “NINJA” Series
