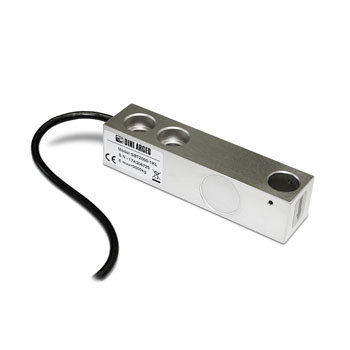

MAIN FEATURES

• C3 PRECISION CLASS
• NICKEL-PLATED CONSTRUCTION
• POTTED SEAL, IP67 PROTECTION
• MAX. CAPACITIES FROM 500 TO 2500 kg
• SHIELDED CONNECTION CABLE
• TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

• Minimum load cell verification interval Vmin = EMax / 10.000
• Maximum number of verification intervals nLC = 3000
• Combined error 0,017% of Full Scale Output (F.S.)
• Nonlinearity ± 0.02% FS
• Hysteresis ± 0.02% FS
• Repeatability ± 0.01% FS
• Full Scale Output 2mV/V ± 0.5%
• Zero balance ± 1% FS
• Compensated Temperature Range -10°C/+50°C.
• Operating Temperature Range -20°C/+60°C.
• Creep error after 30 minutes <0,02% F.S. Maximum tolerated excitation voltage 15 Vdc Input Resistance 1085 ± 10 Ohm Output
• Resistance 1000 ± 5 Ohm Insulation Resistance >5000 MOhm
• Safe Overload 120% F.S.
• Ultimate Overload 300% F.S.
• 6-wire shielded cable, 3,5m long, 5 mm diameter

DIMENSIONS – DECODING STANDARD CABLE

• NOTE: dimensions in mm

Decoding of the standard cable colours
