Brand: Rice Lake
Categories: Hanging & Crane Scale
Call for price
Call for price
Tags: Petrascale

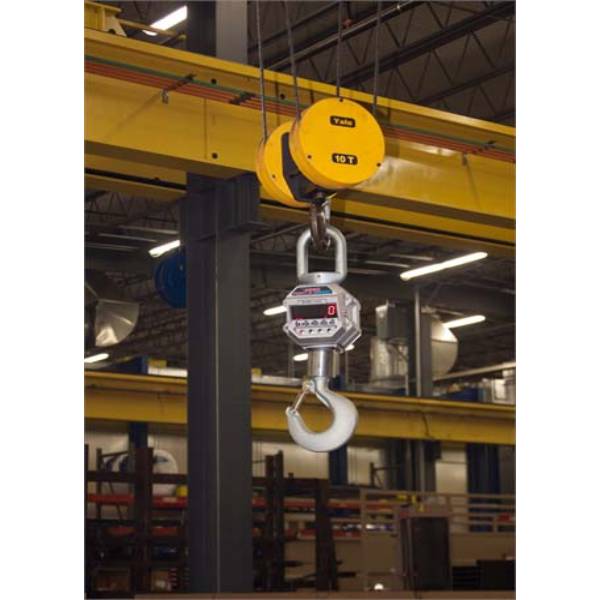

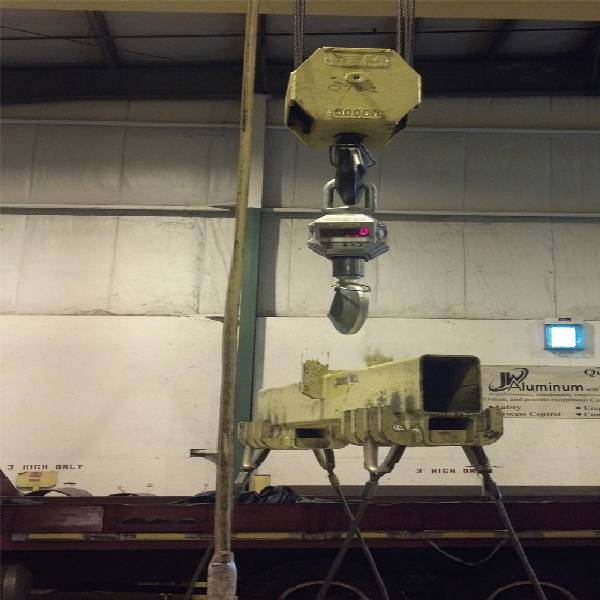

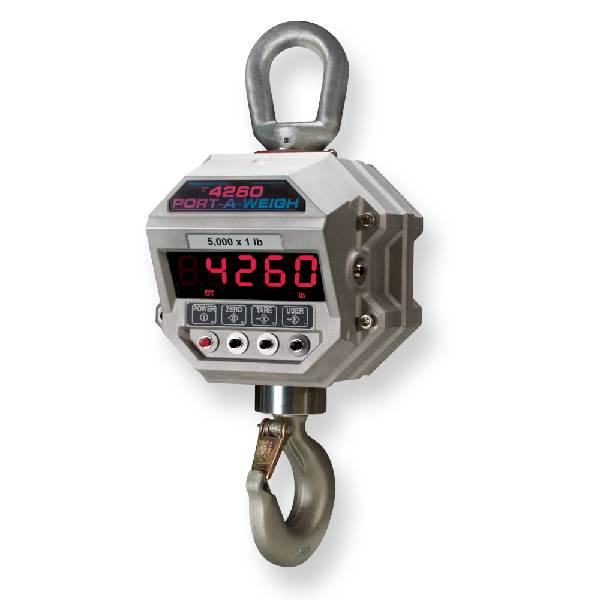

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.
| Accuracy: ± (0.1% +1 d) of applied loadResolution: 3,000 to 5,000 d standard (up to 10,000 d available)Enclosure: NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminumInstrinsic Safety: US Listings FM16US0156X IS / I, II, III / 1 / CDEFG / T4 Ta = -20°C to 50°C I / 0 / AEx ia / IIB / T4 Ta = -20°C to 50°C Ga 20 / AEx ia / IIIC / T135°C Ta = -20°C to 50°C DaCanadian Listings FM16CA0092X IS / I / 1 / CD / T4 Ta = -10°C to 50°C IS / II, III / 1 / EFG / T4 Ta = -10°C to 50°C I / 0 / Ex ia / IIB / T4 Ta = -10°C to 50°C Ga 20 / Ex ia / IIIC / T135°C Ta = -10°C to 50°C DaATEX Listings FM16ATEX0038X II 1 G Ex ia IIB T4 Ga -10°C ≤ Ta ≤ 50°C II 1 D Ex ia IIIC T135°C Da -10°C ≤ Ta ≤ 50°C |
Lifting Eye, Shackle & Hook: Crosby® or equal with 360° thrust-bearing swivel hookDesign Overload: 200% Safe / 500% Ultimate (except where noted)Functions: Power: Turns unit on or off Zero: Zeros applied load up to 100% of capacity (limited range in NTEP Certified configuration) Tare: Tares applied load and displays weight in Net mode F1: Programmable as test, units, net/gross, total and peak holdDisplay: Five-digit, 1.2 in (30 mm) LED with programmable brightness controlDisplayable Units: Pounds or kilograms selectableAnnunciators: COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, SetpointsPower: 12 volt rechargeable battery. 115/230 VAC approved battery charger is included |
Operating Time: Up to 200 hours between charging with typical useAuto-Off Mode: Select for 15, 30, 45 minutes, 1 hour or OffAuto Sleep Mode: Power down during non-use and power up with weight change or any key pressService Counters: Counts number of lifts over percentage of capacity and lifts over capacityCalibration: DigitalFiltering: OFF, LO, HI-1, HI-2 selectableWarranty: One-year limited warrantyApprovals: NTEP CC 19-122 cFMus CE Pending |
| Type of display | LED |
|---|---|
| Placement | Hanging |
