DINI ARGEO MCW09 series – Professional Heavy Duty Crane Scale

Categories:

Call for price

[posbadges]
  • Single security system, for the lifting and the weighing of the load.
  • Available Capacities: 3000Kg to 50000Kg
  • Extremely bright large red DOT LED 40mm display
  • Adjustable brightness intensity
  • Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
  • Programmable digital filter
  • Fitted with radiofrequency 6-key remote control
  • Functions: Peak, Hold, Weighing totalization, lb/kg/N conversion, +/- checkweighing, Percentage weighing, Peer-to-peer, High Resolution Weighing x 10.
GET QUOTATION

Brand:

DINI ARGEO MCW09 series – Professional Heavy Duty Crane Scale

Categories:

Call for price

[posbadges]
  • Single security system, for the lifting and the weighing of the load.
  • Available Capacities: 3000Kg to 50000Kg
  • Extremely bright large red DOT LED 40mm display
  • Adjustable brightness intensity
  • Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
  • Programmable digital filter
  • Fitted with radiofrequency 6-key remote control
  • Functions: Peak, Hold, Weighing totalization, lb/kg/N conversion, +/- checkweighing, Percentage weighing, Peer-to-peer, High Resolution Weighing x 10.
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]
  • Extremely bright large red DOT LED 40mm display, which guarantees a perfect visibility of the weight from any angle, also from a long distance with direct sunlight.
  • Usable indoors as well as outdoors, great visibility also in full sunlight.
  • Adjustable brightness intensity.
  • Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.

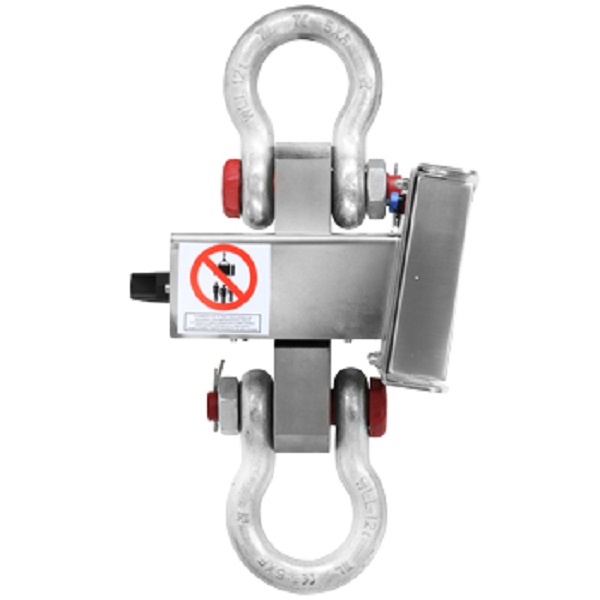

  • Fitted with approved galvanized shackles:
  • Extremely reduced distance between upper and lower shackles.

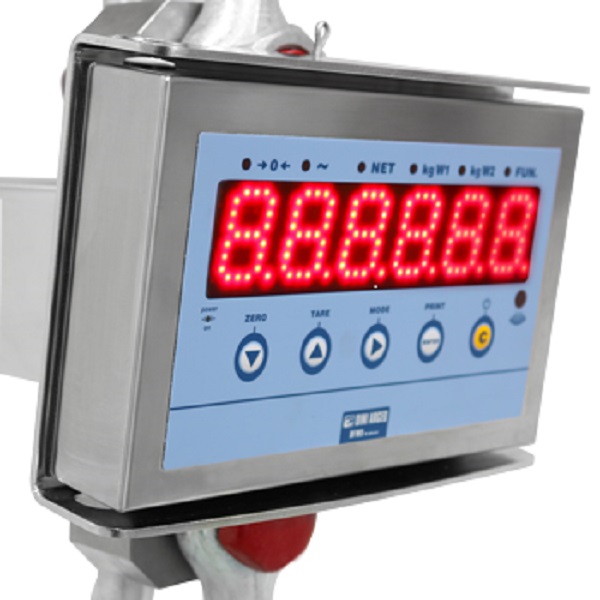

  • 5-key waterproof keypad: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
  • Programmable digital filter, for an excellent weight display in any working condition.
  • Programmable automatic switch-off function, either through keypad or remote control.
  • Fitted with radiofrequency 6-key remote control, configurable as simple automatic tare or as a remote keypad.
  • Configured for an 868MHz radio interface or WiFi, for connection to PC or to a remote terminal and printer.
  • Rechargeable battery, with an average life of about 30 hours.
  • Configured for a second optional extractable battery for 24/7 continuous use.
  • Fitted with 230Vac 50 Hz battery charger.
  • Programmable digital calibration and Set-Up directly from the keypad or from PC through Dinitools.
  • Operating temperature range: -10/+40 ºC.



Accessories:

  • Remote Control
  • DGT100: MAXI WEIGHT INDICATOR-REPEATER
  • IP65 MULTIFUNCTION WEIGHT INDICATORS ” DFW XP “
  • “WEIMONITOR”: SOFTWARE FOR MANAGING THE WEIGHS FOR DINI ARGEO SCALES
  • Galvanized swivel hook

Additional information

Weight N/A
Scale Capacity Range (Crane)

, ,

Model

MCW09T3-1, MCW09T6-1, MCW09T9-1, MCW09T12-1, MCW09T17-1, MCW09T25-1, MCW09T30-1, MCW09T50-1

Capacity / Division

3 ton / 1 kg, 12 ton / 5 kg, 25 ton / 10 kg, 30 ton / 20 kg, 50 ton / 20 kg

Weighing scale capacity

12 Ton, 17 Ton, 25 Ton, 3 Ton, 30 Ton, 50 Ton, 6 Ton, 9 Ton

Scale division

10kg, 1kg, 20kg, 2kg, 5kg

Interface

Wi-Fi

Type of display

LED

Placement

Hanging
