MAIN FEATURES:

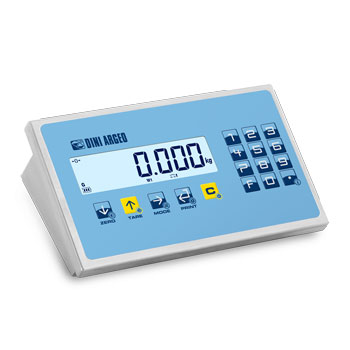

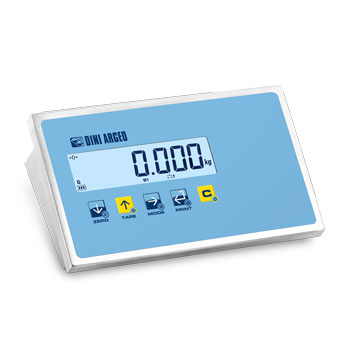

• 5/17-key functional waterproof keypad, with indication for quick access to main functions and regulations.
• LCD 25mm backlit display with 6 high contrast digits and icons for indication of active functions.
• Waterproof IP68 STAINLESS STEEL case, with sealed rubber gasket, easy to clean and resistant in harsh and corrosive environments.
• Dimensions in mm: 243x145x78,4 mm.
• Suitable for use on the table, column, or wall.
• A/D 24 bit converter, 4 channels, up to 200 conv./sec. autoselect and up to 8 signal linearisation points.
• Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
• Up to 1.000.000 displayable divisions with built-in resolution up to 3.000.000 points.
• Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.
• Digital calibration and set-up from keypad or from PC with DINITOOLS.
• Power supply 110 – 240 VAC.

I/O SECTION

• RS232/C port configurable for connection with printer/labeller, or for attached printer.
• RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem.
  Quick RJ RS232 plug connection.

KEYBOARD FUNCTIONS

• Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, backlit setting, function mode quick selection, user menu.

MASTER/REPEATER OPTION

• Specific program (MSTSLV code) for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.FUNCTIONING MODES:
• Multi-scale repeater (MASTER):
  function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
• UNIVERSAL weight repeater:
  function which allows to repeat the weight of any scales, through the configuration of the input string.

AVAILABLE FUNCTIONS FROM REMOTE CONTROL

• Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.

MAIN CERTIFICATIONS

• EU Type Examination Certificate (45501:2015)
• OIML R76
• Australian legal for trade certificate of approval (NMI S788)

SELECTABLE FUNCTION MODES

• The user can select the operating modes directly using the dedicated key*:
  – High resolution display x 10
  – Precision weighing with temporary recalibration via a sample weight (for internal factory use)
  – Net/Gross
  – Newton to Kg converter
  – Lb to Kg converter
  – Free conversion factor (for meter and litre counters etc.)
  – Weight totalizer
  – Formulizer
  – +/- controller with quick target and threshold input
  – Percentage weighing

The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board.

• Optional functions:
  – PEAK, detection of weight peaks (code DFWPK)
  – Newton to Kg converter (code DFWPK)
• Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.

AVAILABLE LANGUAGES FOR PRINTING

IT, EN, FR, DE, ES, PT, CN*, EL*

* For Chinese and Greek programming of the printer/labeler is required (S1, only at the time of order)
