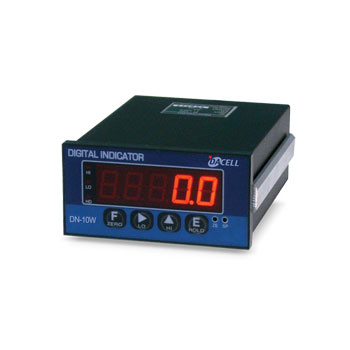

Dacell, DN10W- panel weight controller

Categories: Indicators & Controllers, Weighing Controller

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

The product has designed specifically to operate with strain gauge sensors such as Fast-measurement of Load cell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.
High resolving power (16bit A/D)
High precision (more than 0.012% F.S) and stability
Quick sampling speed (100times/sec)
Built-in Shunt calibration switch
Watchdog
Small size(96*48*128mm) / Cutting size : 92*45mm
Weight: about 700g
Option: Power Input 24V in accordance with customer request

Made in Korea

GET QUOTATION

Name *

Email Address *

Phone Number *

Company

Subject

Your Message0 / 180

Brand: Dacell

Dacell, DN10W- panel weight controller

Dacell, DN10W- panel weight controller

Categories: Indicators & Controllers, Weighing Controller

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

The product has designed specifically to operate with strain gauge sensors such as Fast-measurement of Load cell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.
High resolving power (16bit A/D)
High precision (more than 0.012% F.S) and stability
Quick sampling speed (100times/sec)
Built-in Shunt calibration switch
Watchdog
Small size(96*48*128mm) / Cutting size : 92*45mm
Weight: about 700g
Option: Power Input 24V in accordance with customer request

Made in Korea

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Digital Weight Indicator, Load Cell Display, Load Cell Indicator, Weighing Components and Accessories, Weighing Controller, Weight Controller, Weight Indicator

GET QUOTATION

[woocommerce_variations_table]

SPECIFICATIONS

Specifications	Accuracy
Specifications	DN15W	DN10W
Application sensor	Strain gauge sensor (350Ω or 700Ω)
Sensor authorized voltage (the number of Loadcell connection)	DC 5V, Loadcell(350Ω) available 4
Zero adjustment range	100% F·S (Auto Zero)
Input signal	0.5 ~ 3mV/V
Display	-19999~99999
Display speed	Approx 30times/sec(Adjustment available by buff setting)
Character height	7Segment 5 digit LED 14mm
Decimal point	Random setting available
A/D converter	16bit, Max. 100 times/sec
D/A converter	12bit
Zero variation	within 0.5μV/℃
Sensitivity variation	within0.01%/℃
Voltage output	DC 0~10V (4~20mA: in accordance with customer request)
Usage temperature range	-10℃ ~ 60℃
Humidity	less than 80% RH (no dew condensation)
Power source used	220V 50/60Hz (110V available by internal operation)	220V 50/60Hz (110V available by internal operation)
Relay in/output		ㆍUpper and lower limit comparison output ㆍ4 input /4 output relay (type digital) ㆍContact capacity : AC 250V 5A ㆍRelay lifetime: more than 5,000,000times
Network		RS-232C
Options		ㆍBCD Paralle out (OP-01) ㆍRS485 (OP-02) ㆍDAC ANALOG OUT (OP-03)

Additional information

Model / Part No.	DGTP, DGTPAN, DGTPPB-1
Description	Indicator for panel mounting with 4 IN and 6 OUT. 5-key keypad, LED display, and standard weighing program., Indicator for panel mounting with 4 IN, 6 OUT, analogue output. 5-key keypad, LED display, and standard weighing program., Indicator for panel mounting with 4 IN, 6 OUT, Profibus. 5-key keypad, LED display, and standard weighing program.
