MAIN FEATURES

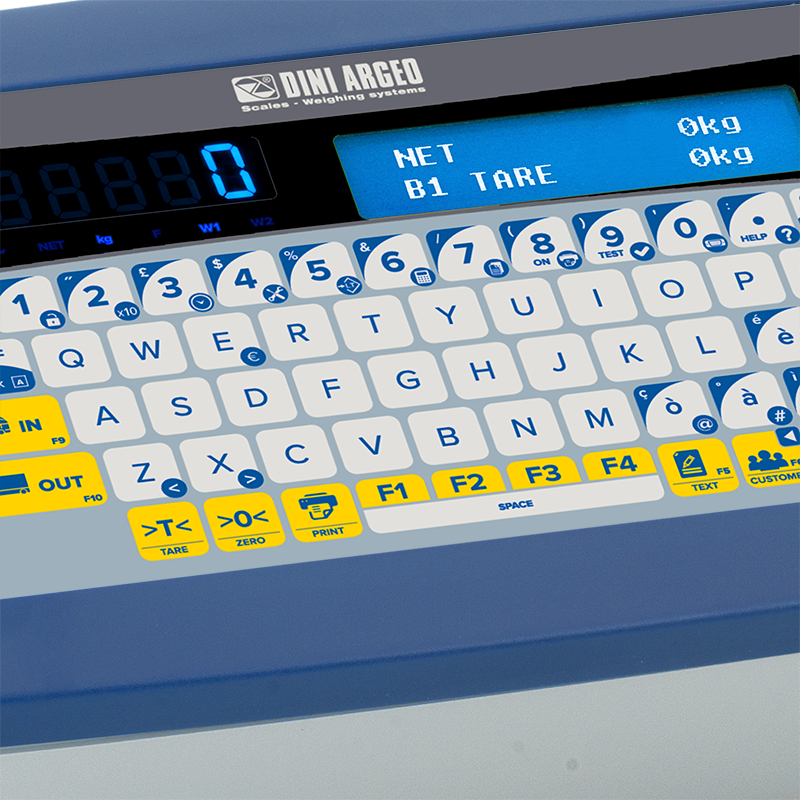

• 59-key QWERTY and functional alphanumerical waterproof keyboard.
• Highly efficient BLU LED display with digits 15mm high. Configurable screens.
• Blue backlit LCD graphic 25x100mm display.

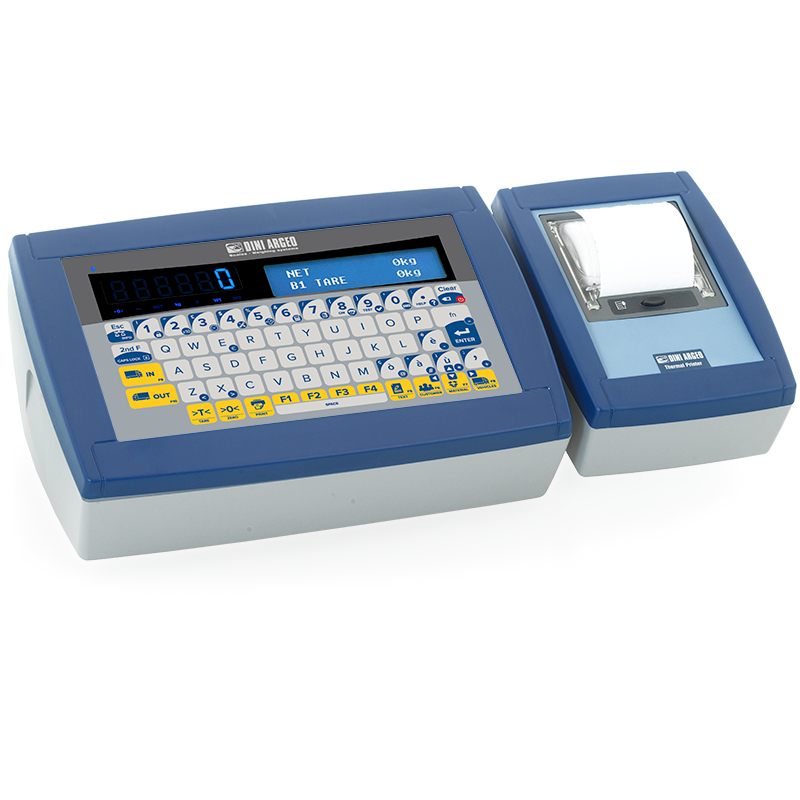

• Easy to clean ABS waterproof IP65 enclosure; resistant to harsh and corrosive environments (IP40 on version with thermal printer).
• Dimensions: 279x124x187mm.
• Suitable for use on the table, column, or wall.
• Real time clock and permanent data storage.
• Fitted alibi memory, integrated on the motherboard.
• Functions available with DINITOOLS utility
  – Configuration, calibration, data entry and print formatting.
  – Recording and filing of all the information on PC.
  – Complete retrieval of the data saved for quick substitution.
  – Instrument calibration with numeric values.
• Selection of the programme language directly in the set-up.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• 2 independent analogue channels for reading of the weight.
• Management of 16 analog load cells of 350 Ohm (45 cells at 1000 Ohm);
  NOTE: for the management of digital load cells for weigh bridges, see the range of touchscreen indicators.
• Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
• Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
• Connectable to printers and labellers with the command drivers.
• 110-240 Vac power supply; built-in rechargeable battery for use in prolonged absence of the power mains.

I/O SECTION

• 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optinal interfaces.
• 1 RS232 serial port (optional RS485), for connection to weight repeater, remote scale, badge reader.
• Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
• 4 optoisolated outputs (optional).
• 2 optoisolated inputs (optional).
• External Profibus interface (optional), for automation management.
• Modbus RTU protocol.
• Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC or tablet.

MAIN CERTIFICATIONS

• EU Type Examination Certificate (45501:2015)
• OIML R76
• Australian legal for trade certificate of approval (NMI S788)
